Model #59667272790 KENMORE Bottom-Mount Refrigerator

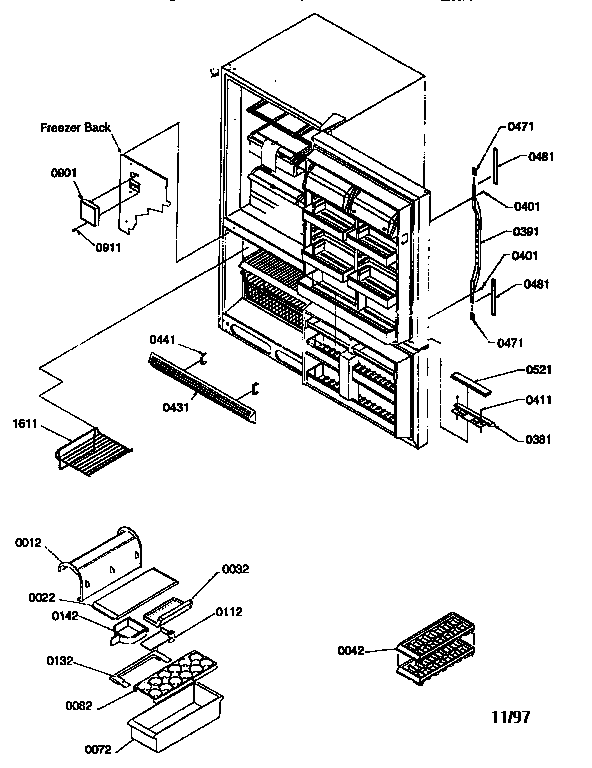

  • Door Handles And Accessories
    3 Results
  • Controls And Light Covers
    3 Results
  • Evaporator And Freezer Control Assembly
    3 Results
  • Shelving Assemblies
    3 Results
  • Cabinet Back
    3 Results
  • Machine Compartment Assembly
    3 Results
  • Insulation And Roller Assembly
    3 Results
  • Light Switches And Drain Funnel
    3 Results
  • Door Assemblies
    3 Results
  • Ice Maker Assembly
    3 Results
Find part by diagram >

Error Codes

Error Code:

Condition:

Check/Repair:

Question and Answers

Q:

596.67272790 Fridge loud, not cold, running constantly 596.67272790

A:

Thanks for the inquiry and for using SearsPartsDirect.com.
Sorry to hear of the issue you're having with the Kenmore refrigerator, I know how frustrating that is to have occur.

You've done the preliminary checks we would recommend to start with by cleaning the coils and checking the door seals.
If the unit is running all the time, then it is not a defrost problem because the unit shuts down during defrost, the control would also shut the condenser unit down, and if it were the problem you should notice short run times of the compressor.
I am suspecting that the compressor is low on refrigerant and the compressor either needs to be serviced or the refrigerator itself may need replacement. This sounds like an issue within the sealed compressor system.
I would recommend having the unit serviced and checked by a technician who has the proper gauges to check the refrigerant and compressor. If you would feel more confident have a Sears Home Service technician help assist with the diagnosis/repair, you can call 1-800-349-5071, or click here to be directed to the page to set up service.
Hope this helps and thanks for using SearsPartsDirect.com. We appreciate your business.

Read More
Jeff Wallace Sr -
Sears Technician
June 21, 2014
Q:

Kenmore 22' bottom-mount refrigerator model #59667272790 not getting cold and freezing over in freezer and back 59667272790 Kenmore 22' bottom-mount refrigerator

A:

Thanks for the inquiry and for using SearsPartsDirect.com.
I am sorry to hear of the defrost issues you are having with the Kenmore refrigerator, I know how frustrating that is to have occur.
This is definitely a defrosting issue, and the defrost circuit is comprised of three different parts, the defrost timer, heater, and thermostat.
In order to identify which is at fault, they will need to be tested with a multimeter and checked for continuity. Unless you have experience testing electrical components with a meter, we recommend having a service technician assist with the diagnosis.
If you would feel more confident have a Sears Home Service technician help assist with the diagnosis/repair, you can call 1-800-349-5071, or click here to be directed to the page to set up service.
For convenience, I have listed all three components below as blue links that you may click on to be directed to the PartsDirect page to view and purchase whichever is needed once the continuity checks have been made.

Defrost Timer for Model 59667272790

Defrost Thermostat for Model 59667272790

Defrost Heater for Model 59667272790

Hope this helps out and thanks for using SearsPartsDirect.com. We appreciate your business.

Read More
Jeff Wallace Sr -
Sears Technician
May 31, 2014
Q:

Freezer is cold (30) but not enough to freeze food. model 596.67272790 has been this way for about a month. what how do I test/trouble? Thanks.

A:

When it comes to your appliance not working properly it can be really frustrating. Owners manuals are the best thing to have when it comes to troubleshooting your appliance. While you are waiting on an expert to answer your question, I was searching the Manage My Life website and found your owners manual. I have attached the link below. Have a nice day!

Read More
Dezeray -
June 04, 2012
A:

Thank you for your question. I'm sorry you are having this problem with Kenmore Refrigerator 59667272790. If the fridge is running all the time and if there is no heavy frost accumulation on the back wall in the freezer, this will lead to a seal system problem. A technician will be required to make this type of check and repair. I'm listing a site you can access, to have a tech come out. Here is a link for the website: Sears Home Services . It the fridge seems to be cycling off periodically, it could be a defective thermostat. In this case, turn the thermostat to a colder setting. If it corrects the problem, you can leave the thermostat on this setting or if you're not comfortable with it, then you can get a replacement thermostat. I hope this will help you.

Read More
Scott D -
Sears Technician
August 06, 2012
A:

Hello, I have been trying to fix the same problem (freezer not cold enough) it is -2c and the fridge is OK +4c. Evaporators fans are working. no condensation is there at all, no door leak at all. compressors and all fans work but there is no cold air coming out of the freezer vent. Thermostat seems to be OK because fans/ compressors work. Can anyone advise please. AJ

Read More
AJ -
April 05, 2014
See more answers
