Craftsman
Rotary Tool

Model # 32023465 Official Craftsman multi-tool

Here are the diagrams and repair parts for Official Craftsman 32023465 multi-tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Scraper 3810453000
#40

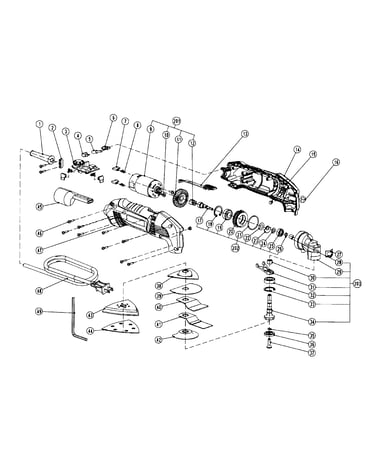

Multi-tool parts diagram

Scraper

Part #3810453000

The manufacturer no longer makes this part, and there's no substitute part

Insert, Ru 3121003000
#15

Multi-tool parts diagram

Insert, ru

Part #3121003000

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly 2823033000
#202

Multi-tool parts diagram

Shaft assembly

Part #2823033000

The manufacturer no longer makes this part, and there's no substitute part

Cover, L 3125548000
#6

Multi-tool parts diagram

Cover, l

Part #3125548000

The manufacturer no longer makes this part, and there's no substitute part

V-adapter 3124550000
#45

Multi-tool parts diagram

V-adapter

Part #3124550000

The manufacturer no longer makes this part, and there's no substitute part

Actuator 3125478000
#13

Multi-tool parts diagram

Actuator

Part #3125478000

The manufacturer no longer makes this part, and there's no substitute part

Multi-tool Motor 2823032000
#201

Multi-tool parts diagram

Multi-tool motor

Part #2823032000

The manufacturer no longer makes this part, and there's no substitute part

Multi-tool Washer 5650300000
#36

Multi-tool parts diagram

Multi-tool washer

Part #5650300000

The manufacturer no longer makes this part, and there's no substitute part

Dust Cover 3125185000
#27

Multi-tool parts diagram

Dust cover

Part #3125185000

The manufacturer no longer makes this part, and there's no substitute part

Cover, R 3125549000
#4

Multi-tool parts diagram

Cover, r

Part #3125549000

The manufacturer no longer makes this part, and there's no substitute part
