Model # 2538782590 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538782590 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

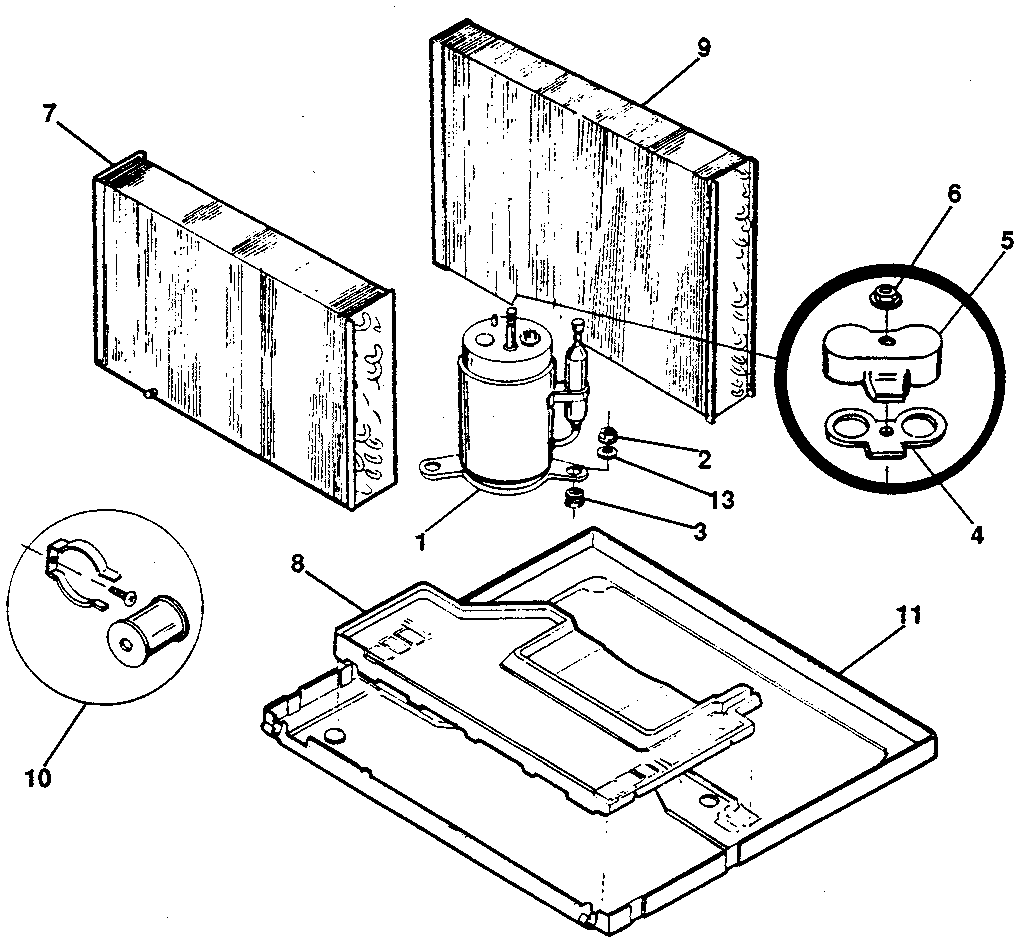

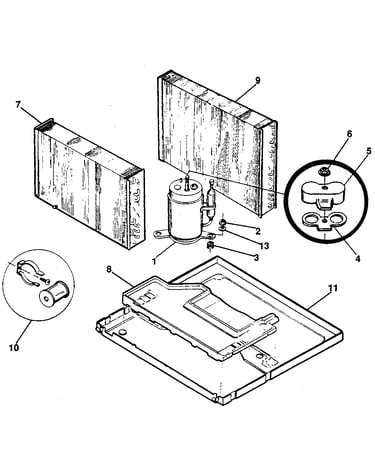

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 103 parts |

#12

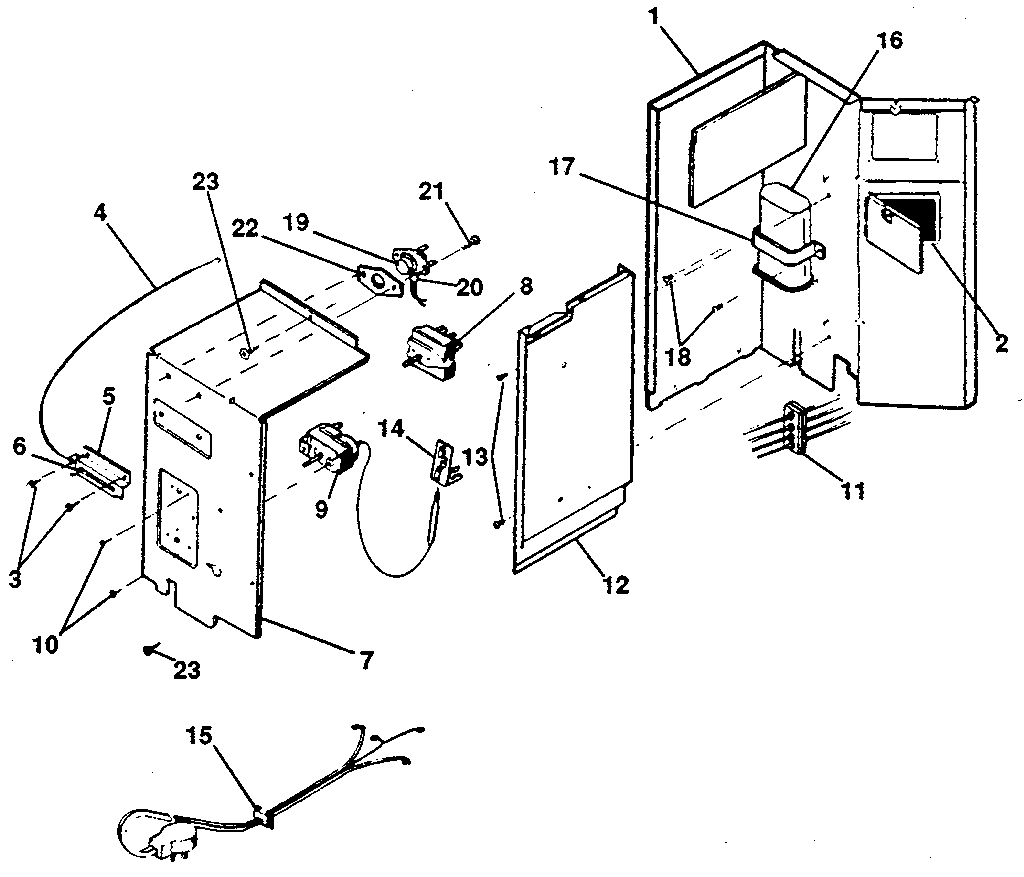

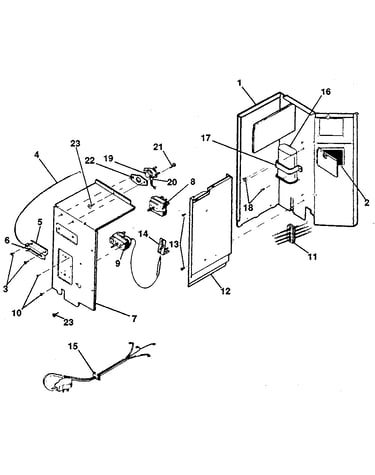

Electrical system and unit diagram

Divider

Part #3015321

This item is not returnable

$4.79

In Stock

Qty

#NI

All parts diagram

Filter

Part #000265301

Replaced by #5300265301

$110.08

In Stock

Qty

Screw

Part #3015427

Replaced by #134178901

$14.69

In Stock

Qty

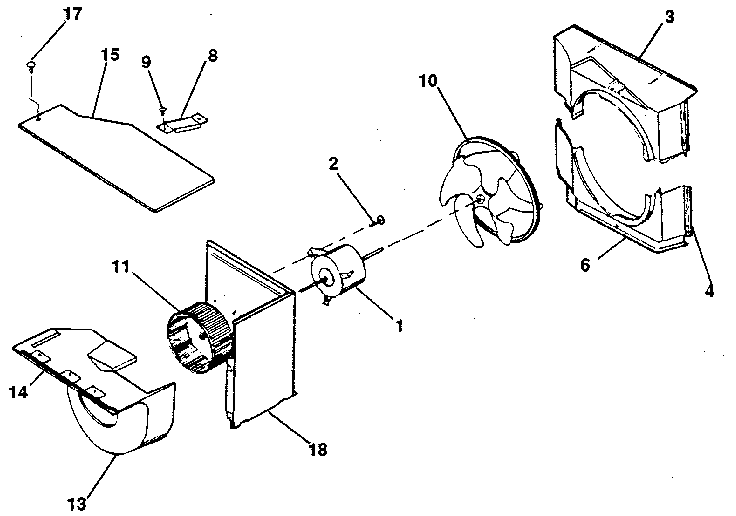

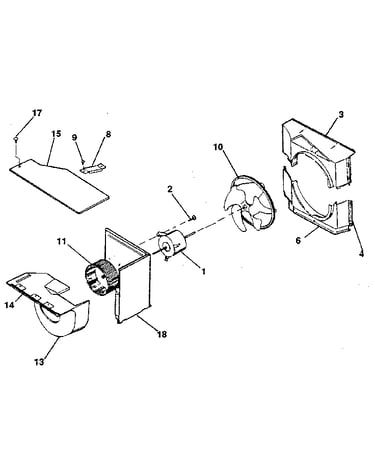

Air handling diagram

Screw

Part #3015294

Replaced by #5303015294

This item is not returnable

$2.34

In Stock

Qty

#12

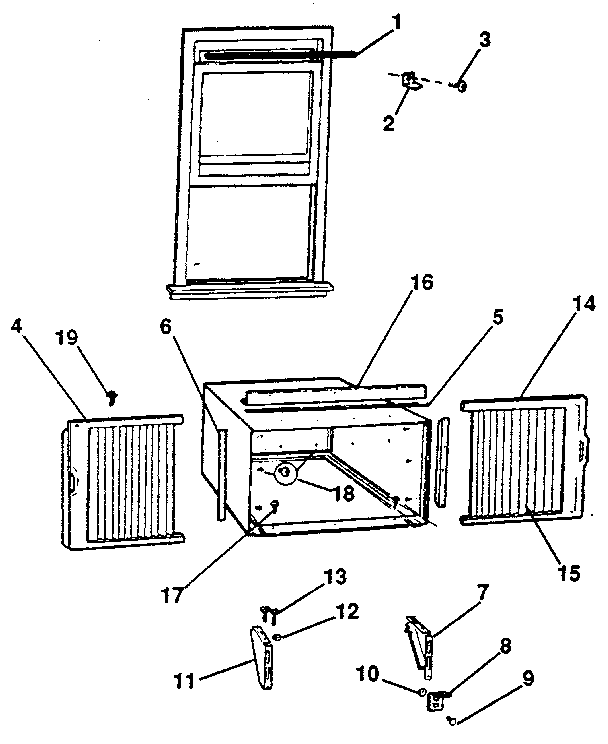

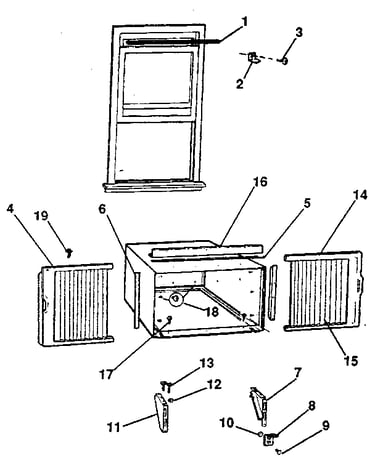

Window mounting & accessories diagram

Nut-hex

Part #3017023

Replaced by #316205500

This item is not returnable

$11.20

In Stock

Qty

#15B

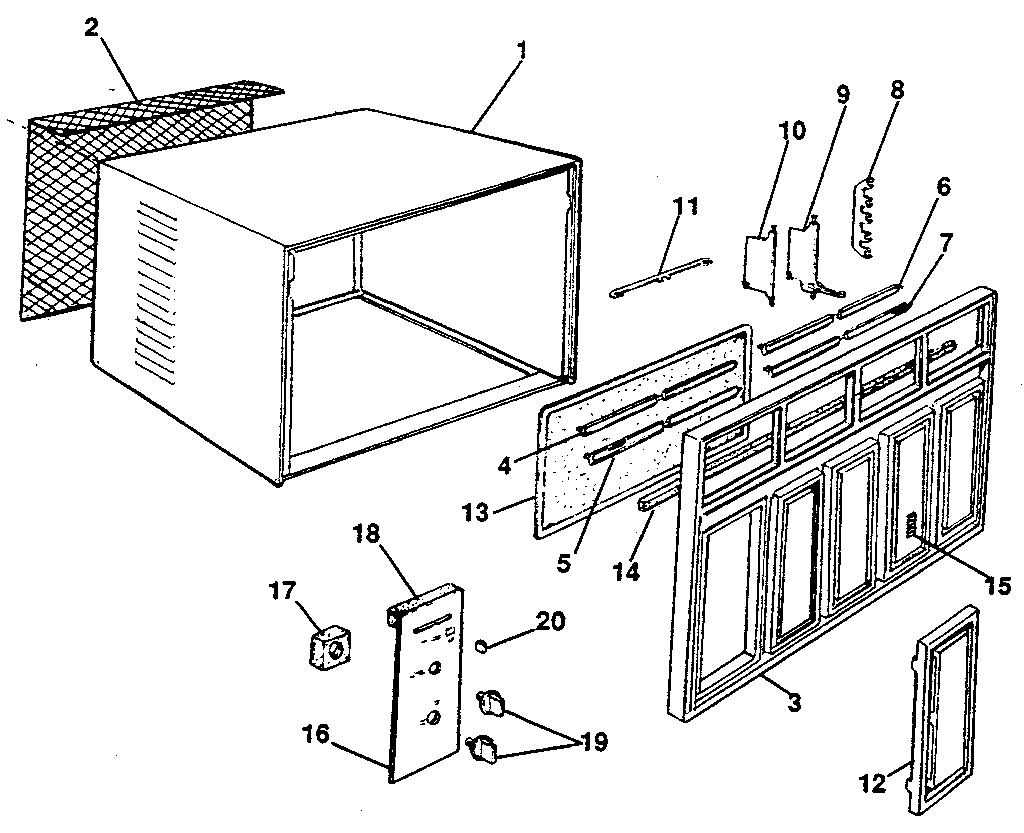

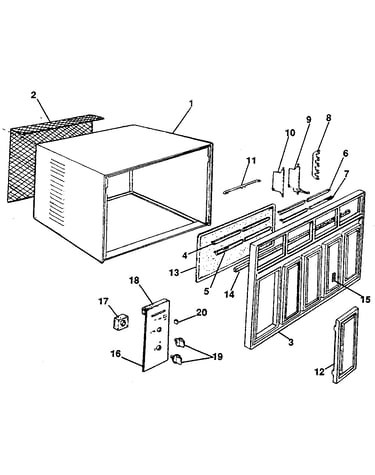

Cabinet and front panel diagram

Washer

Part #521460

Replaced by #3202330

This item is not returnable

$2.29

In Stock

Qty

#NI

All parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

This item is not returnable

$5.80

In Stock

Qty

#15C

Cabinet and front panel diagram

Push nut

Part #521461

Replaced by #5300521461

This item is not returnable

$2.16

In Stock

Qty

Air handling diagram

Motor

Part #3017557

Replaced by #309630608

$376.68

In Stock

Qty

#14

Cabinet and front panel diagram

Seal

Part #3017299

The manufacturer no longer makes this part, and there's no substitute part
