Model # IM200F-18 Official Paslode cordless finish nailer

Here are the diagrams and repair parts for Official Paslode IM200F-18 cordless finish nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Air Dam 900700
#23

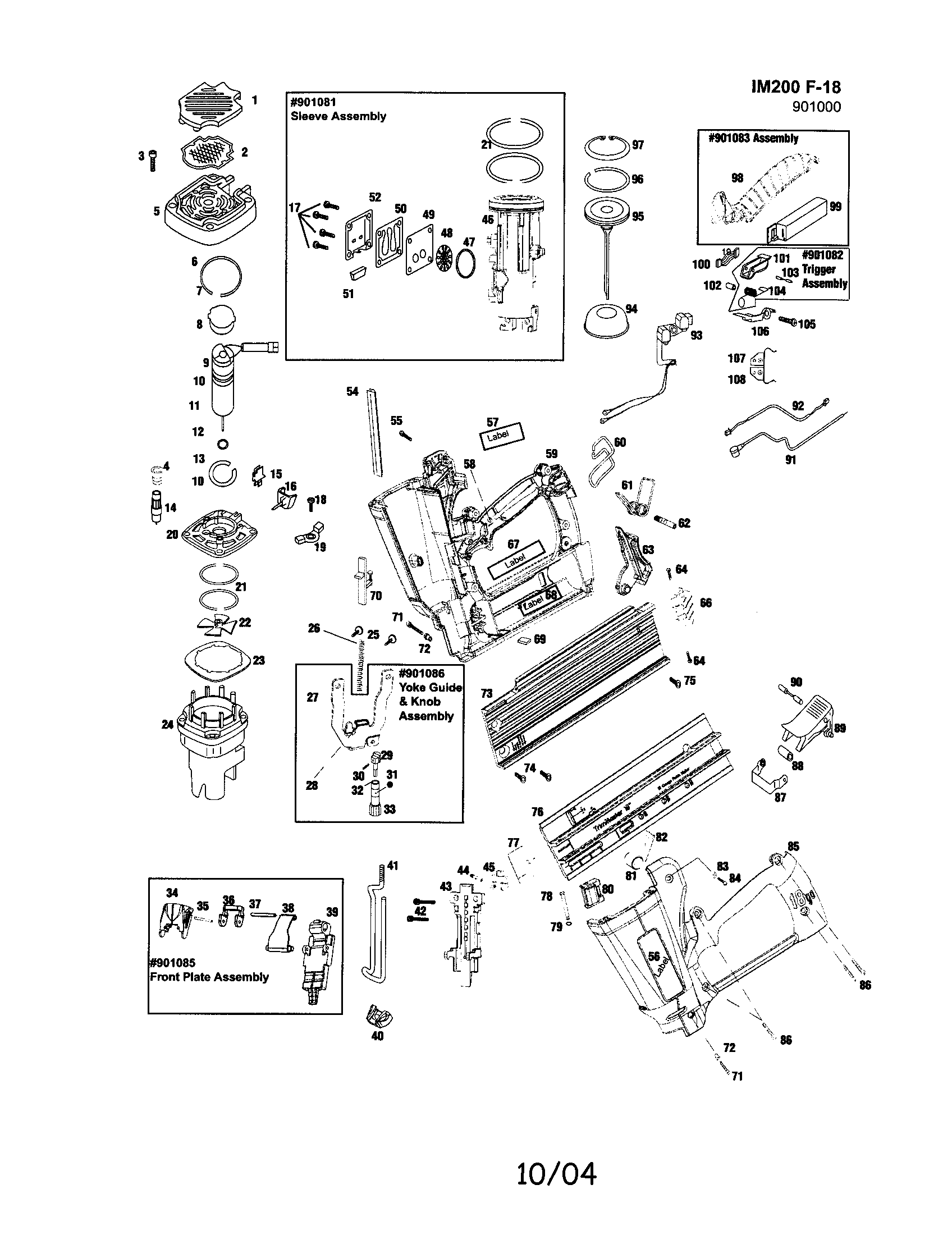

Nailer diagram

Air dam

Part #900700

The manufacturer no longer makes this part, and there's no substitute part

Nailer Position Probe 901007
#41

Nailer diagram

Nailer position probe

Part #901007

The manufacturer no longer makes this part, and there's no substitute part

Pivot Pin 900353
#62

Nailer diagram

Pivot pin

Part #900353

The manufacturer no longer makes this part, and there's no substitute part

Piston Ring 901040
#96

Nailer diagram

Piston ring

Part #901040

The manufacturer no longer makes this part, and there's no substitute part

Screw 900746
#25

Nailer diagram

Screw

Part #900746

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug 900765
#91

Nailer diagram

Spark plug

Part #900765

The manufacturer no longer makes this part, and there's no substitute part

Magazine Wear Strip Assembly 901084
#73

Nailer diagram

Magazine wear strip assembly

Part #901084

The manufacturer no longer makes this part, and there's no substitute part

Yoke Guide 901029
#29

Nailer diagram

Yoke guide

Part #901029

The manufacturer no longer makes this part, and there's no substitute part

Model Label 901060
#57

Nailer diagram

Model label

Part #901060

The manufacturer no longer makes this part, and there's no substitute part

Motor Mnt 900624
#11

Nailer diagram

Motor mnt

Part #900624

The manufacturer no longer makes this part, and there's no substitute part
