Craftsman
Reciprocating Saw

Model # 315172281 Official Craftsman sabre saw

Here are the diagrams and repair parts for Official Craftsman 315172281 sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

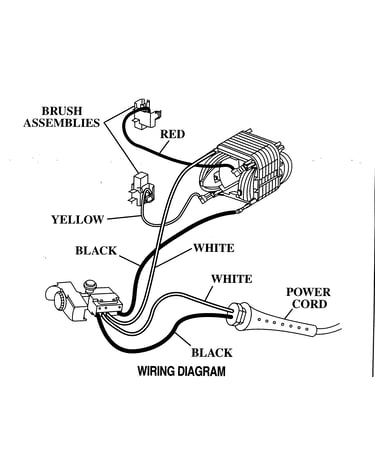

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Switch 974490-001
#8

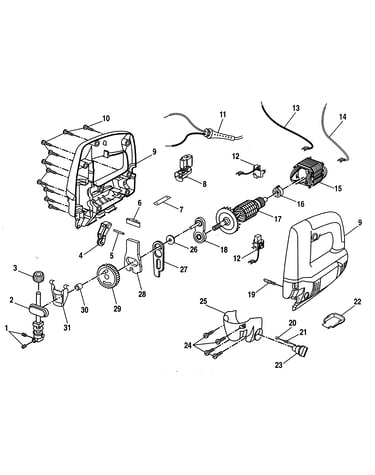

Motor assy diagram

Switch

Part #974490-001

The manufacturer no longer makes this part, and there's no substitute part

Sabre Saw Base Assembly 974308-003
#5

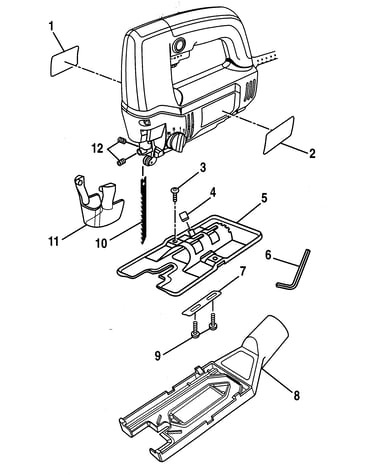

Housing assy diagram

Sabre saw base assembly

Part #974308-003

The manufacturer no longer makes this part, and there's no substitute part

Spring 970627-001
#21

Motor assy diagram

Spring

Part #970627-001

The manufacturer no longer makes this part, and there's no substitute part

Button 970700-001
#20

Motor assy diagram

Button

Part #970700-001

The manufacturer no longer makes this part, and there's no substitute part

Plate 974298-002
#27

Motor assy diagram

Plate

Part #974298-002

The manufacturer no longer makes this part, and there's no substitute part

Saw Bar As 974301-001
#2

Motor assy diagram

Saw bar as

Part #974301-001

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 990496-018
#11

Motor assy diagram

Ac cord

Part #990496-018

The manufacturer no longer makes this part, and there's no substitute part

Sabre Saw Screw 974321-002
#9

Housing assy diagram

Sabre saw screw

Part #974321-002

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 975233-001
#29

Motor assy diagram

Gear assembly

Part #975233-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing Bl 975232-000
#18

Motor assy diagram

Bearing bl

Part #975232-000

The manufacturer no longer makes this part, and there's no substitute part
