Waxcoa
Polisher

Model # M4015 Official Waxcoa buffer/polisher system

Here are the diagrams and repair parts for Official Waxcoa M4015 buffer/polisher system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Pad 4018
#12

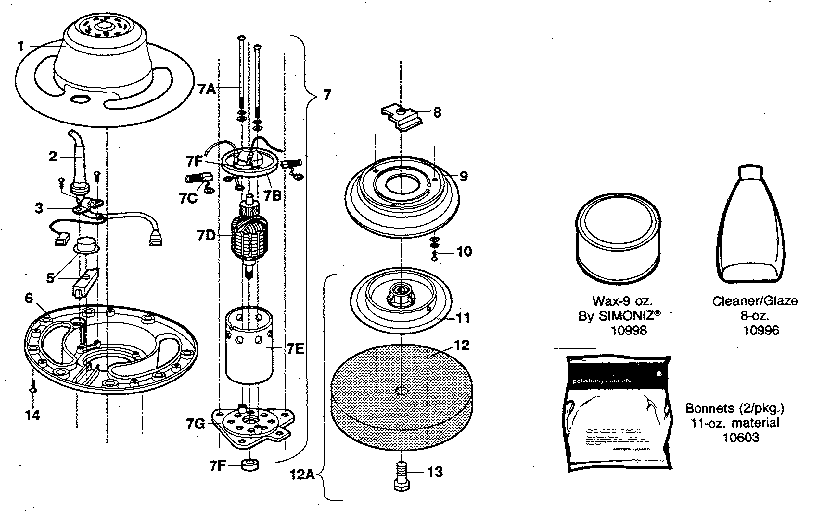

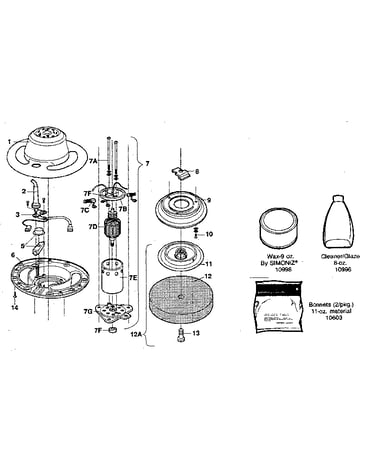

Unit parts diagram

Pad

Part #4018

The manufacturer no longer makes this part, and there's no substitute part

Armature ARM400
#7D

Unit parts diagram

Armature

Part #ARM400

The manufacturer no longer makes this part, and there's no substitute part

Screw SCA003
#10

Unit parts diagram

Screw

Part #SCA003

The manufacturer no longer makes this part, and there's no substitute part

Bearing BRG001
#7H

Unit parts diagram

Bearing

Part #BRG001

The manufacturer no longer makes this part, and there's no substitute part

Switch SWH400
#5

Unit parts diagram

Switch

Part #SWH400

The manufacturer no longer makes this part, and there's no substitute part

Rectifie Asm MRA400
#7F

Unit parts diagram

Rectifie asm

Part #MRA400

The manufacturer no longer makes this part, and there's no substitute part

Holder Assembly PHA4018
#12A

Unit parts diagram

Holder assembly

Part #PHA4018

The manufacturer no longer makes this part, and there's no substitute part

Mag Yoke Asm MYA400
#7E

Unit parts diagram

Mag yoke asm

Part #MYA400

The manufacturer no longer makes this part, and there's no substitute part

Guard PHG405
#9

Unit parts diagram

Guard

Part #PHG405

The manufacturer no longer makes this part, and there's no substitute part

Bottom PHB405
#6

Unit parts diagram

Bottom

Part #PHB405

The manufacturer no longer makes this part, and there's no substitute part
