Bosch
Warming Drawer

Model # HWD306UC/01 Official Bosch warming drawer

Here are the diagrams and repair parts for Official Bosch HWD306UC-01 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Switch 189432
#121

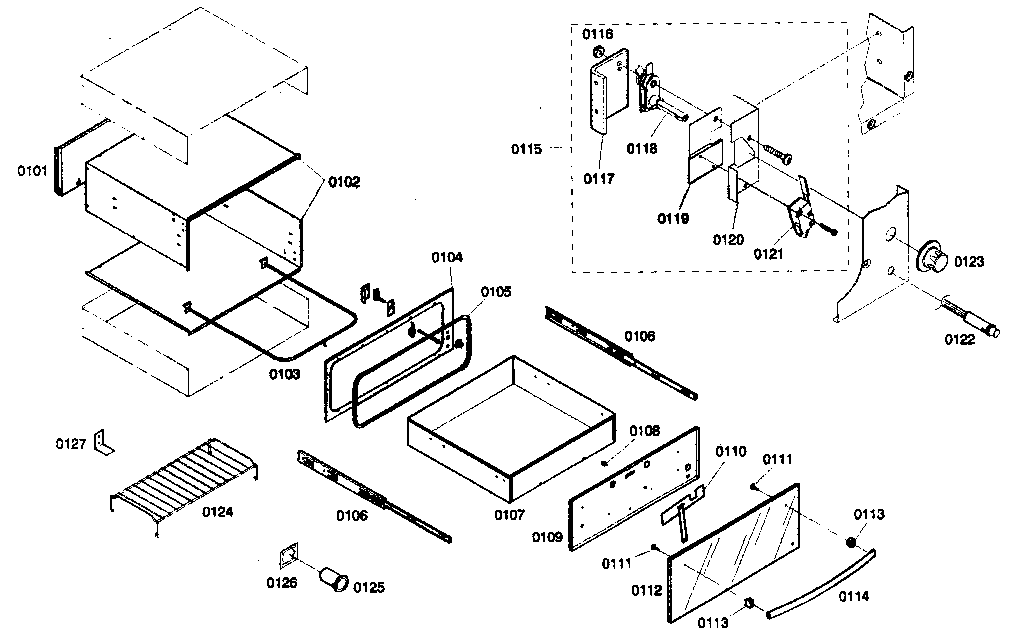

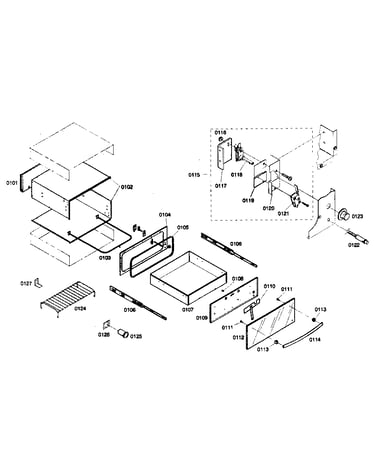

Warming drawer diagram

Switch

Part #189432

$64.33
In Stock
End Cap 184596
#113

Warming drawer diagram

End cap

Part #184596

Replaced by #00615353

?
Manufacturer substitution
This part replaces 184596. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Bracket 189450
#127

Warming drawer diagram

Bracket

Part #189450

The manufacturer no longer makes this part, and there's no substitute part

Drawer Slide 440843
#106

Warming drawer diagram

Drawer slide

Part #440843

The manufacturer no longer makes this part, and there's no substitute part

Range Knob 189440
#108

Warming drawer diagram

Range knob

Part #189440

The manufacturer no longer makes this part, and there's no substitute part

Wire (black) 189421
#NI

Warming drawer diagram

Wire (black)

Part #189421

The manufacturer no longer makes this part, and there's no substitute part

Ac Power Cord 189424
#NI

Warming drawer diagram

Ac power cord

Part #189424

The manufacturer no longer makes this part, and there's no substitute part

Lens Pilot 189455
#125

Warming drawer diagram

Lens pilot

Part #189455

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 691298
#NI

Warming drawer diagram

Owner's manual

Part #691298

The manufacturer no longer makes this part, and there's no substitute part

Wire,white 189422
#NI

Warming drawer diagram

Wire,white

Part #189422

The manufacturer no longer makes this part, and there's no substitute part
