Model # BDV-E2100 Official Sony dvd home theater system

Here are the diagrams and repair parts for Official Sony BDV-E2100 dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

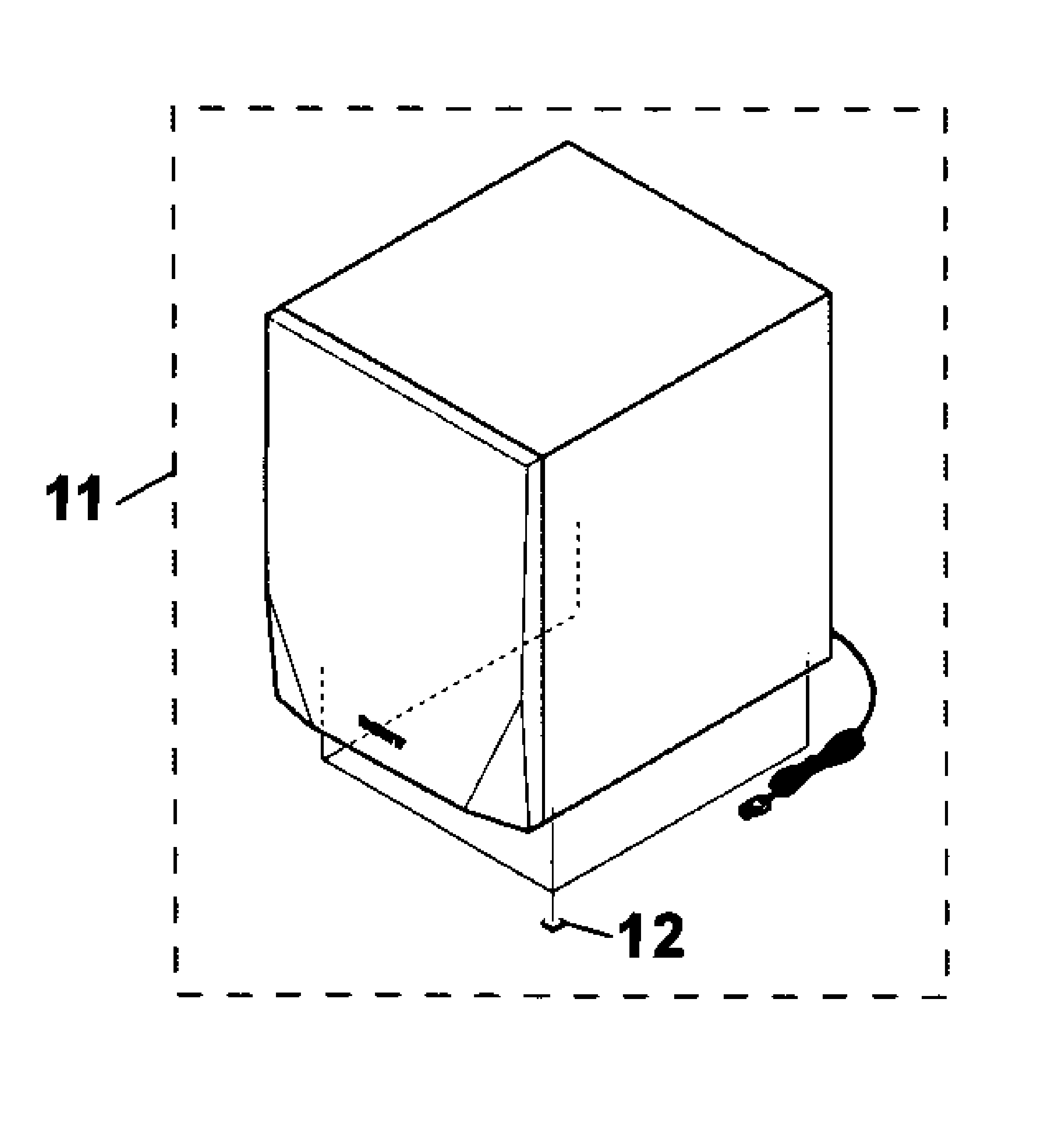

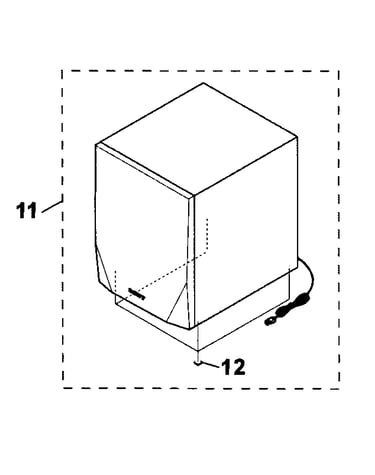

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Speaker A1900319A
#1

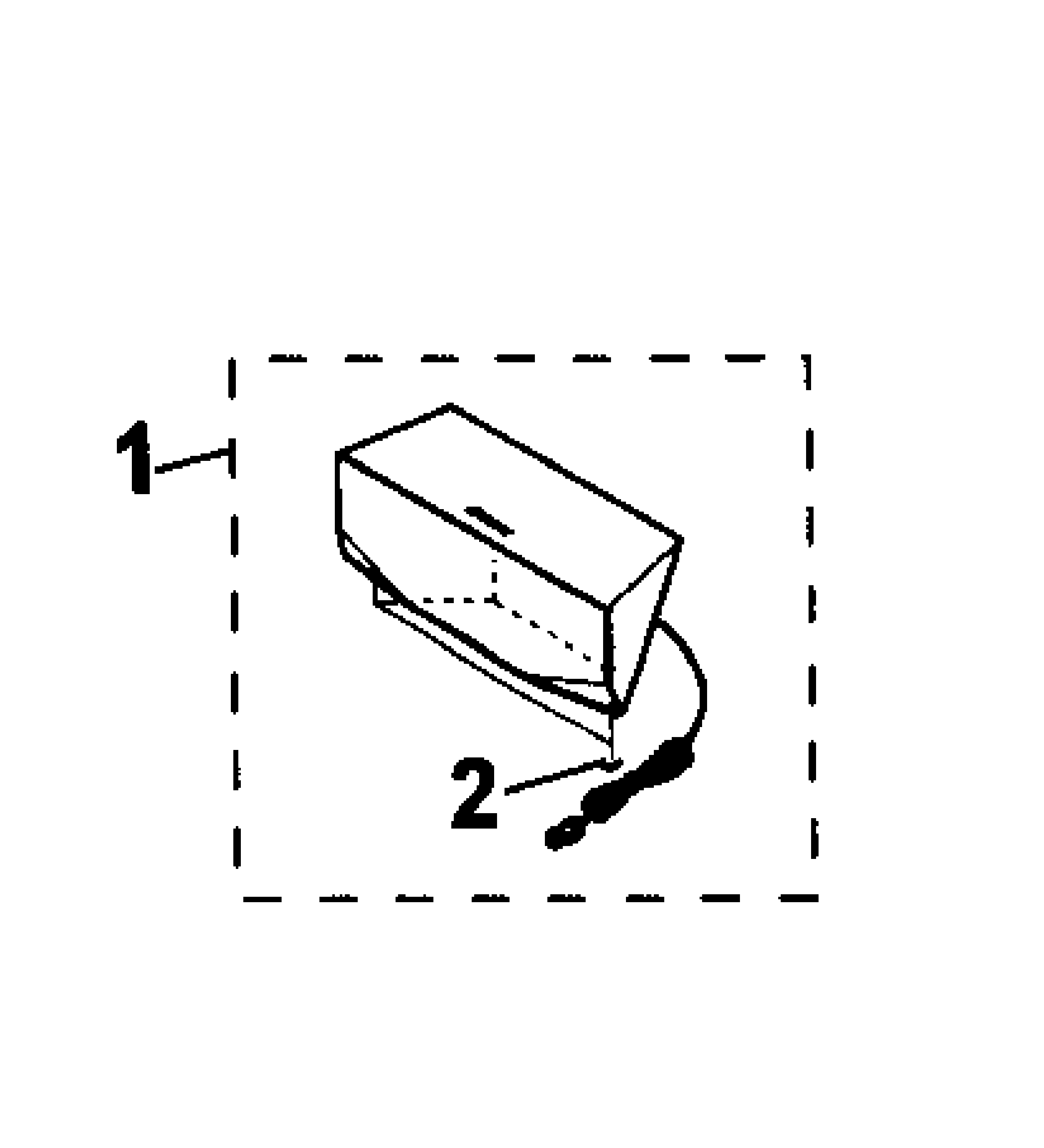

Center speaker diagram

Speaker

Part #A1900319A

Replaced by #A1900319A

?
Manufacturer substitution
This part replaces A1900319A. Substitute parts can look different from the original.
$104.16
In Stock
Screw 234511501
#203

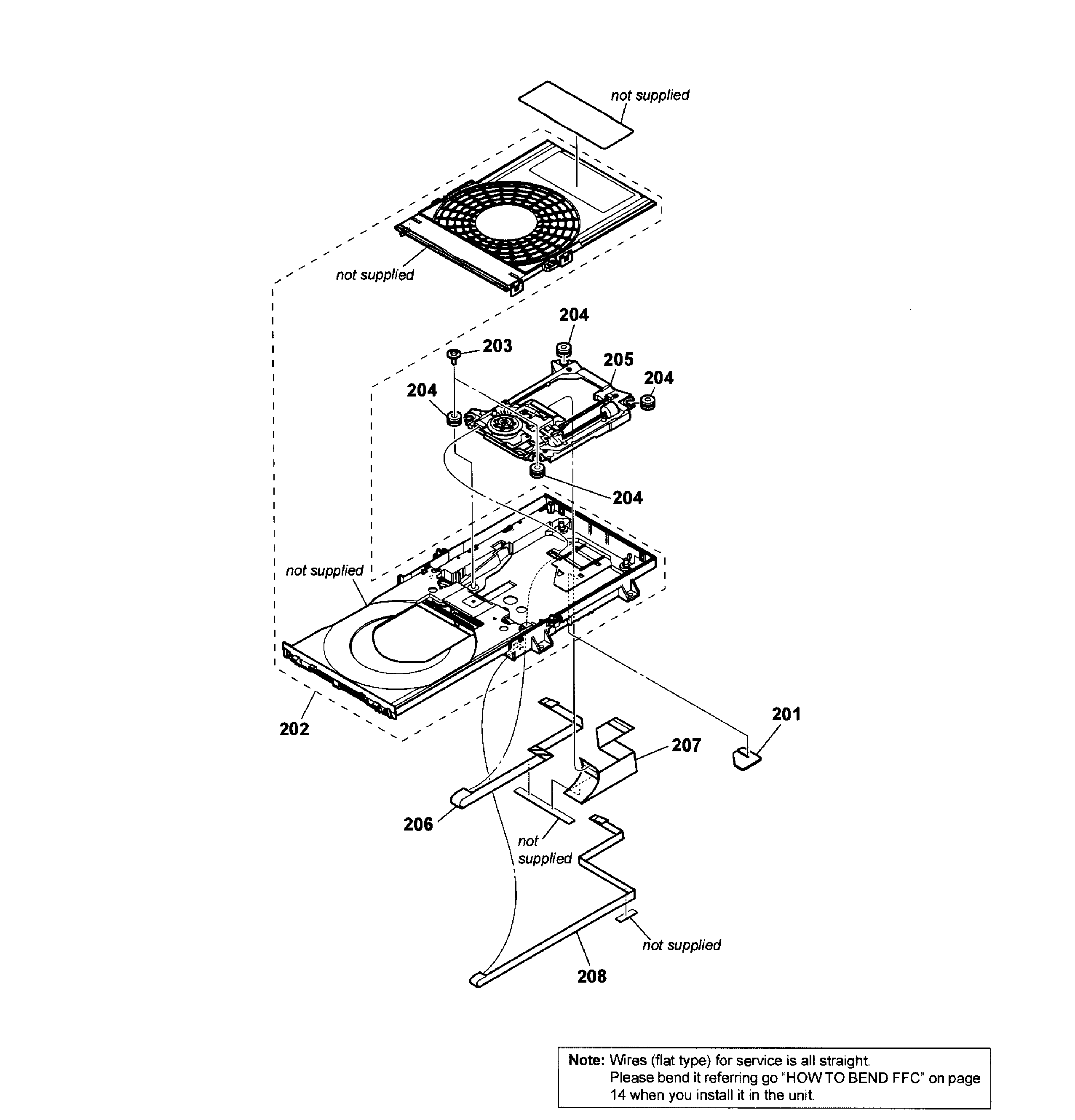

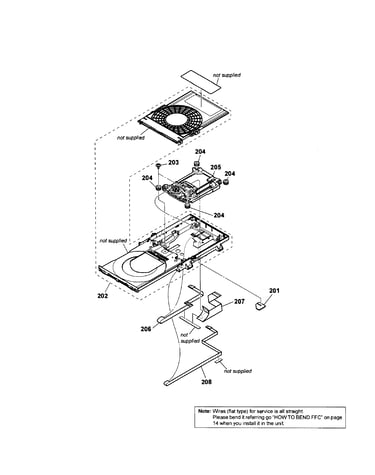

Drive section diagram

Screw

Part #234511501

Replaced by #234511501

?
Manufacturer substitution
This part replaces 234511501. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cable Flat,8p 184637851
#52

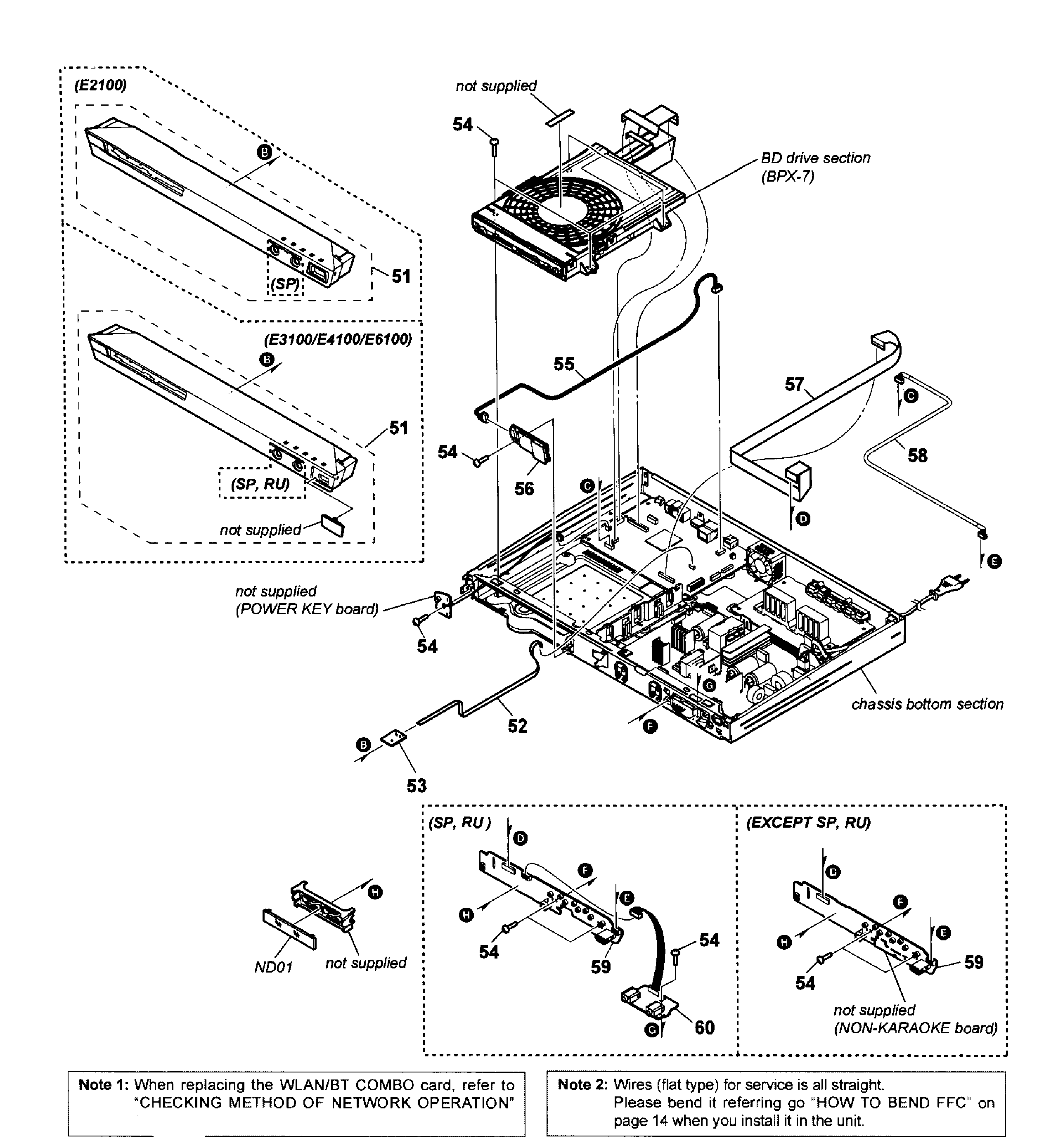

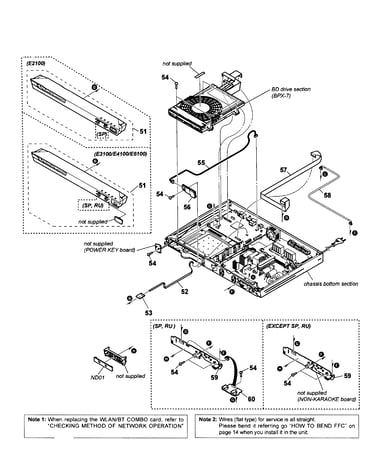

Front panel diagram

Cable flat,8p

Part #184637851

The manufacturer no longer makes this part, and there's no substitute part

Spkr Sur-r A1900318A
#24

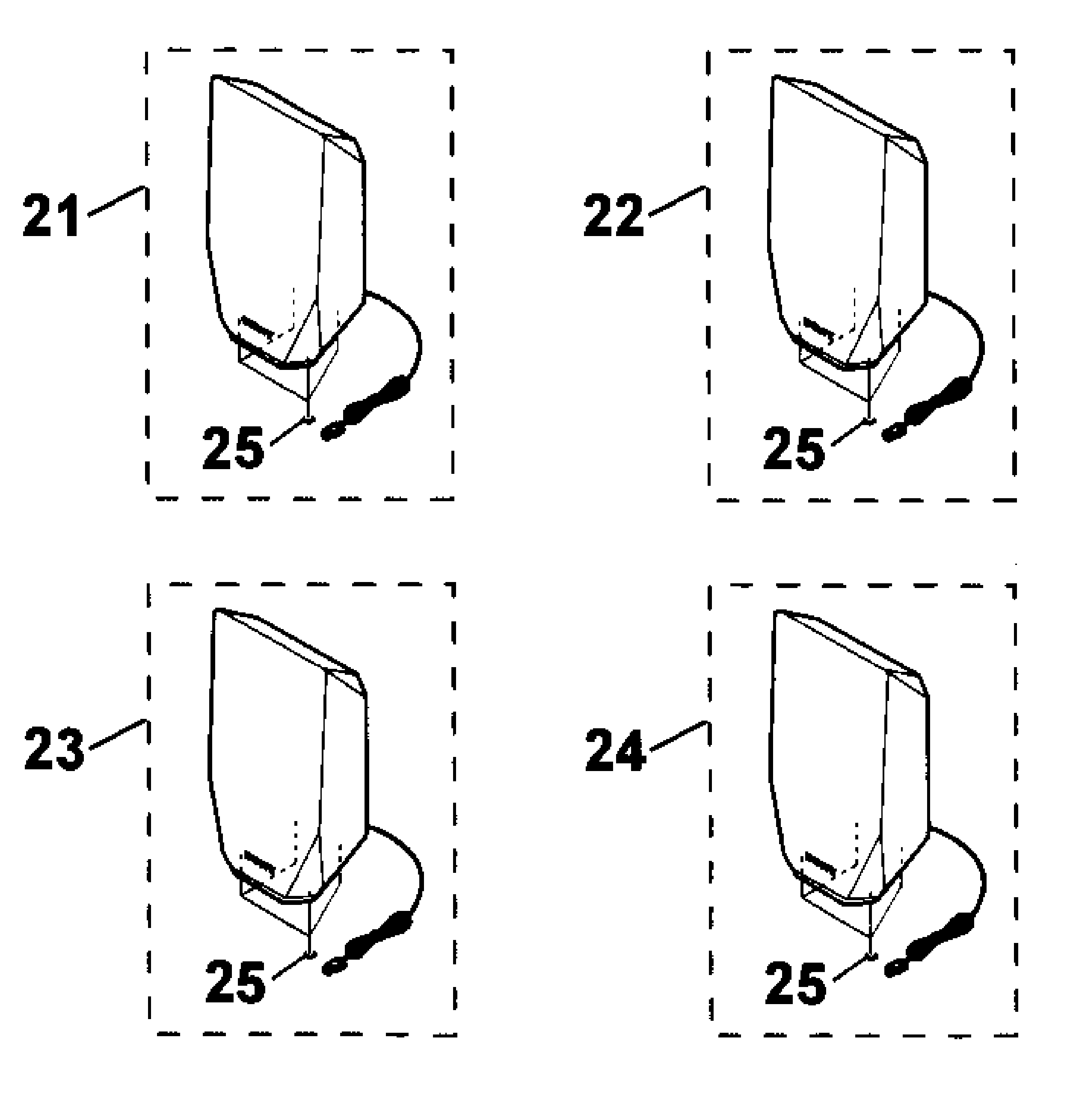

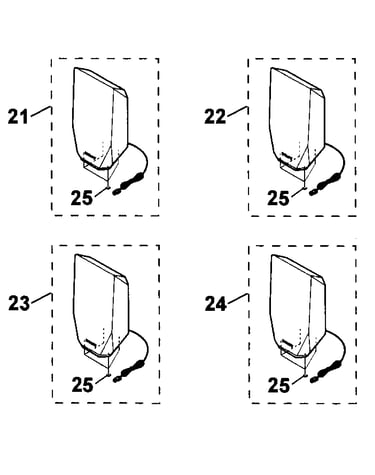

Speaker diagram

Spkr sur-r

Part #A1900318A

Replaced by #A1900318A

?
Manufacturer substitution
This part replaces A1900318A. Substitute parts can look different from the original.
$149.91
In Stock
Speaker A1900317A
#23

Speaker diagram

Speaker

Part #A1900317A

Replaced by #A1900317A

?
Manufacturer substitution
This part replaces A1900317A. Substitute parts can look different from the original.
$149.91
In Stock
Amplifier Pcb A1924824A
#103

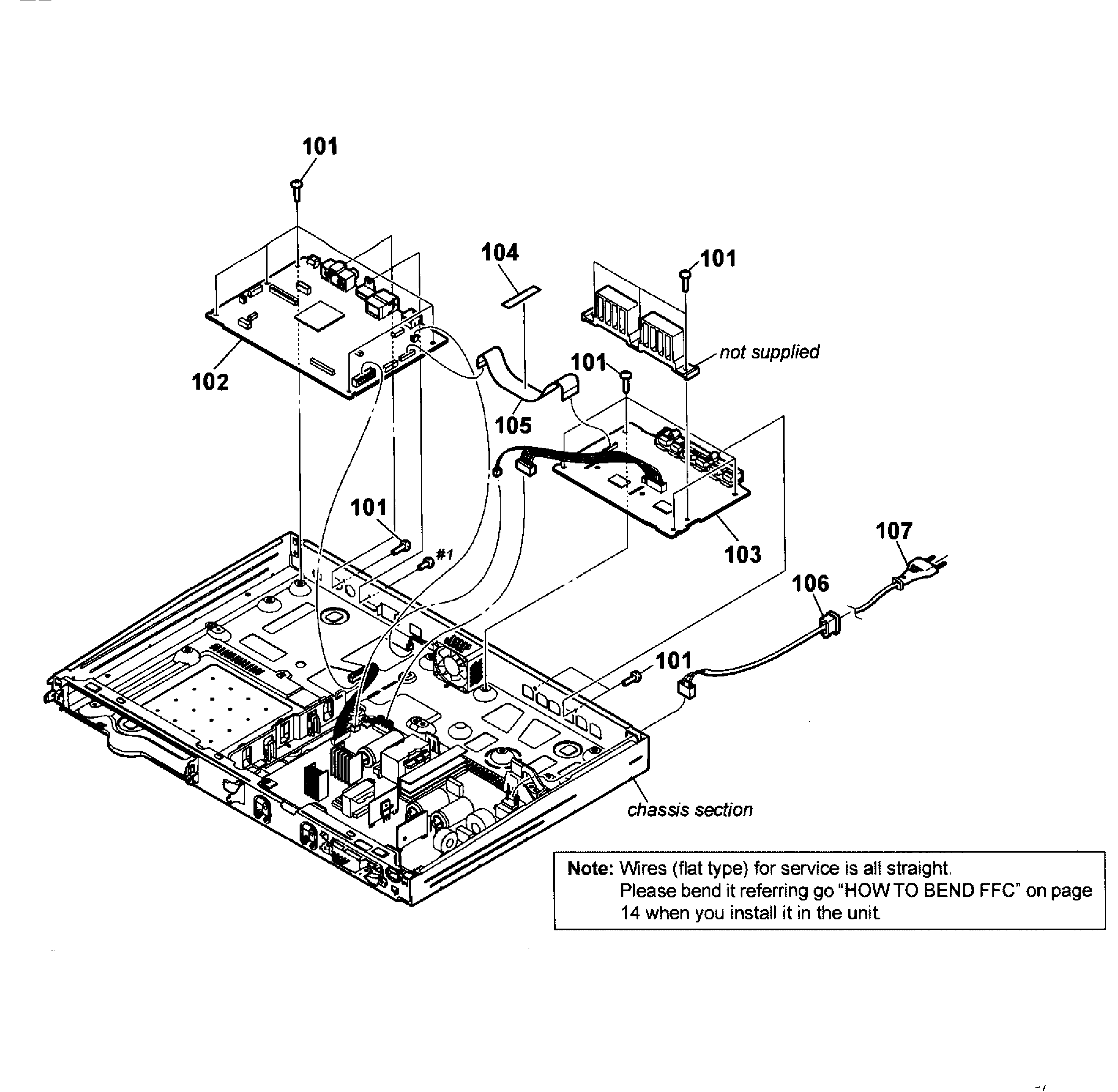

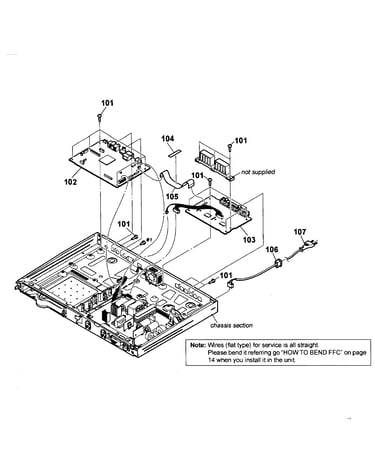

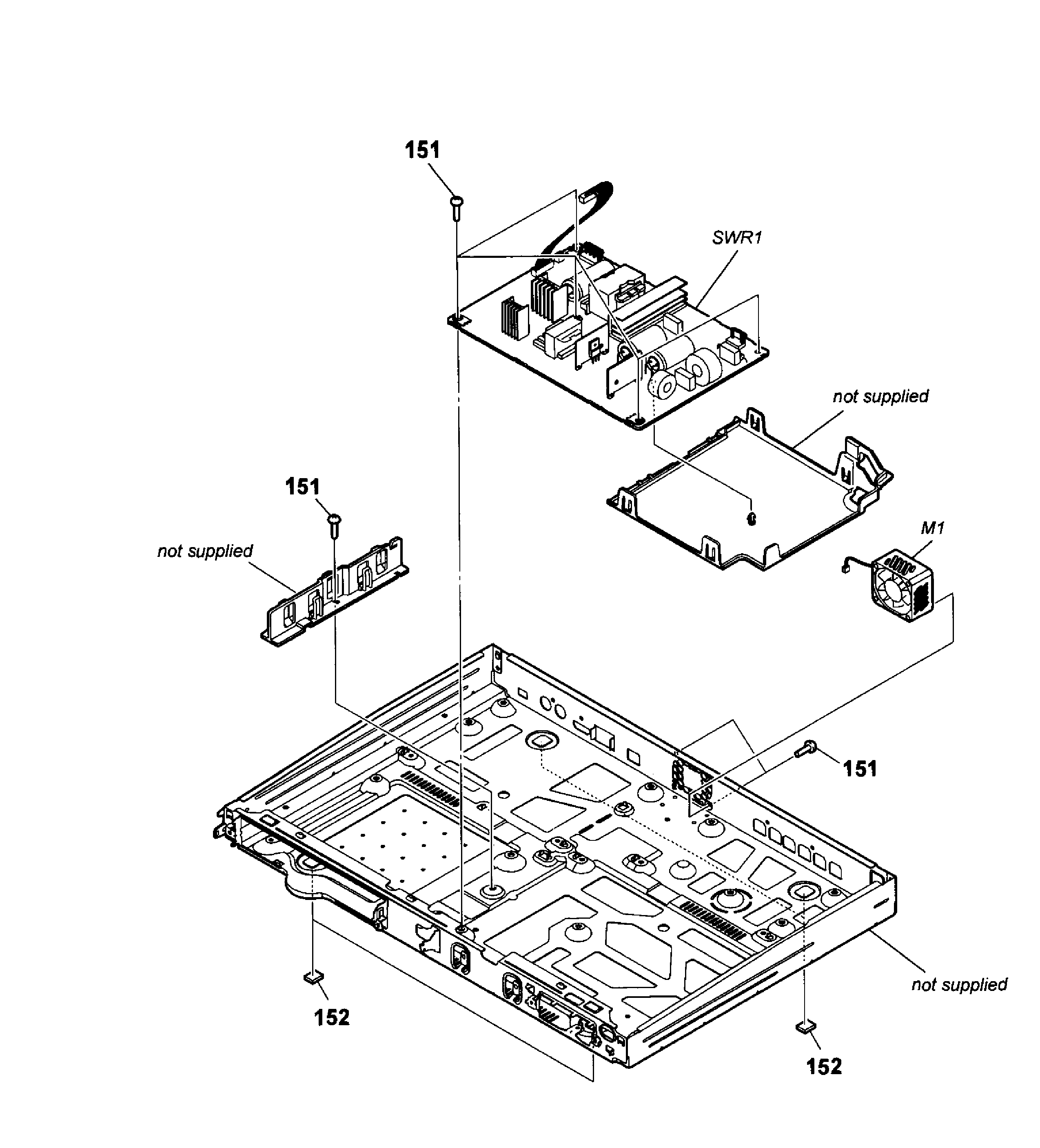

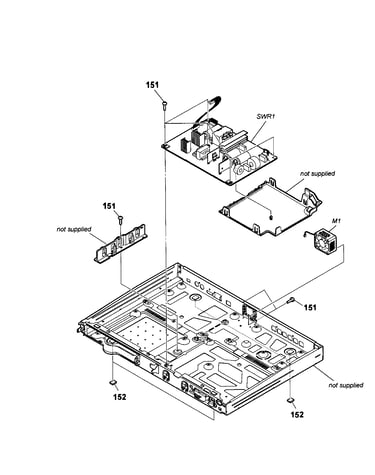

Chassis bottom diagram

Amplifier pcb

Part #A1924824A

The manufacturer no longer makes this part, and there's no substitute part

Loading Fo A1850153C
#202

Drive section diagram

Loading fo

Part #A1850153C

The manufacturer no longer makes this part, and there's no substitute part

Flat Cable 184634861
#208

Drive section diagram

Flat cable

Part #184634861

The manufacturer no longer makes this part, and there's no substitute part

Panel Load X25858041
#3

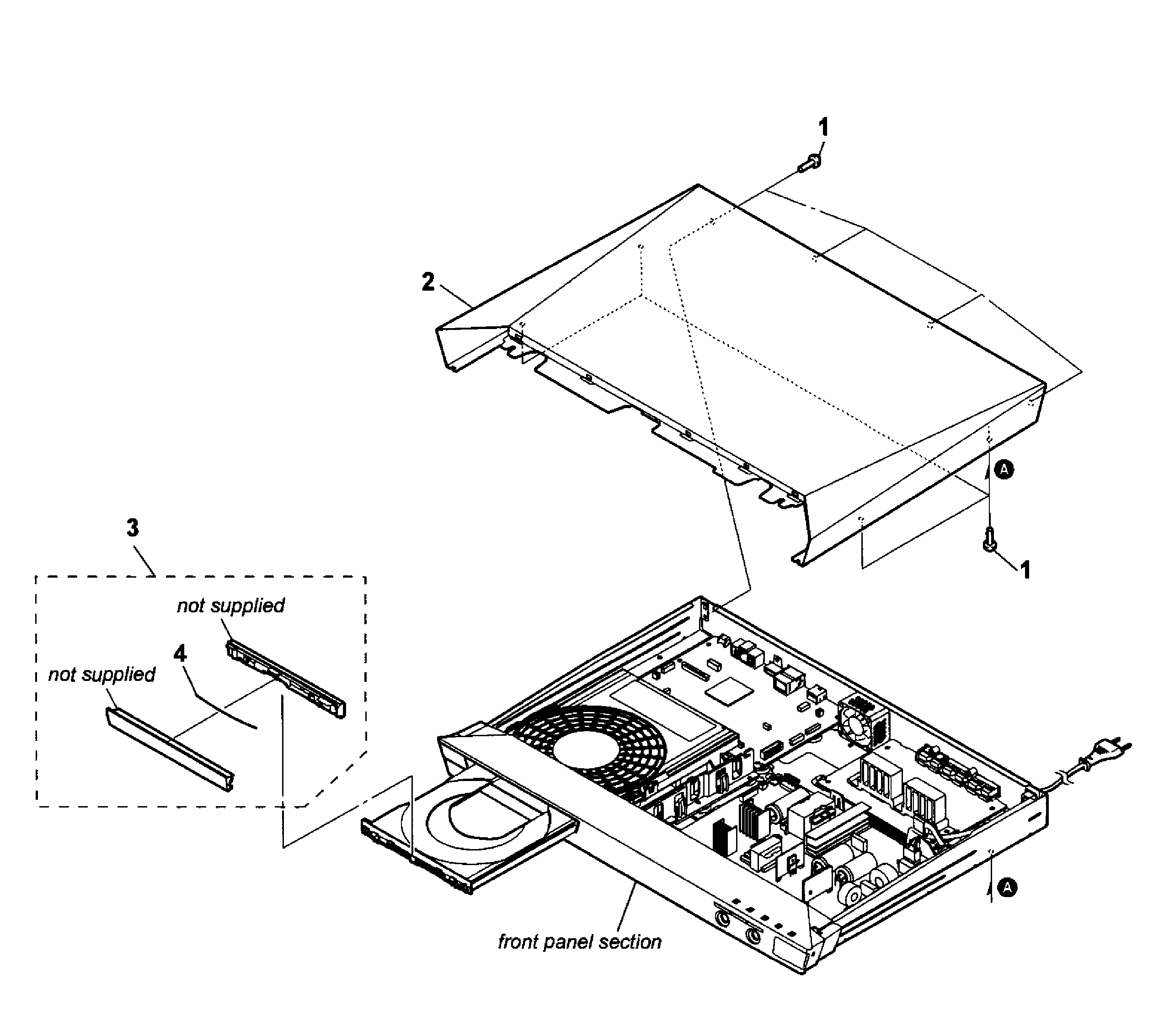

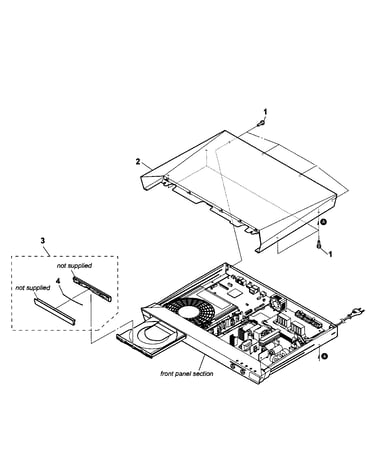

Case diagram

Panel load

Part #X25858041

Replaced by #X25858041

?
Manufacturer substitution
This part replaces X25858041. Substitute parts can look different from the original.
$9.10
In Stock
Flat Cable 184637761
#57

Front panel diagram

Flat cable

Part #184637761

The manufacturer no longer makes this part, and there's no substitute part
