GE
Wine & Beverage Cooler

Model # PWR04FANABS Official GE refrigerator - n series

Here are the diagrams and repair parts for Official GE PWR04FANABS refrigerator - n series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Dryer Filter WR86X0096
#12

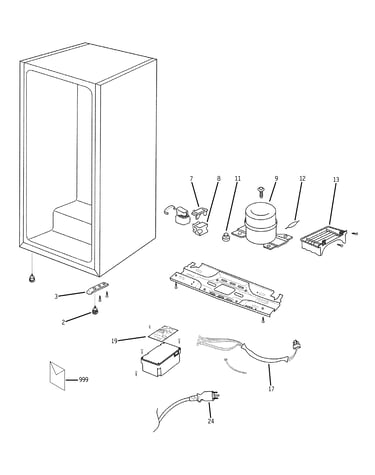

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Cord Pwr Asm WR23X0420
#24

Unit parts diagram

Cord pwr asm

Part #WR23X0420

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0420. Substitute parts can look different from the original.
$22.68 |
18% OFF Phone Price : $27.68
In Stock
Beverage Cooler Temperature Sensor WR23X10278
#46

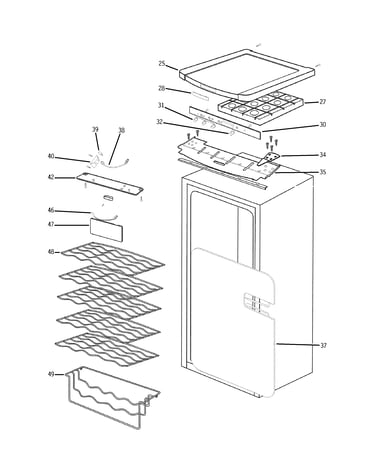

Cabinet diagram

Beverage cooler temperature sensor

Part #WR23X10278

$82.19 |
6% OFF Phone Price : $87.19
In Stock
Complete Grommet WR02X10398
#11

Unit parts diagram

Complete grommet

Part #WR02X10398

$9.09 |
10% OFF Phone Price : $10.09
In Stock
Ptc Relay WR07X10030
#8

Unit parts diagram

Ptc relay

Part #WR07X10030

The manufacturer no longer makes this part, and there's no substitute part

Button R WR02X11278
#32

Cabinet diagram

Button r

Part #WR02X11278

The manufacturer no longer makes this part, and there's no substitute part

Door Gasket WR14X10145
#50

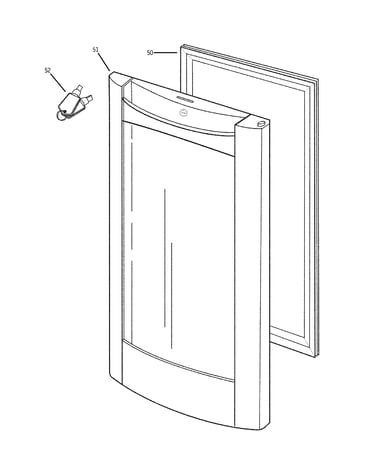

Door diagram

Door gasket

Part #WR14X10145

The manufacturer no longer makes this part, and there's no substitute part

Button L WR02X11277
#31

Cabinet diagram

Button l

Part #WR02X11277

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Cover WR02X11283
#47

Cabinet diagram

Evaporator cover

Part #WR02X11283

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Assembly WR37X10005
#37

Cabinet diagram

Evaporator assembly

Part #WR37X10005

The manufacturer no longer makes this part, and there's no substitute part
