Craftsman
Reciprocating Saw

Model # 315114271 Official Craftsman reciprocating saw

Here are the diagrams and repair parts for Official Craftsman 315114271 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

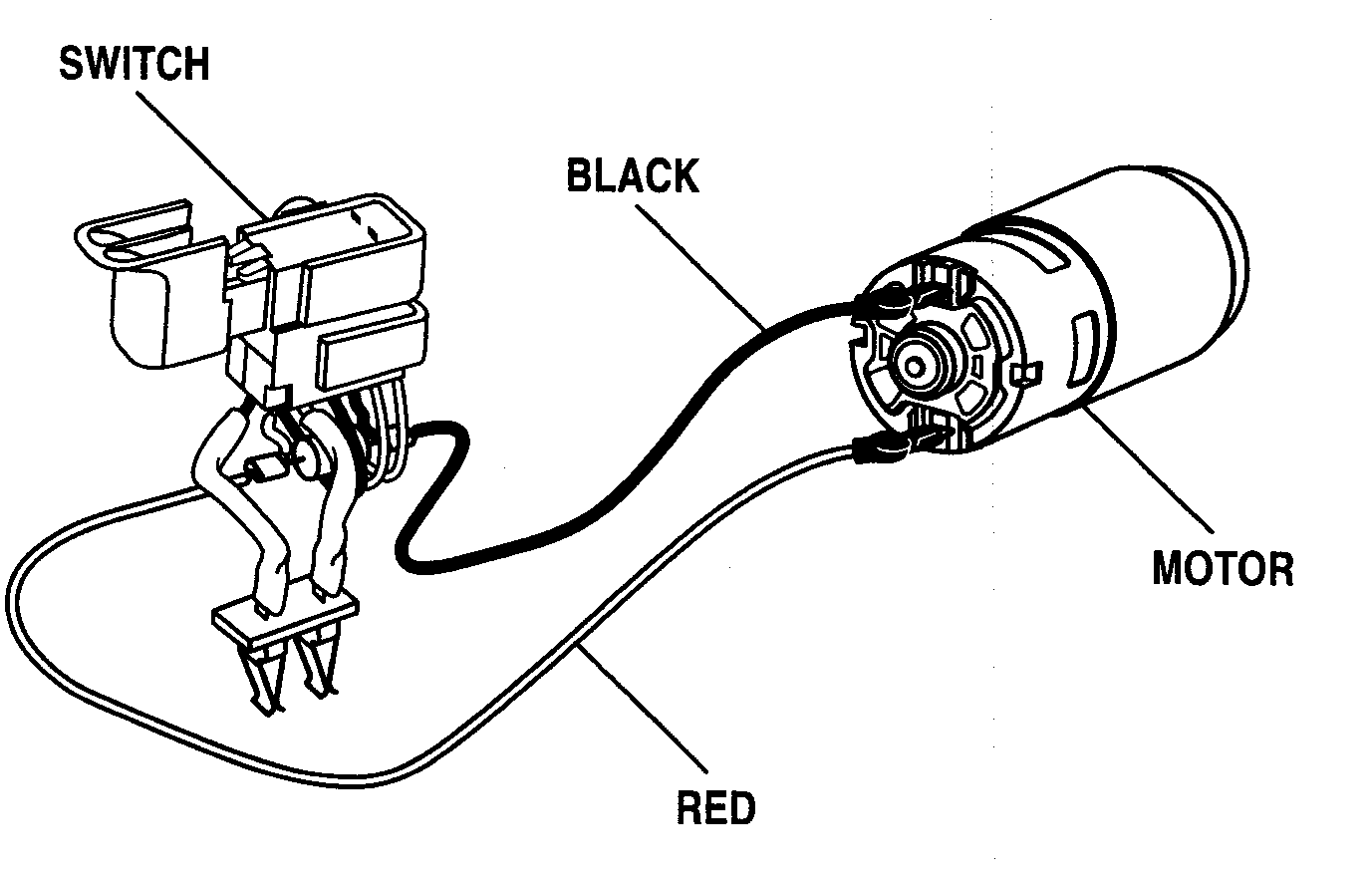

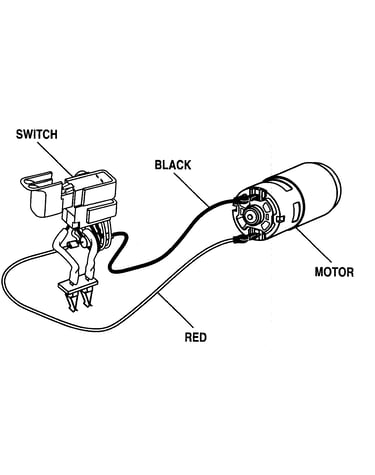

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Blade 6929201
#3A

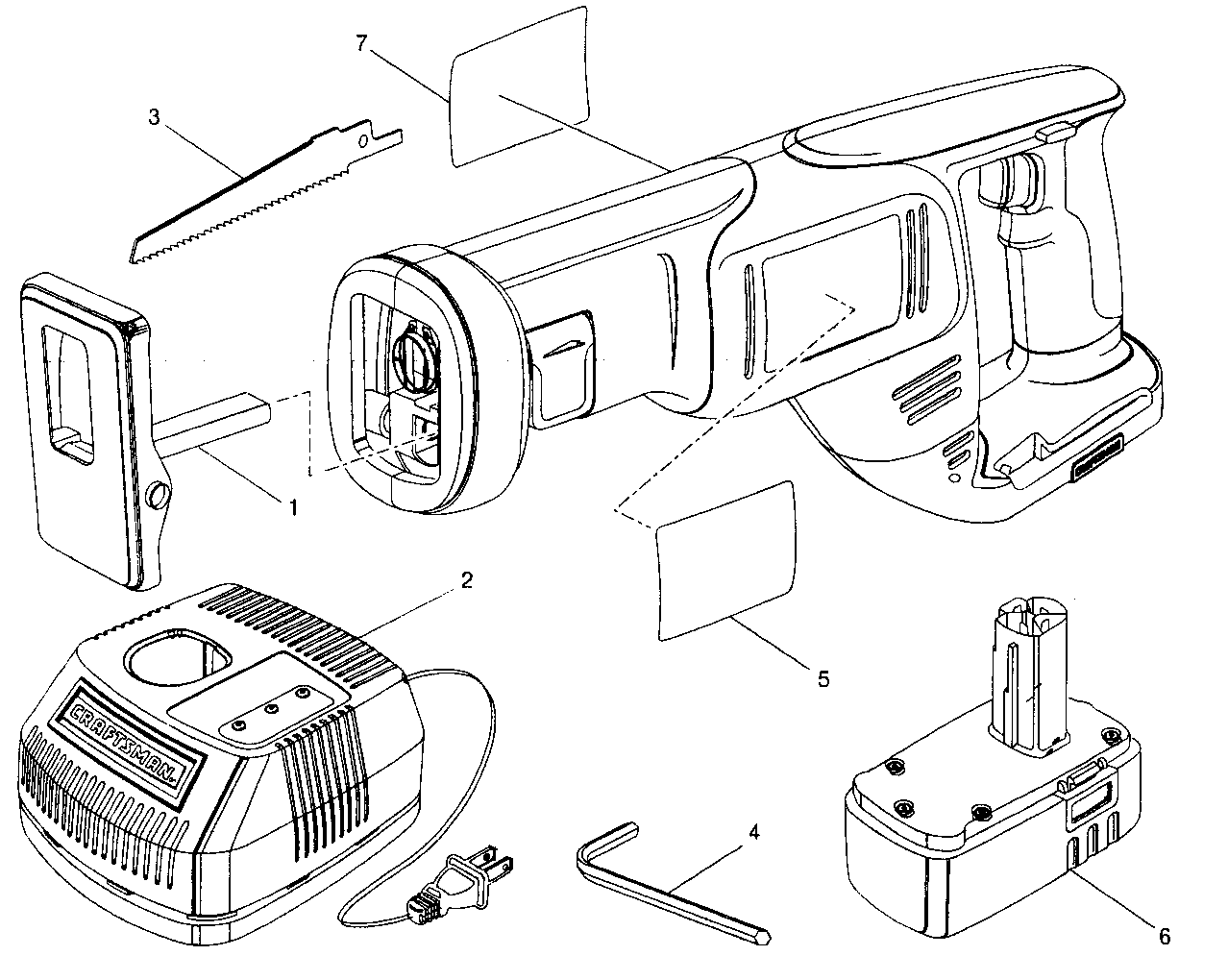

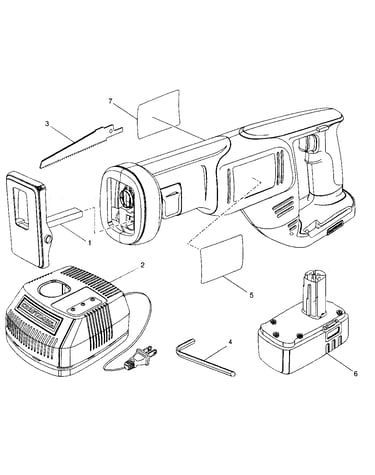

Saw diagram

Blade

Part #6929201

The manufacturer no longer makes this part, and there's no substitute part

Hex Key 6800201
#4

Saw diagram

Hex key

Part #6800201

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Sliding Rod 300309008
#32

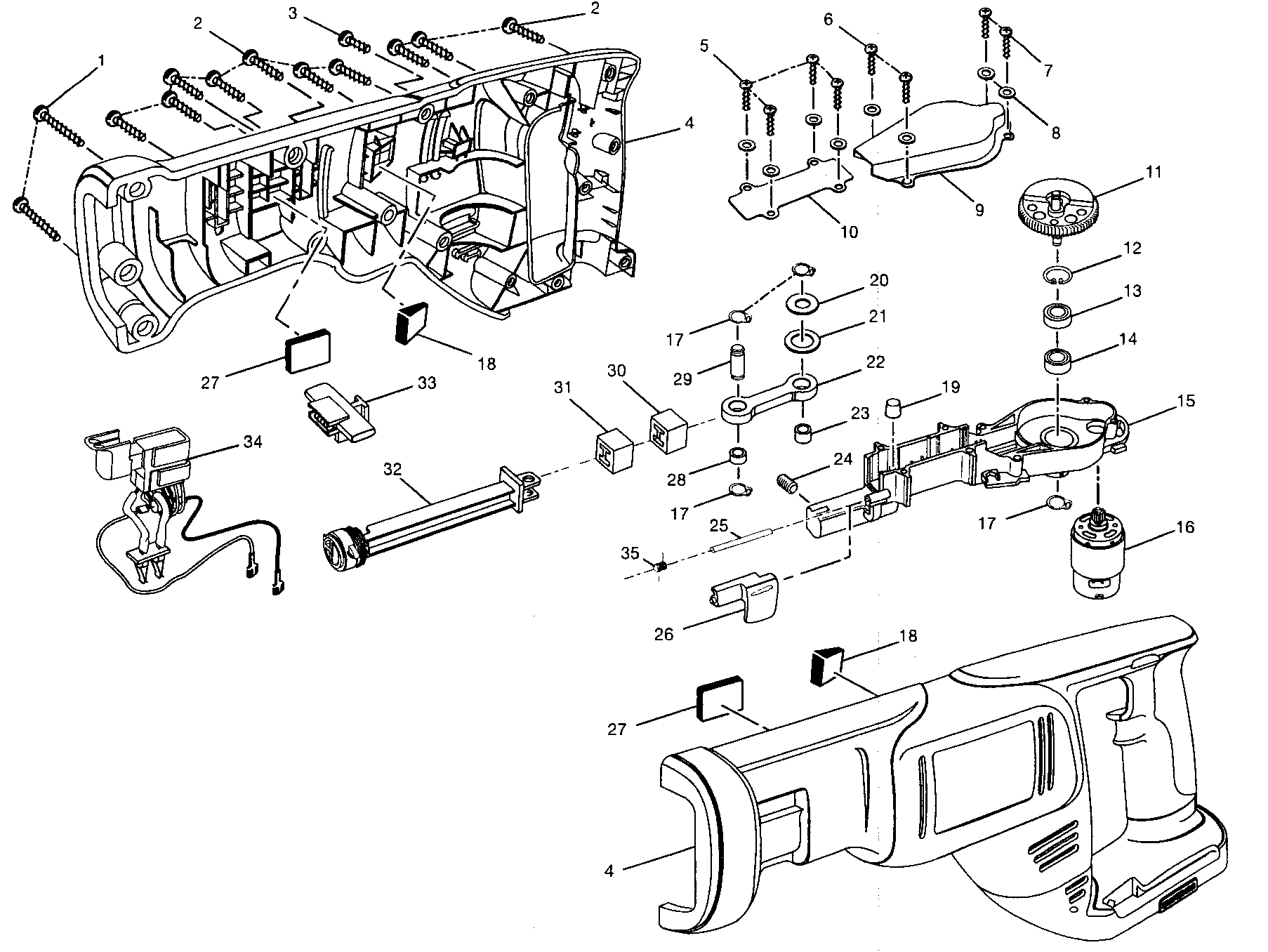

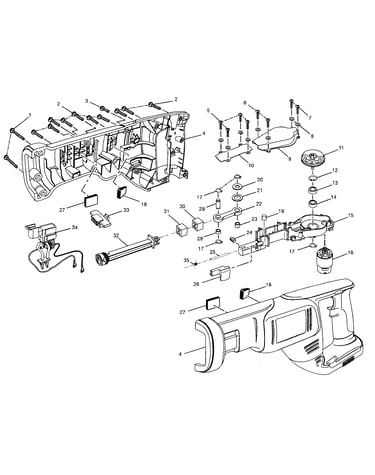

Housing assy diagram

Reciprocating saw sliding rod

Part #300309008

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 6902501
#12

Housing assy diagram

Retaining ring

Part #6902501

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 130235029
#6B

Saw diagram

Battery pack

Part #130235029

The manufacturer no longer makes this part, and there's no substitute part

Washer 6703001
#8

Housing assy diagram

Washer

Part #6703001

The manufacturer no longer makes this part, and there's no substitute part

Shoe Assembly 3021608
#1

Saw diagram

Shoe assembly

Part #3021608

The manufacturer no longer makes this part, and there's no substitute part

Screw 6616503
#5

Housing assy diagram

Screw

Part #6616503

The manufacturer no longer makes this part, and there's no substitute part

Cover 6899801
#9

Housing assy diagram

Cover

Part #6899801

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Connecting Rod Bushing 6900101
#28

Housing assy diagram

Reciprocating saw connecting rod bushing

Part #6900101

The manufacturer no longer makes this part, and there's no substitute part
