Model # RS240 Official Ryobi 5" random orbital sander

Here are the diagrams and repair parts for Official Ryobi RS240 5" random orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Backing Pad W/brake (incl. Ref 23) 975773001
#25

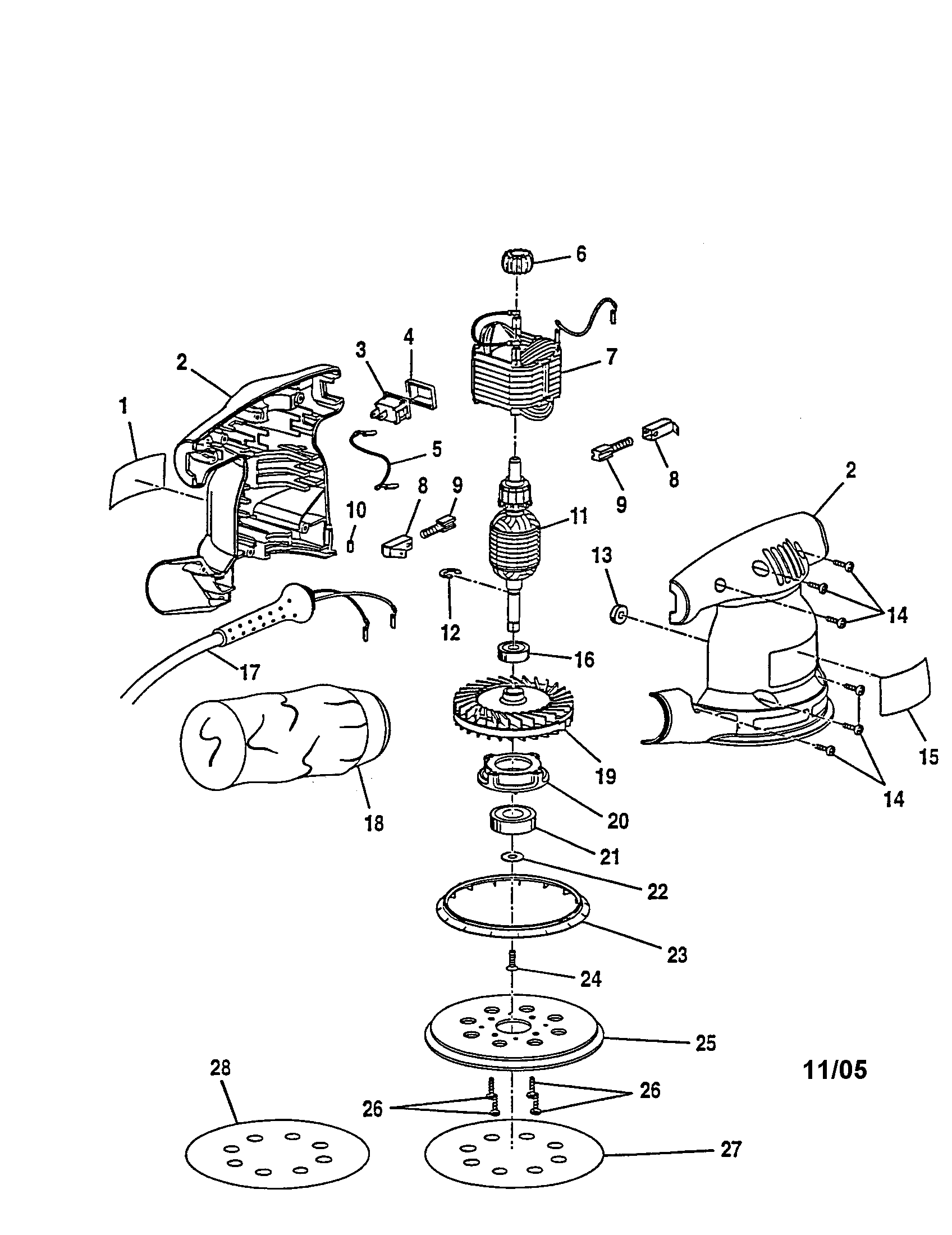

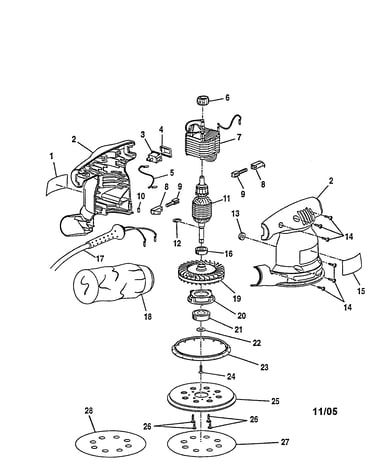

5" random orbit sander diagram

Backing pad w/brake (incl. ref 23)

Part #975773001

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cap 968305046
#20

5" random orbit sander diagram

Bearing cap

Part #968305046

The manufacturer no longer makes this part, and there's no substitute part

Washer 931744828
#22

5" random orbit sander diagram

Washer

Part #931744828

The manufacturer no longer makes this part, and there's no substitute part

Guard Assembly (see Page 6)) N/P
#27

5" random orbit sander diagram

Guard assembly (see page 6))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 623111004
#12

5" random orbit sander diagram

Retaining ring

Part #623111004

The manufacturer no longer makes this part, and there's no substitute part

Brake 975239001
#23

5" random orbit sander diagram

Brake

Part #975239001

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly (2) 968304059
#9

5" random orbit sander diagram

Brush assembly (2)

Part #968304059

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink W/bearing 998044001
#6

5" random orbit sander diagram

Heat sink w/bearing

Part #998044001

The manufacturer no longer makes this part, and there's no substitute part

Armature (incl. Nos. 12 And 16) 968306139
#11

5" random orbit sander diagram

Armature (incl. nos. 12 and 16)

Part #968306139

The manufacturer no longer makes this part, and there's no substitute part

Conversion Pad 974484001
#28

5" random orbit sander diagram

Conversion pad

Part #974484001

The manufacturer no longer makes this part, and there's no substitute part
