Schwank
Wall Heater

Model # PW825SEN-C Official Schwank vented wall furnace

Here are the diagrams and repair parts for Official Schwank PW825SEN-C vented wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Generator B110403-G1
#5A

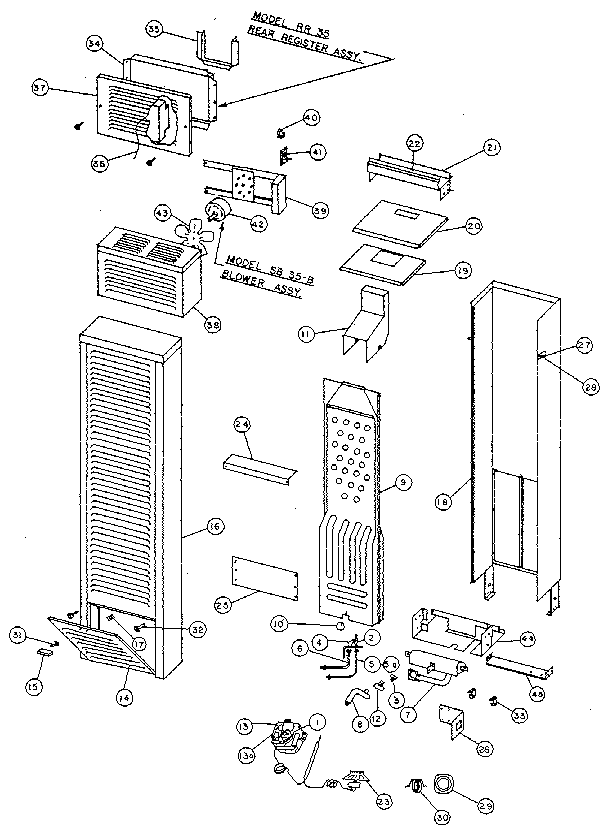

Unit parts diagram

Generator

Part #B110403-G1

Replaced by #GO1A-332

?
Manufacturer substitution
This part replaces B110403-G1. Substitute parts can look different from the original.
$66.49
In Stock
Thermostat A110621-G1
#29

Unit parts diagram

Thermostat

Part #A110621-G1

Replaced by #1E30N-910

?
Manufacturer substitution
This part replaces A110621-G1. Substitute parts can look different from the original.
$81.43 |
6% OFF Phone Price : $86.43
In Stock
Valve B110405-G1
#1A

Unit parts diagram

Valve

Part #B110405-G1

Replaced by #36C03U-433

?
Manufacturer substitution
This part replaces B110405-G1. Substitute parts can look different from the original.
$508.17 |
$10.00 OFF Phone Price : $518.17
In Stock
Manifold A110148-G1
#12

Unit parts diagram

Manifold

Part #A110148-G1

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple B107783-G4
#5

Unit parts diagram

Thermocouple

Part #B107783-G4

The manufacturer no longer makes this part, and there's no substitute part

Door Burner B110139-G1-1
#10

Unit parts diagram

Door burner

Part #B110139-G1-1

The manufacturer no longer makes this part, and there's no substitute part

Orifice A110339-G3
#4

Unit parts diagram

Orifice

Part #A110339-G3

The manufacturer no longer makes this part, and there's no substitute part

Actuator Kit B110405-G5
#13D

Unit parts diagram

Actuator kit

Part #B110405-G5

The manufacturer no longer makes this part, and there's no substitute part

Draft Diverter Assy D110728-G1-1
#11

Unit parts diagram

Draft diverter assy

Part #D110728-G1-1

The manufacturer no longer makes this part, and there's no substitute part

Valve Comb B110648-G1
#1

Unit parts diagram

Valve comb

Part #B110648-G1

The manufacturer no longer makes this part, and there's no substitute part
