Model # 3171B-15 Official American SportWorks fun-kart

Here are the diagrams and repair parts for Official American SportWorks 3171B-15 fun-kart, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

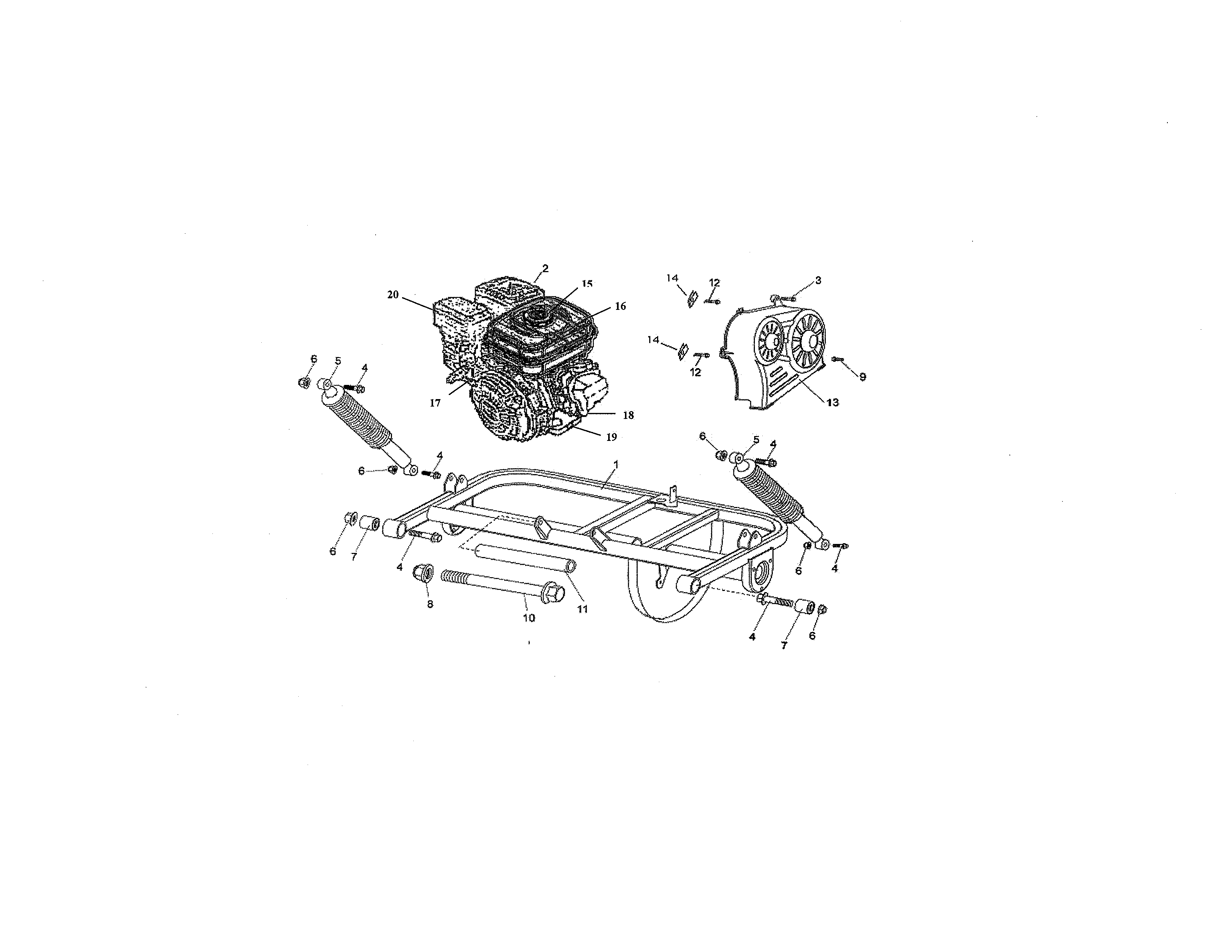

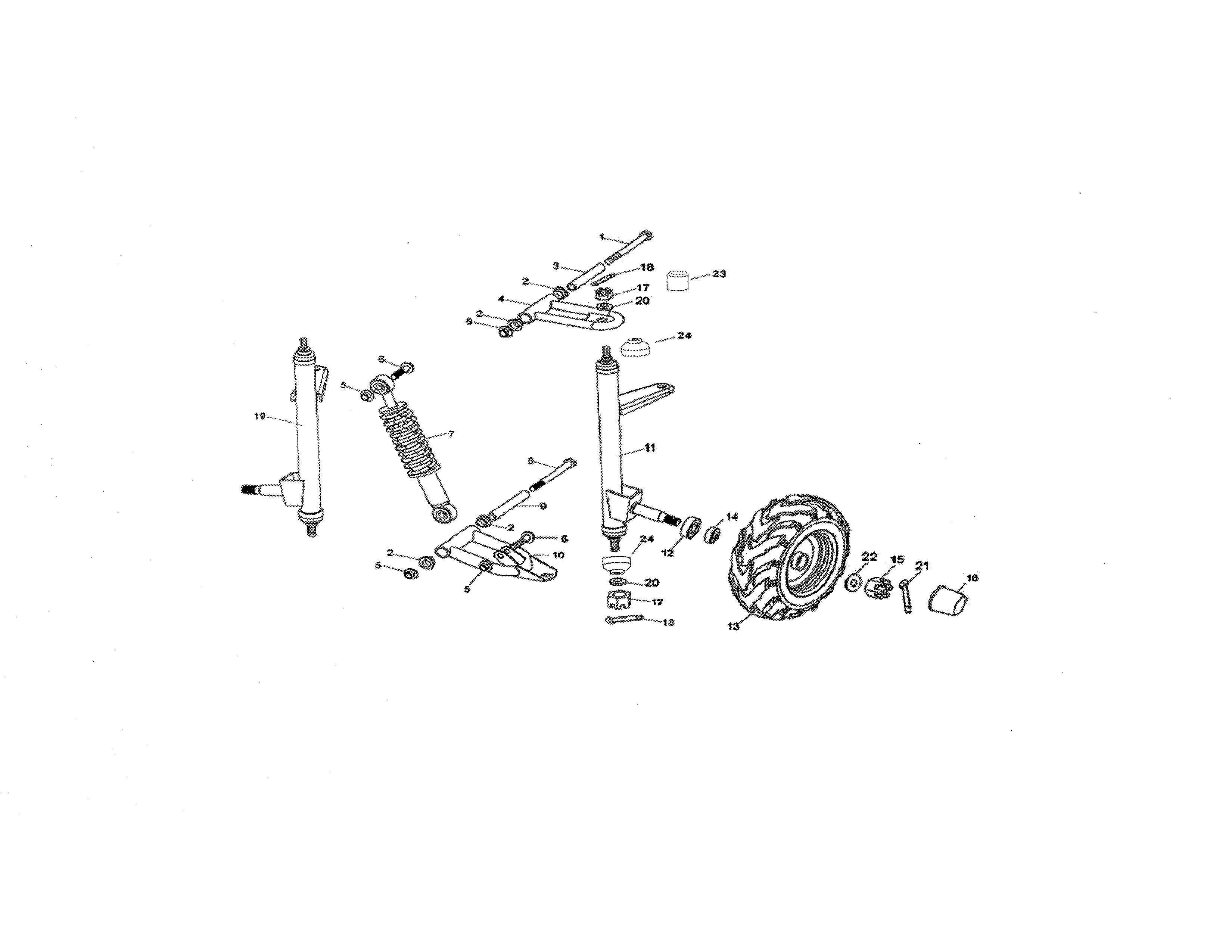

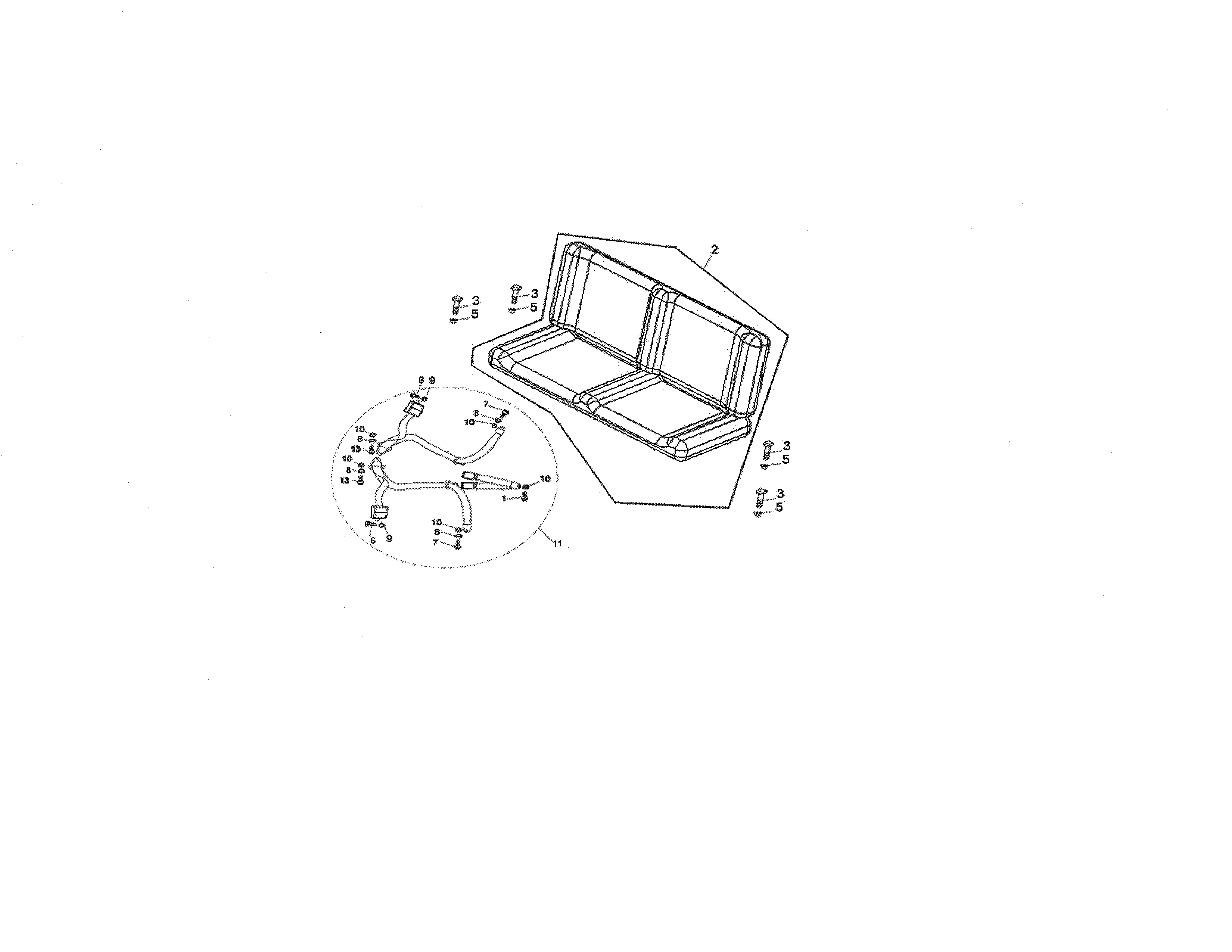

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Go-kart Hydraulic Brake Assembly 14655
#34

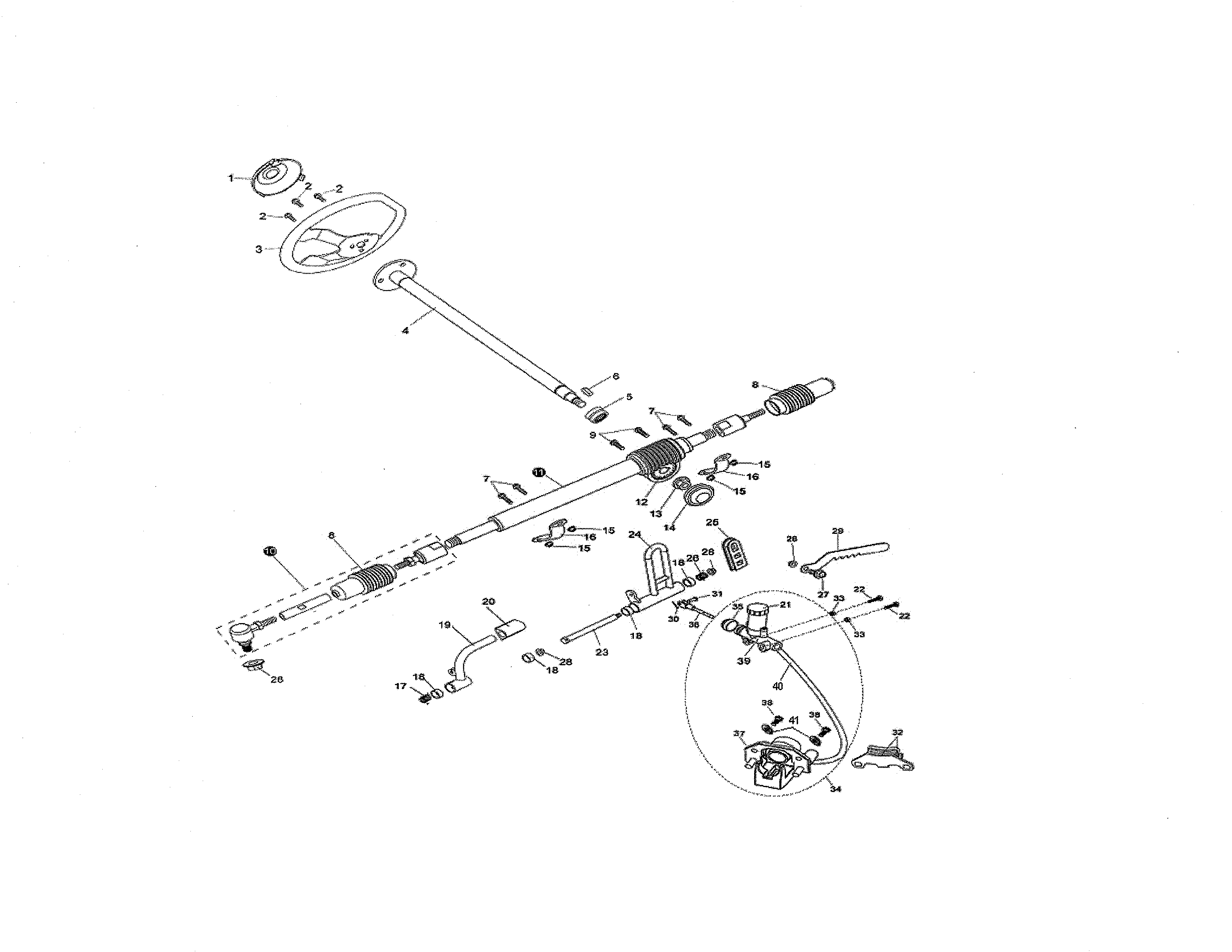

Steering diagram

Go-kart hydraulic brake assembly

Part #14655

The manufacturer no longer makes this part, and there's no substitute part

Go-kart Engine Adjustment Isolator Bushing 14467
#30

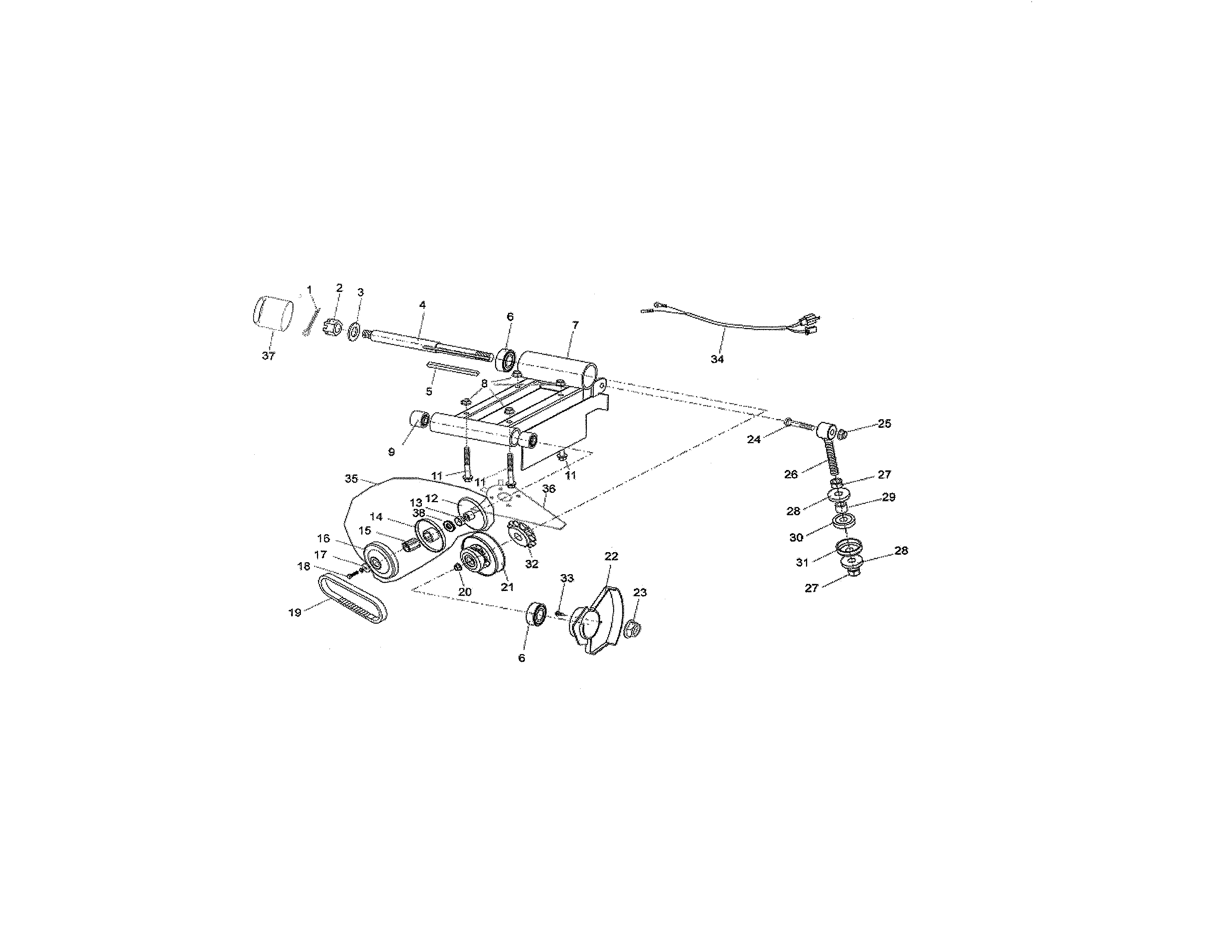

Jackshaft diagram

Go-kart engine adjustment isolator bushing

Part #14467

The manufacturer no longer makes this part, and there's no substitute part

Bar 14607-2
#11A

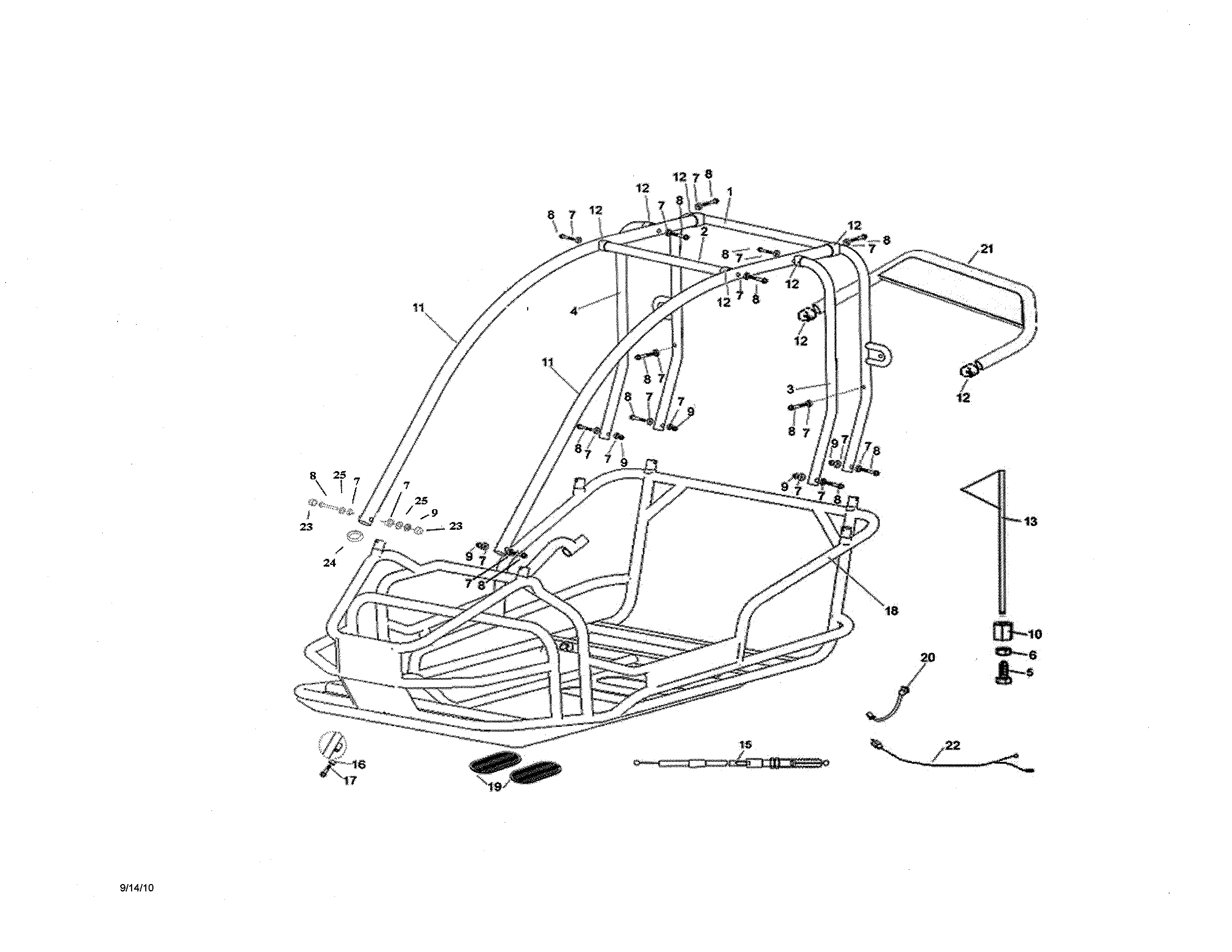

Frame diagram

Bar

Part #14607-2

The manufacturer no longer makes this part, and there's no substitute part

Spacer 14671
#10

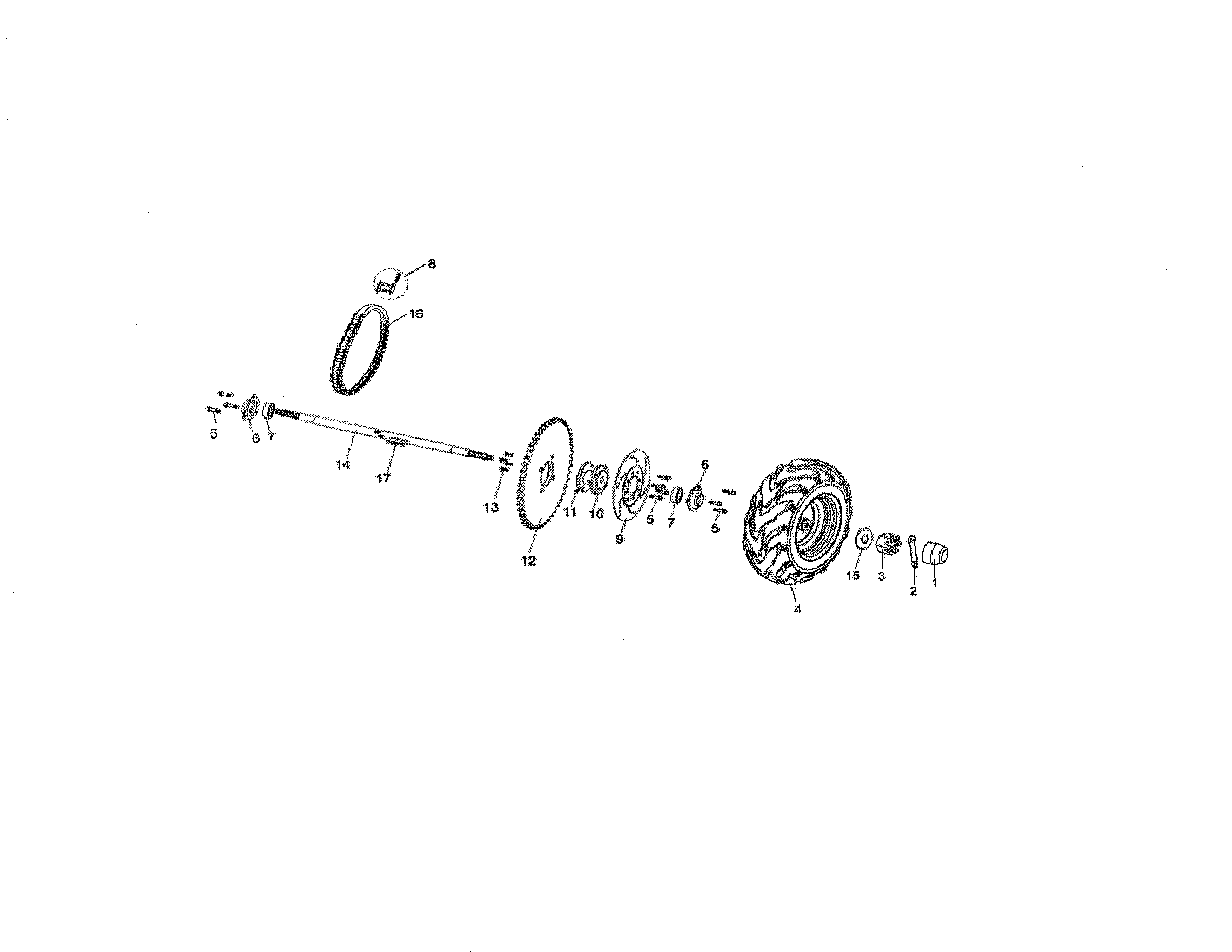

Rear axle diagram

Spacer

Part #14671

The manufacturer no longer makes this part, and there's no substitute part

Plate, Back - 3171 (with Tabs) 15062
#36

Jackshaft diagram

Plate, back - 3171 (with tabs)

Part #15062

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Bolt 1454
#18

Jackshaft diagram

Lawn & garden equipment bolt

Part #1454

The manufacturer no longer makes this part, and there's no substitute part

Brake Boot 14656
#35

Steering diagram

Brake boot

Part #14656

The manufacturer no longer makes this part, and there's no substitute part

Bar 14603-2
#3A

Frame diagram

Bar

Part #14603-2

The manufacturer no longer makes this part, and there's no substitute part

Brake Disc 14670
#9

Rear axle diagram

Brake disc

Part #14670

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 14423
#33

Jackshaft diagram

Lawn & garden equipment screw

Part #14423

The manufacturer no longer makes this part, and there's no substitute part
