Model # EIFLS20QSW00 Official Electrolux washer

Here are the diagrams and repair parts for Official Electrolux EIFLS20QSW00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

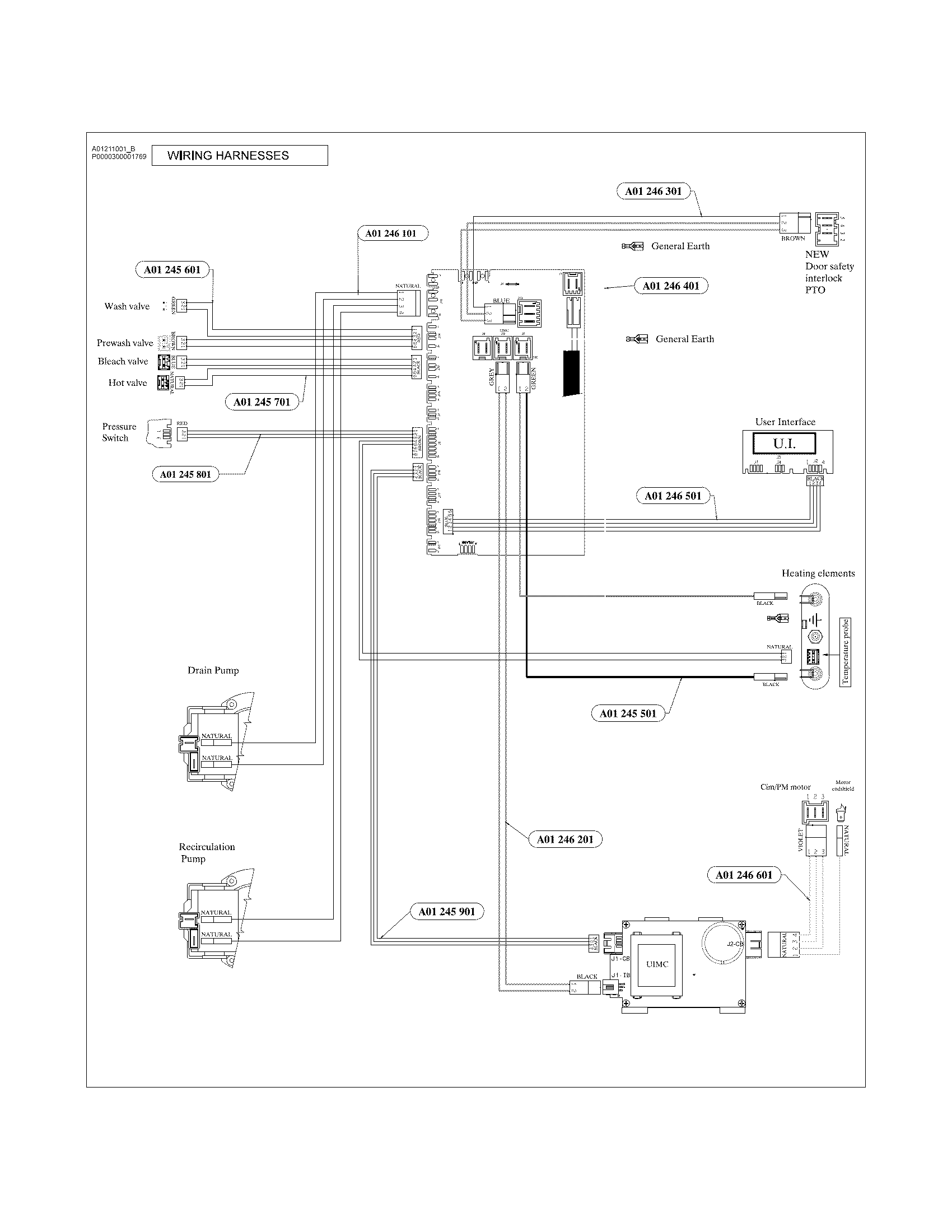

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Washer Door Boot 132724611
#608

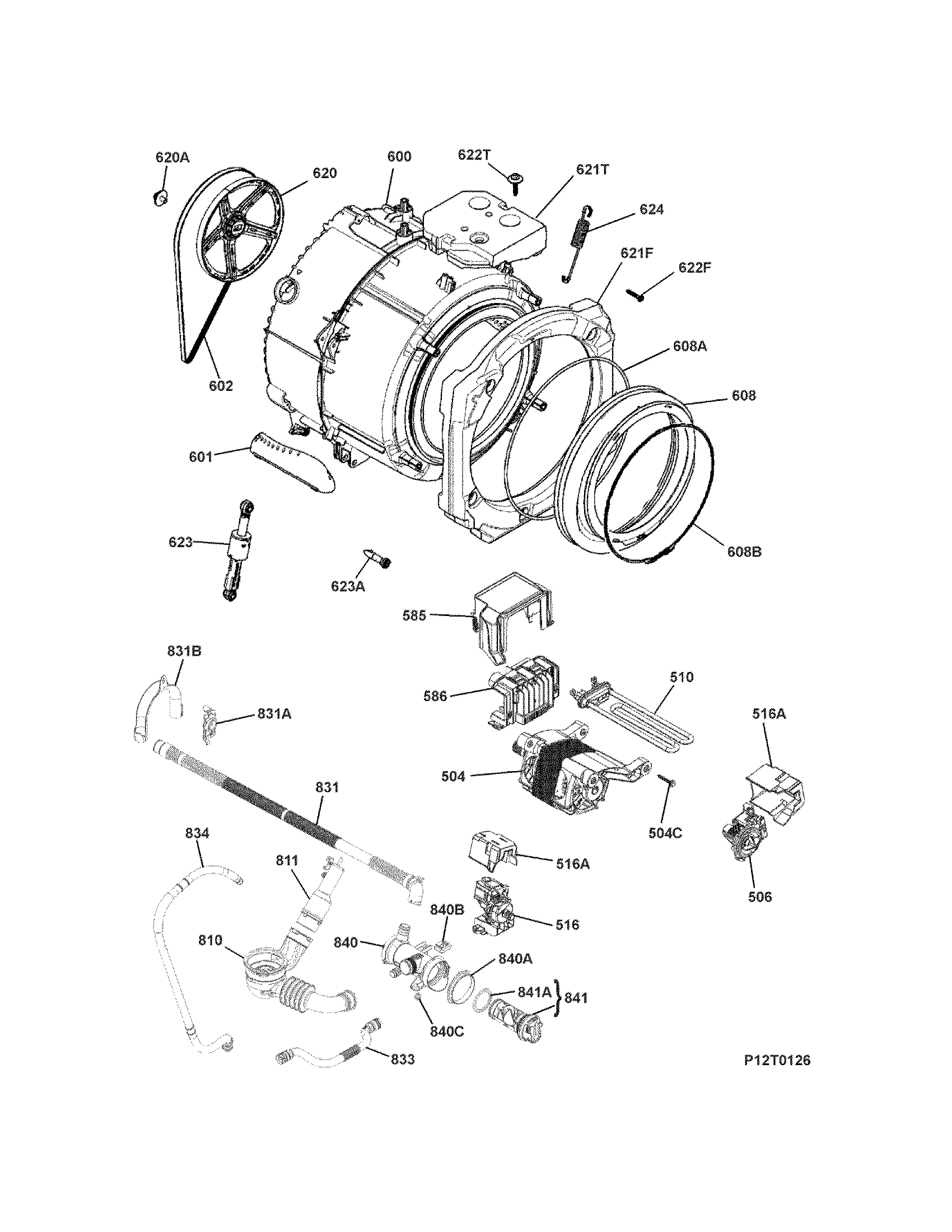

Motor/tub diagram

Washer door boot

Part #132724611

$165.58 |
6% OFF Phone Price : $175.58
In Stock
Washer Door Lock 808455304
#521

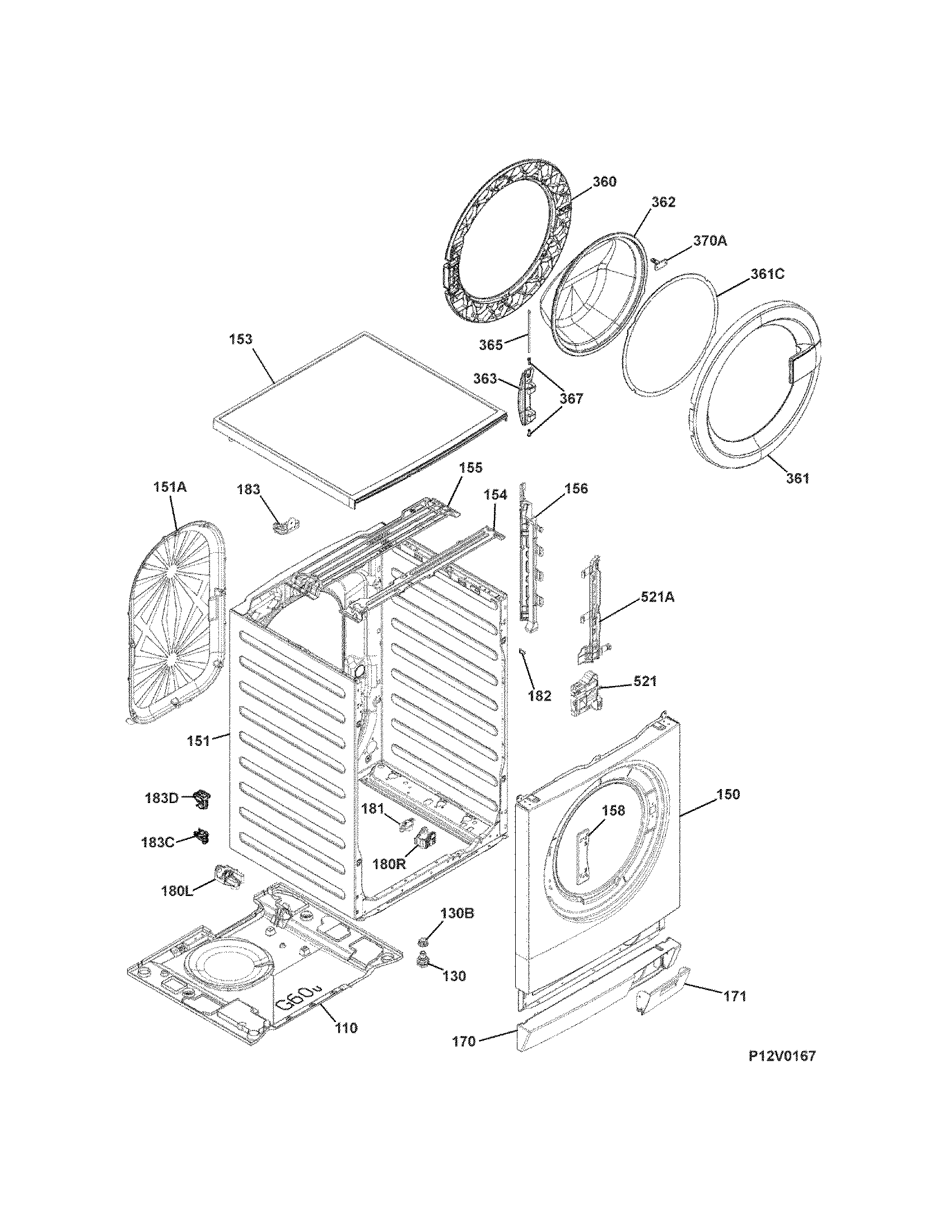

Cabinet/top diagram

Washer door lock

Part #808455304

$70.89 |
7% OFF Phone Price : $75.89
In Stock
Washer 3-way Water Inlet Valve 132518842
#507

Controls diagram

Washer 3-way water inlet valve

Part #132518842

$76.70 |
6% OFF Phone Price : $81.70
In Stock
Washer Drain Pump 132611913
#506

Motor/tub diagram

Washer drain pump

Part #132611913

$113.36 |
8% OFF Phone Price : $123.36
In Stock
Washer Drive Motor Inverter Board A01118401
#586

Motor/tub diagram

Washer drive motor inverter board

Part #A01118401

$203.89 |
5% OFF Phone Price : $213.89
In Stock
Washer User Interface 136007544
#587

Controls diagram

Washer user interface

Part #136007544

Replaced by #A10066602

?
Manufacturer substitution
This part replaces 136007544. Substitute parts can look different from the original.
This item is not returnable
$264.67 |
$10.00 OFF Phone Price : $274.67
In Stock
Clip 539151026
#NI

Controls diagram

Clip

Part #539151026

$27.98
In Stock
Washer Gasket 132765200
#840

Motor/tub diagram

Washer gasket

Part #132765200

$41.44 |
11% OFF Phone Price : $46.44
In Stock
Spring 132768400
#624

Motor/tub diagram

Spring

Part #132768400

$81.64
In Stock
Washer Dispenser Drawer 132507511
#851

Controls diagram

Washer dispenser drawer

Part #132507511

$157.01 |
6% OFF Phone Price : $167.01
In Stock
