Model # 201727541 Official Kenmore two-burner deluxe folding cookstove

Here are the diagrams and repair parts for Official Kenmore 201727541 two-burner deluxe folding cookstove, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Grille 100036BN
#8

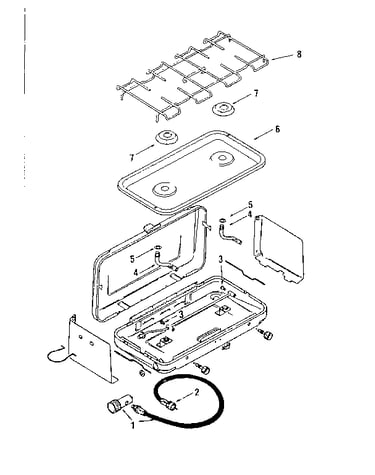

Stove parts diagram

Grille

Part #100036BN

The manufacturer no longer makes this part, and there's no substitute part

Safety Valve 100524
#2

Stove parts diagram

Safety valve

Part #100524

The manufacturer no longer makes this part, and there's no substitute part

Regltr/hose 100515
#1

Stove parts diagram

Regltr/hose

Part #100515

The manufacturer no longer makes this part, and there's no substitute part

Mixer Tube 100045BZ
#4

Stove parts diagram

Mixer tube

Part #100045BZ

The manufacturer no longer makes this part, and there's no substitute part

Orifice 100166
#3

Stove parts diagram

Orifice

Part #100166

The manufacturer no longer makes this part, and there's no substitute part

Washer 100046
#5

Stove parts diagram

Washer

Part #100046

The manufacturer no longer makes this part, and there's no substitute part

Burner 100435
#7

Stove parts diagram

Burner

Part #100435

The manufacturer no longer makes this part, and there's no substitute part

2 Burnr Tray 100043
#6

Stove parts diagram

2 burnr tray

Part #100043

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 1200810J6

#NI

All parts diagram

Owner's manual

Part #1200810J6

The manufacturer no longer makes this part, and there's no substitute part
