Kenmore
Toaster

Model # 360633800 Official Kenmore toaster oven

Here are the diagrams and repair parts for Official Kenmore 360633800 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

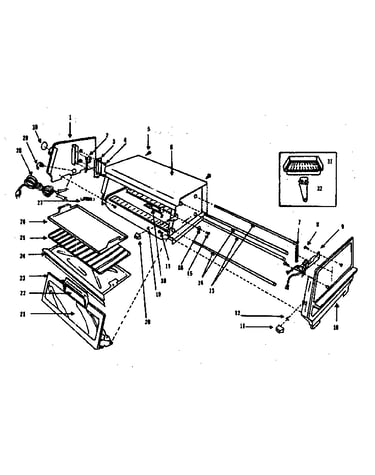

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Grille 621809
#25

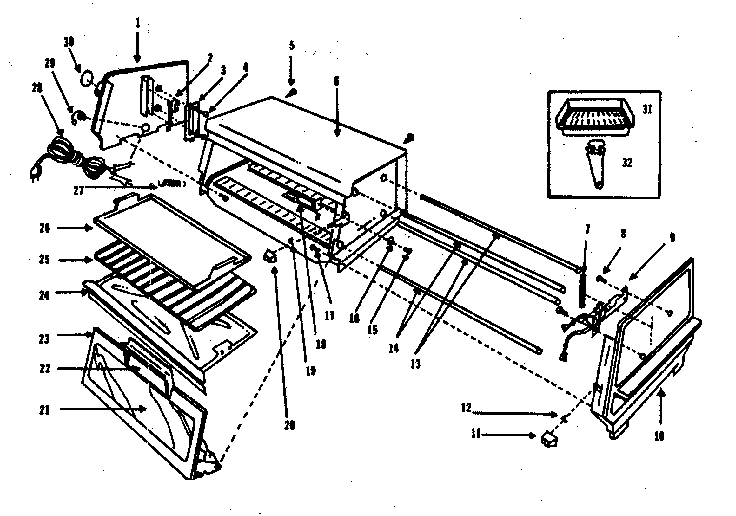

Replacement parts diagram

Grille

Part #621809

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 092360

#NI

All parts diagram

Owner's manual

Part #092360

The manufacturer no longer makes this part, and there's no substitute part

Slide Switch 910431
#2

Replacement parts diagram

Slide switch

Part #910431

The manufacturer no longer makes this part, and there's no substitute part

Knob Cover 143105
#30

Replacement parts diagram

Knob cover

Part #143105

The manufacturer no longer makes this part, and there's no substitute part

Knob 156790
#20

Replacement parts diagram

Knob

Part #156790

The manufacturer no longer makes this part, and there's no substitute part

Right Panel 626193
#10

Replacement parts diagram

Right panel

Part #626193

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 156398
#22

Replacement parts diagram

Door handle

Part #156398

The manufacturer no longer makes this part, and there's no substitute part

Screw 001107
#15

Replacement parts diagram

Screw

Part #001107

The manufacturer no longer makes this part, and there's no substitute part

Rear Element 620751
#13

Replacement parts diagram

Rear element

Part #620751

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 620806
#18

Replacement parts diagram

Thermostat

Part #620806

The manufacturer no longer makes this part, and there's no substitute part
