Model # 315116890 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315116890 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

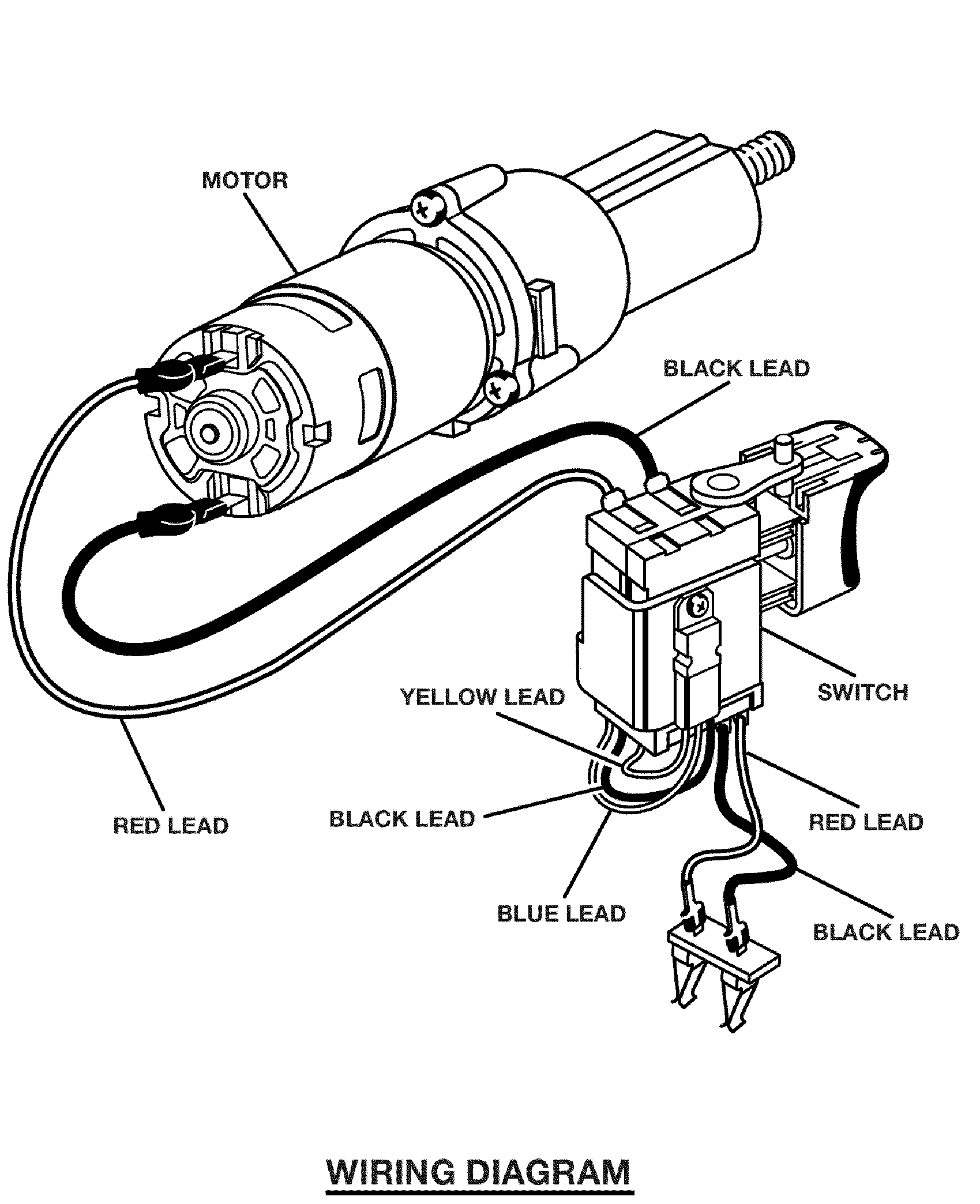

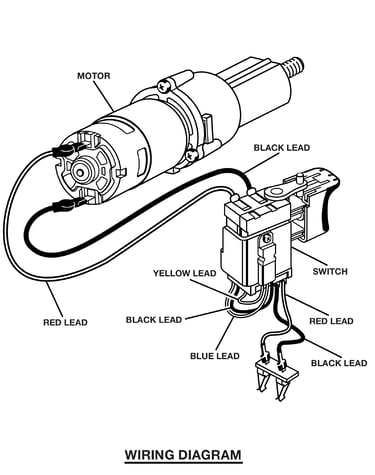

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Pin 6843505
#13

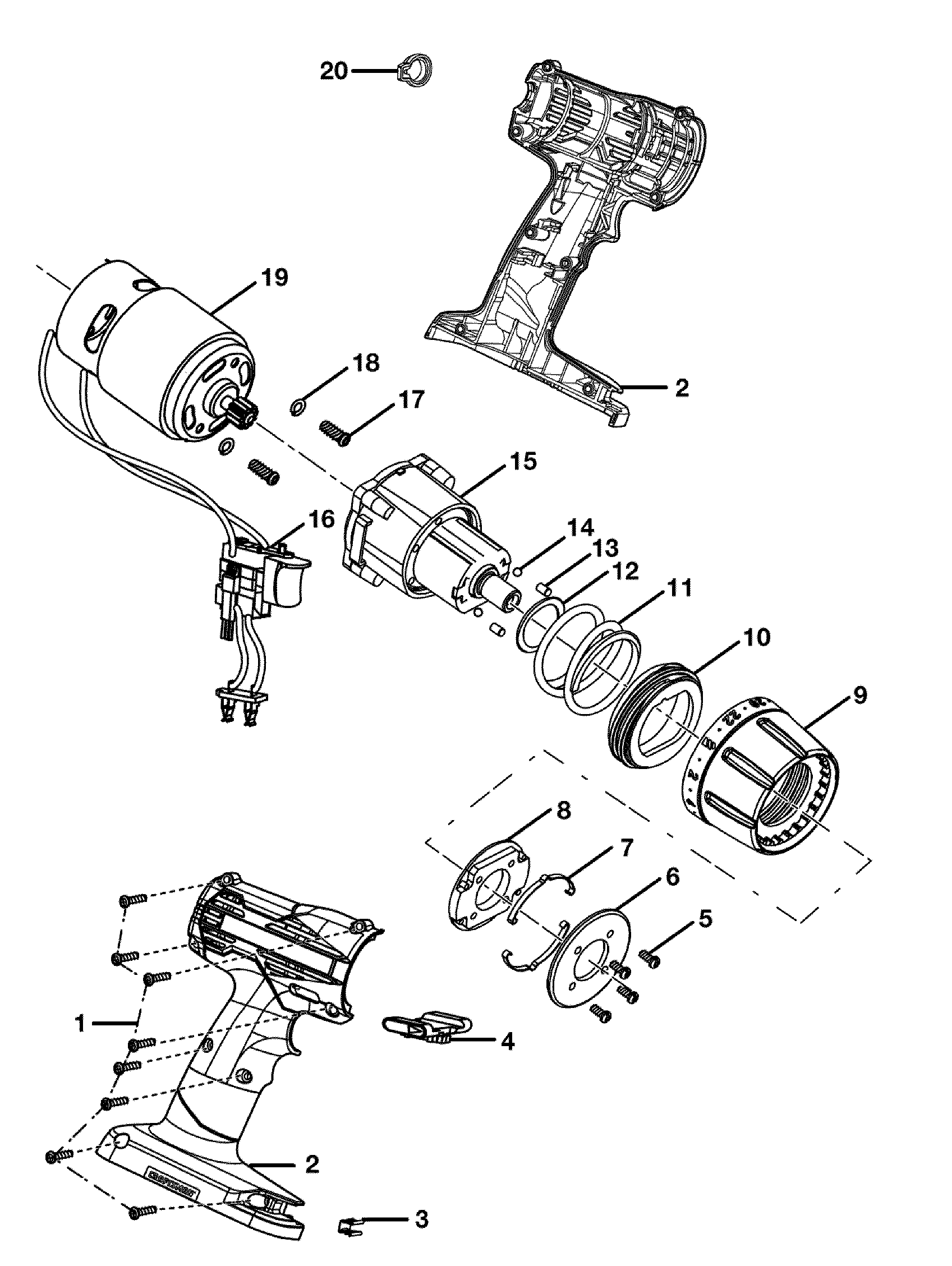

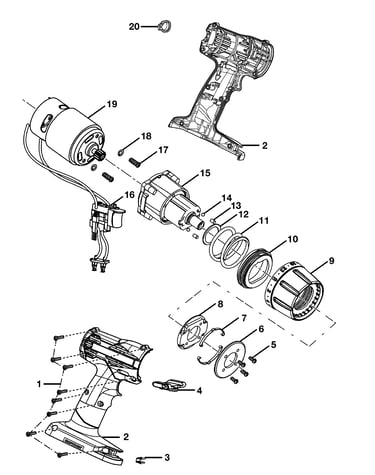

Drill assy diagram

Pin

Part #6843505

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 130279005
#5

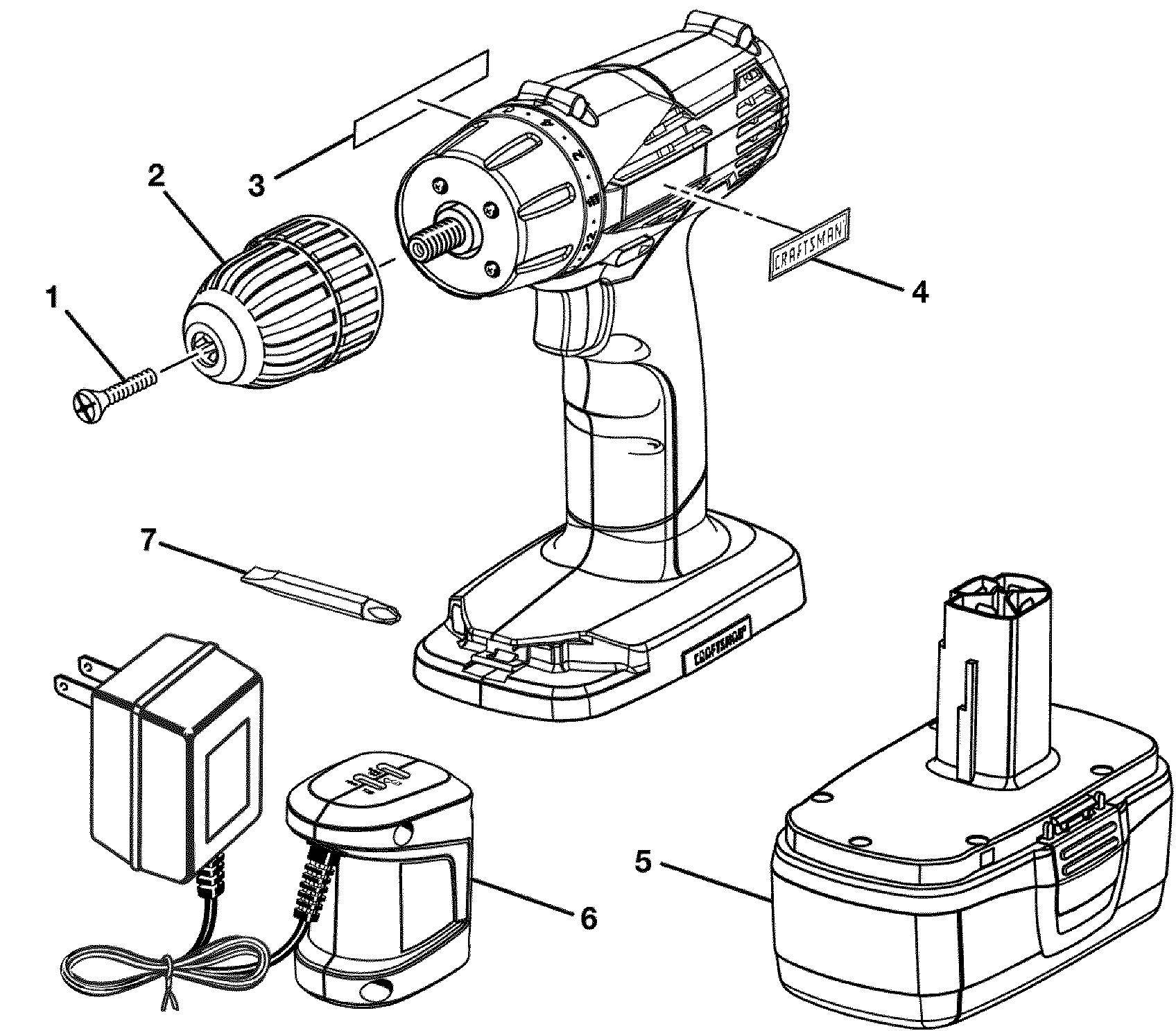

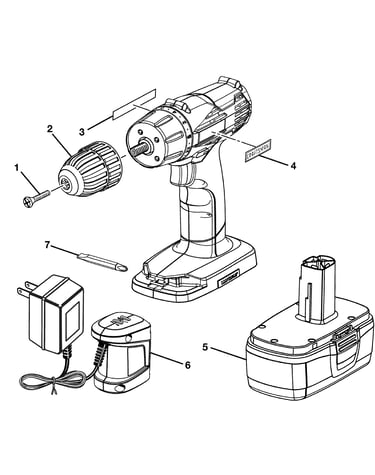

Accessory diagram

Battery pack

Part #130279005

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Motor 230040011
#29

Drill assy diagram

Drill/driver motor

Part #230040011

The manufacturer no longer makes this part, and there's no substitute part

Retainer 6375301
#6

Drill assy diagram

Retainer

Part #6375301

The manufacturer no longer makes this part, and there's no substitute part

Housing 200858001
#2

Drill assy diagram

Housing

Part #200858001

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 911375
#5A

Accessory diagram

Battery pack

Part #911375

The manufacturer no longer makes this part, and there's no substitute part

Data Label 940045280
#3

Accessory diagram

Data label

Part #940045280

The manufacturer no longer makes this part, and there's no substitute part

Charger 140107001
#6

Accessory diagram

Charger

Part #140107001

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5501403
#10

Drill assy diagram

Sleeve

Part #5501403

The manufacturer no longer makes this part, and there's no substitute part

Forward And Reverse Button 340136001
#4

Drill assy diagram

Forward and reverse button

Part #340136001

The manufacturer no longer makes this part, and there's no substitute part
