Model # R161 Official Ryobi router

Here are the diagrams and repair parts for Official Ryobi R161 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

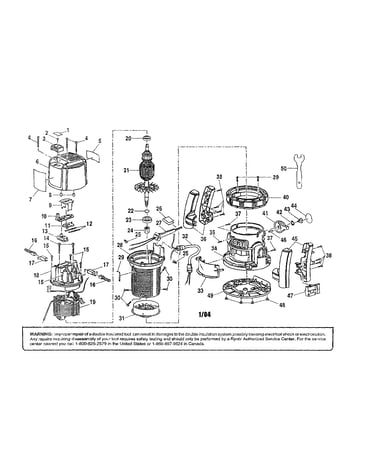

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Power Handle Cord 973975-002
#32

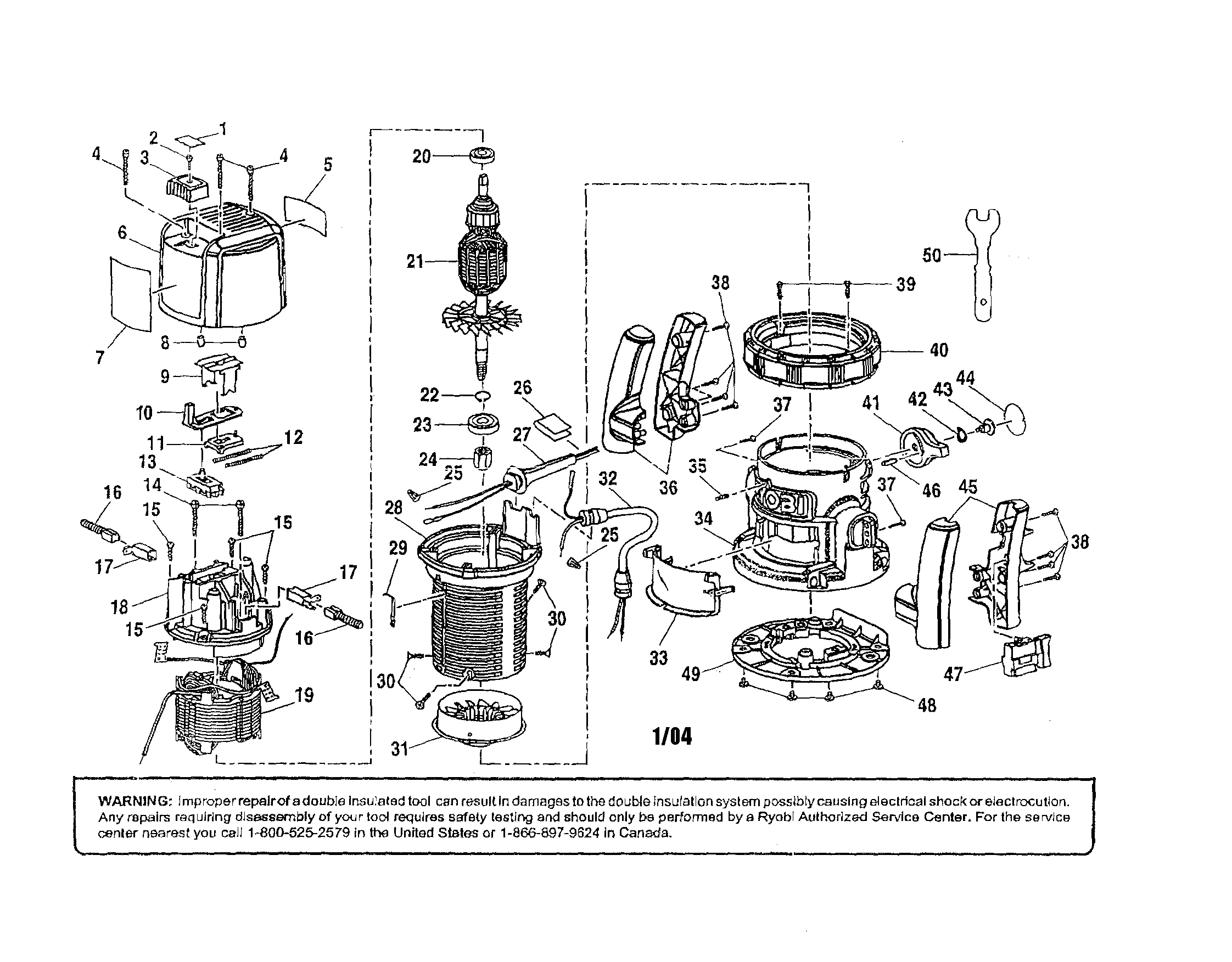

Router diagram

Power handle cord

Part #973975-002

The manufacturer no longer makes this part, and there's no substitute part

Switch 968303-098
#13

Router diagram

Switch

Part #968303-098

The manufacturer no longer makes this part, and there's no substitute part

Cord Label 973252-001
#26

Router diagram

Cord label

Part #973252-001

The manufacturer no longer makes this part, and there's no substitute part

Label 974323-003
#1

Router diagram

Label

Part #974323-003

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Screw (#10-32 X 5/16 In. Pan Hd.) 970712-002
#43

Router diagram

Shoulder screw (#10-32 x 5/16 in. pan hd.)

Part #970712-002

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 726676-002
#35

Router diagram

Set screw

Part #726676-002

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly (2) 968304-026
#16

Router diagram

Brush assembly (2)

Part #968304-026

The manufacturer no longer makes this part, and there's no substitute part

Screw 999053-003
#2

Router diagram

Screw

Part #999053-003

The manufacturer no longer makes this part, and there's no substitute part

Screw (#8-18 X 9/16 In. Fil. Hd. T.c.)(4) 612556-003
#30

Router diagram

Screw (#8-18 x 9/16 in. fil. hd. t.c.)(4)

Part #612556-003

The manufacturer no longer makes this part, and there's no substitute part

Field 968307-119
#19

Router diagram

Field

Part #968307-119

The manufacturer no longer makes this part, and there's no substitute part
