Model # 315243130 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 315243130 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

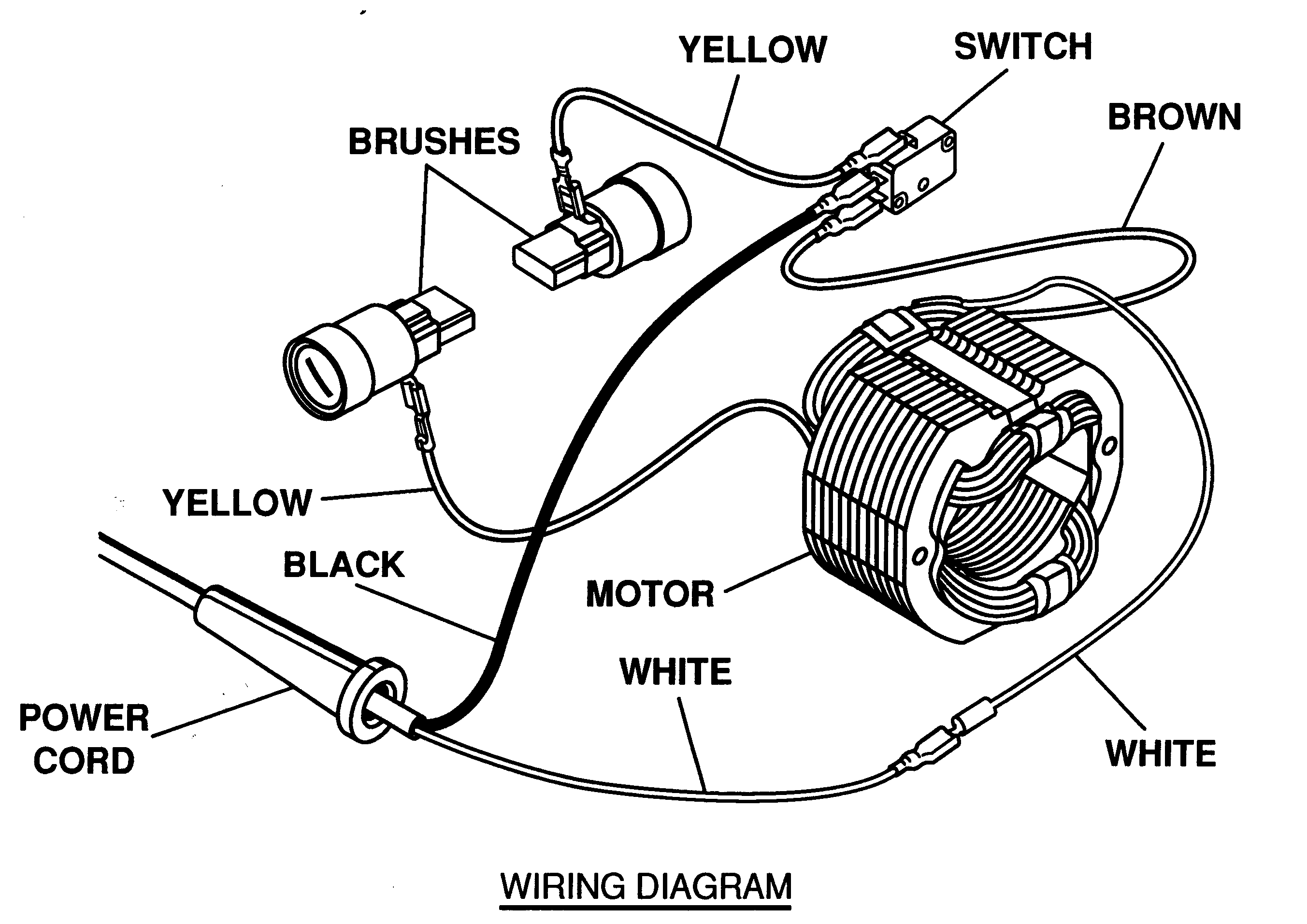

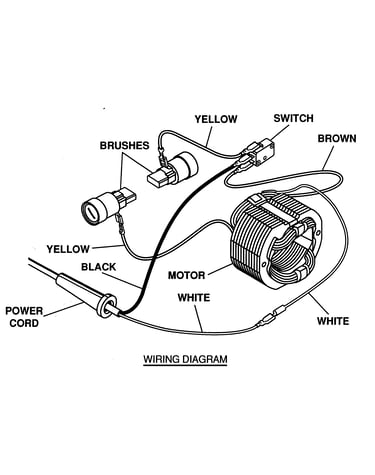

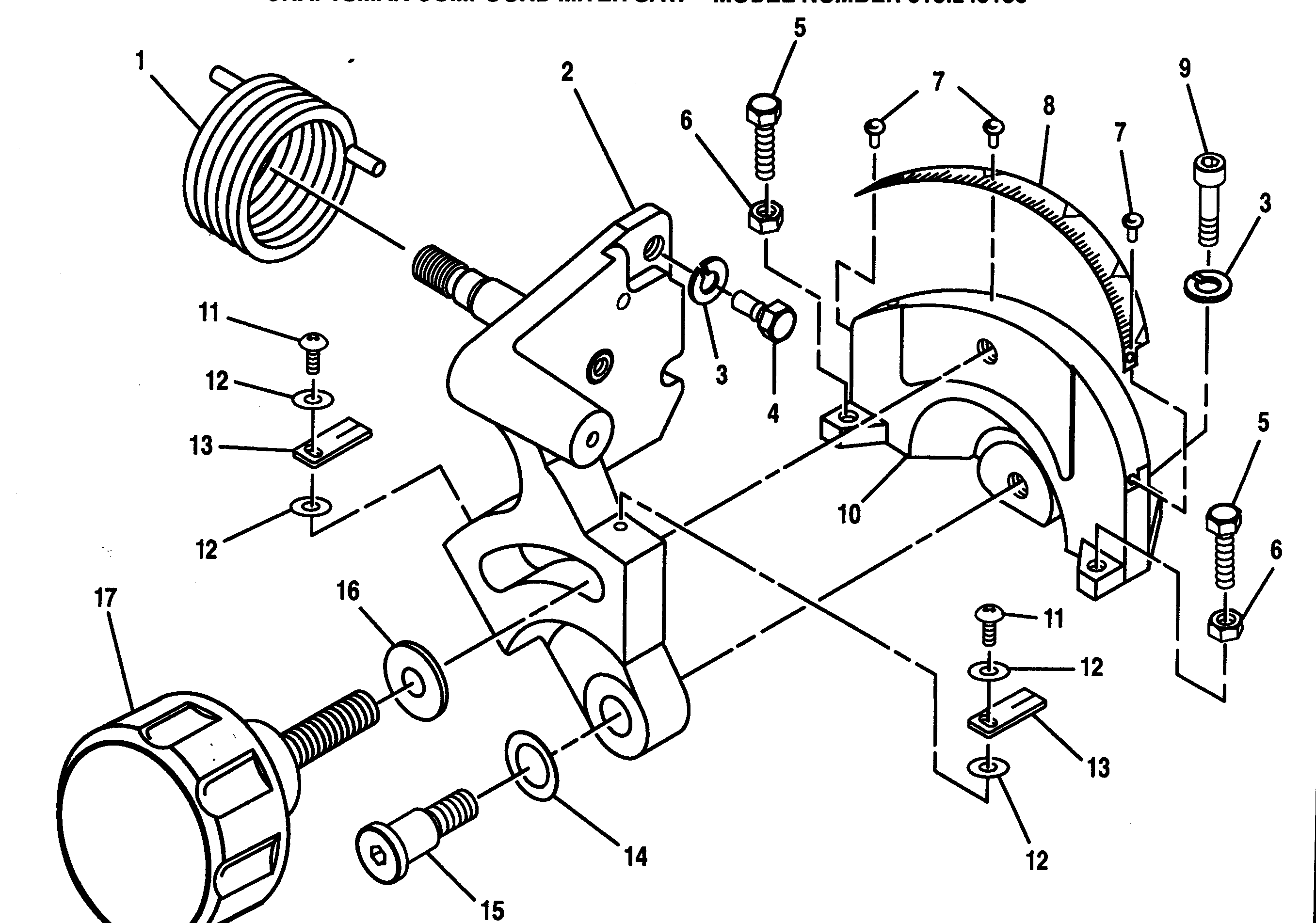

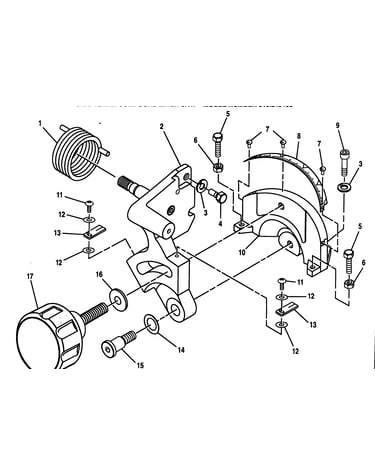

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Screw 982103-001
#5

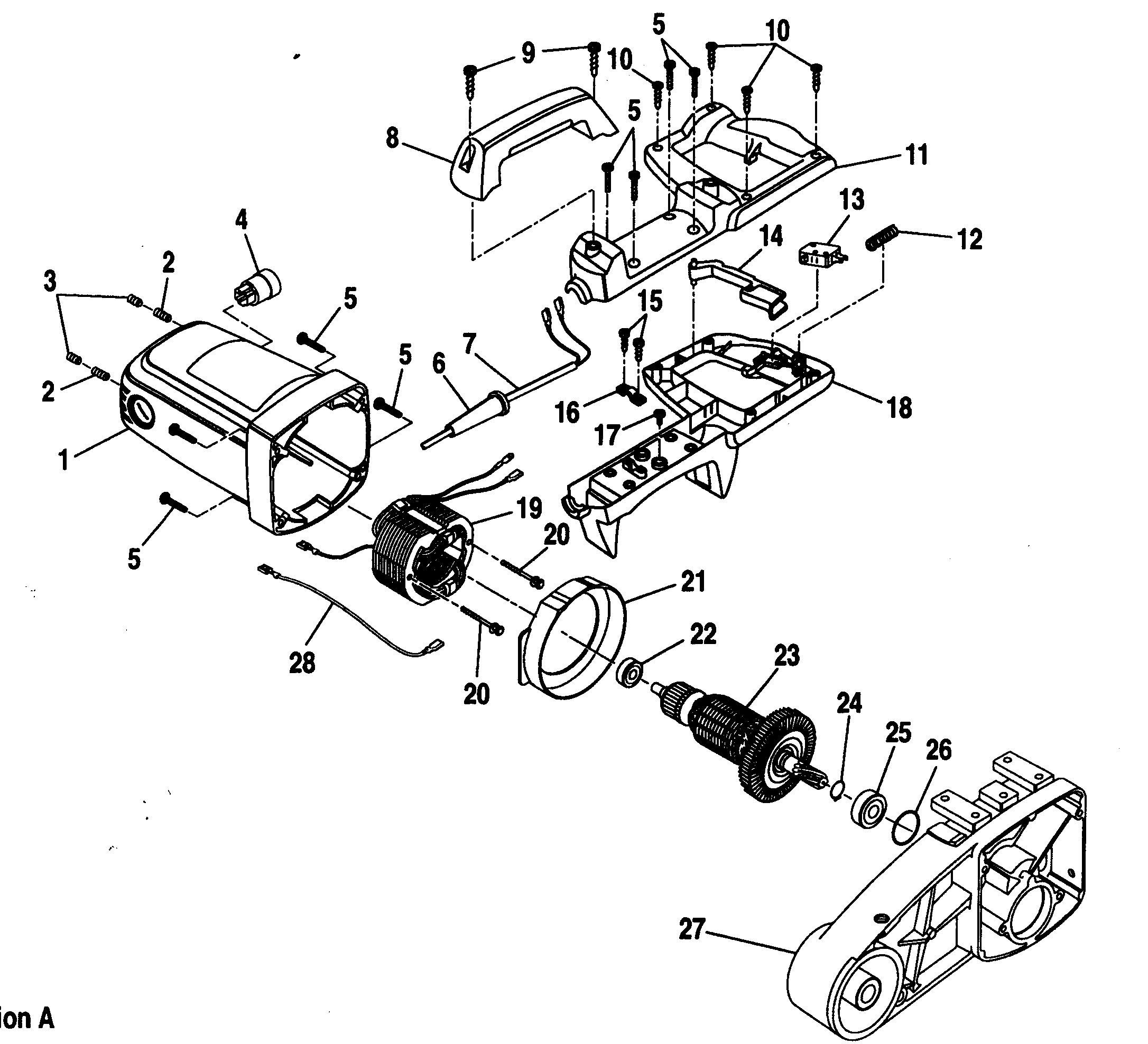

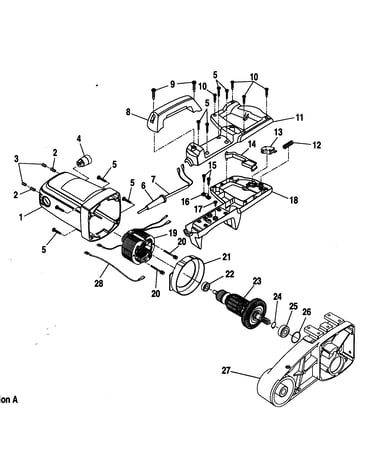

Motor assy diagram

Screw

Part #982103-001

The manufacturer no longer makes this part, and there's no substitute part

Bumper 976645-001
#5

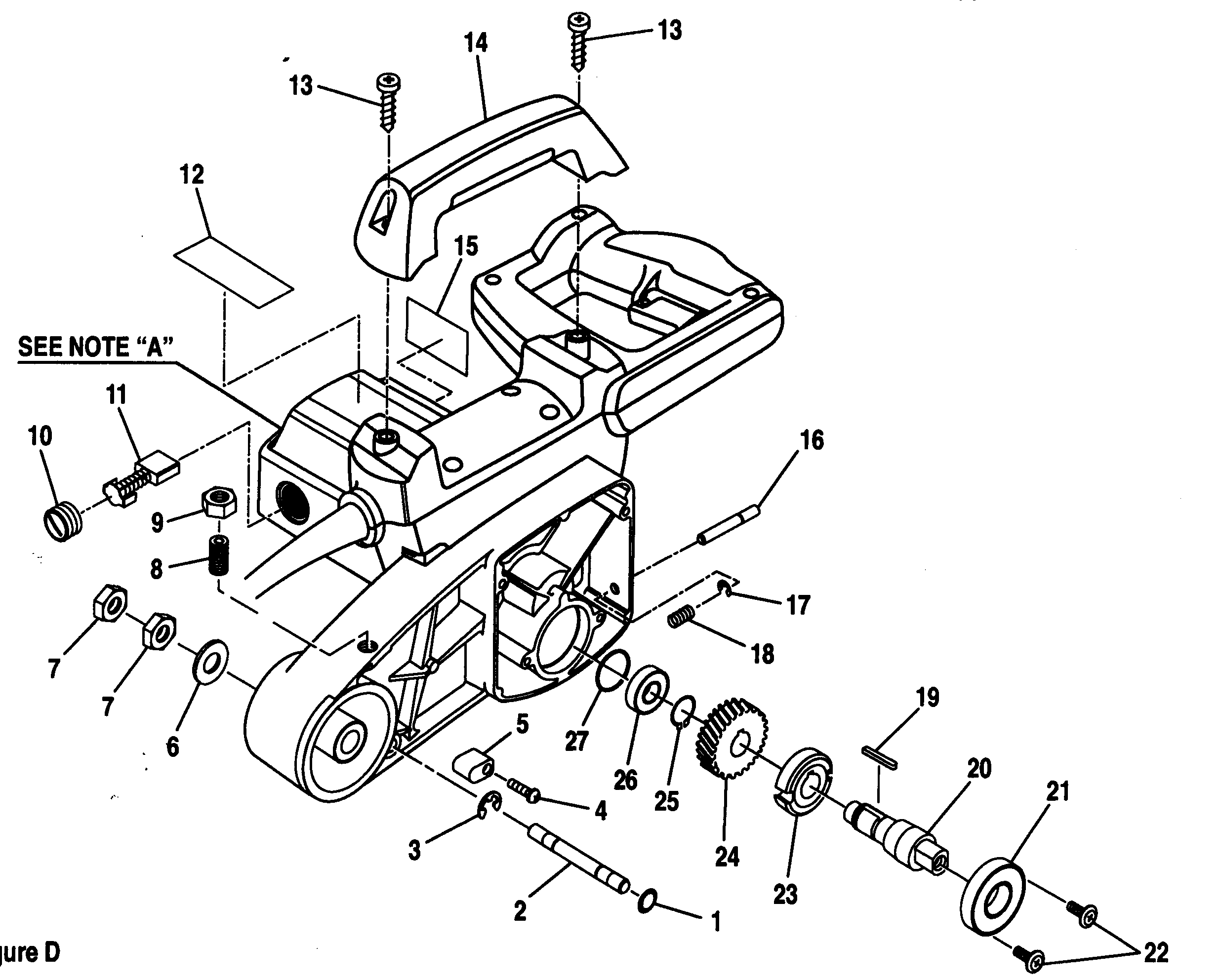

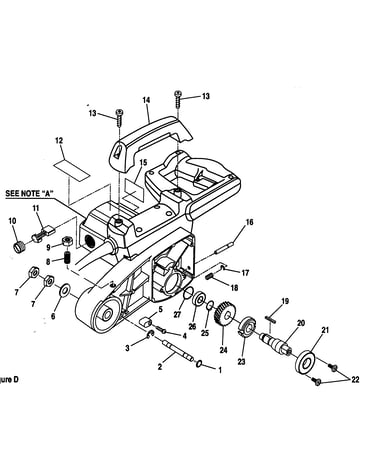

Housing assy diagram

Bumper

Part #976645-001

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer (m5) (available From Division 98-source 980.00) STD852005
#21

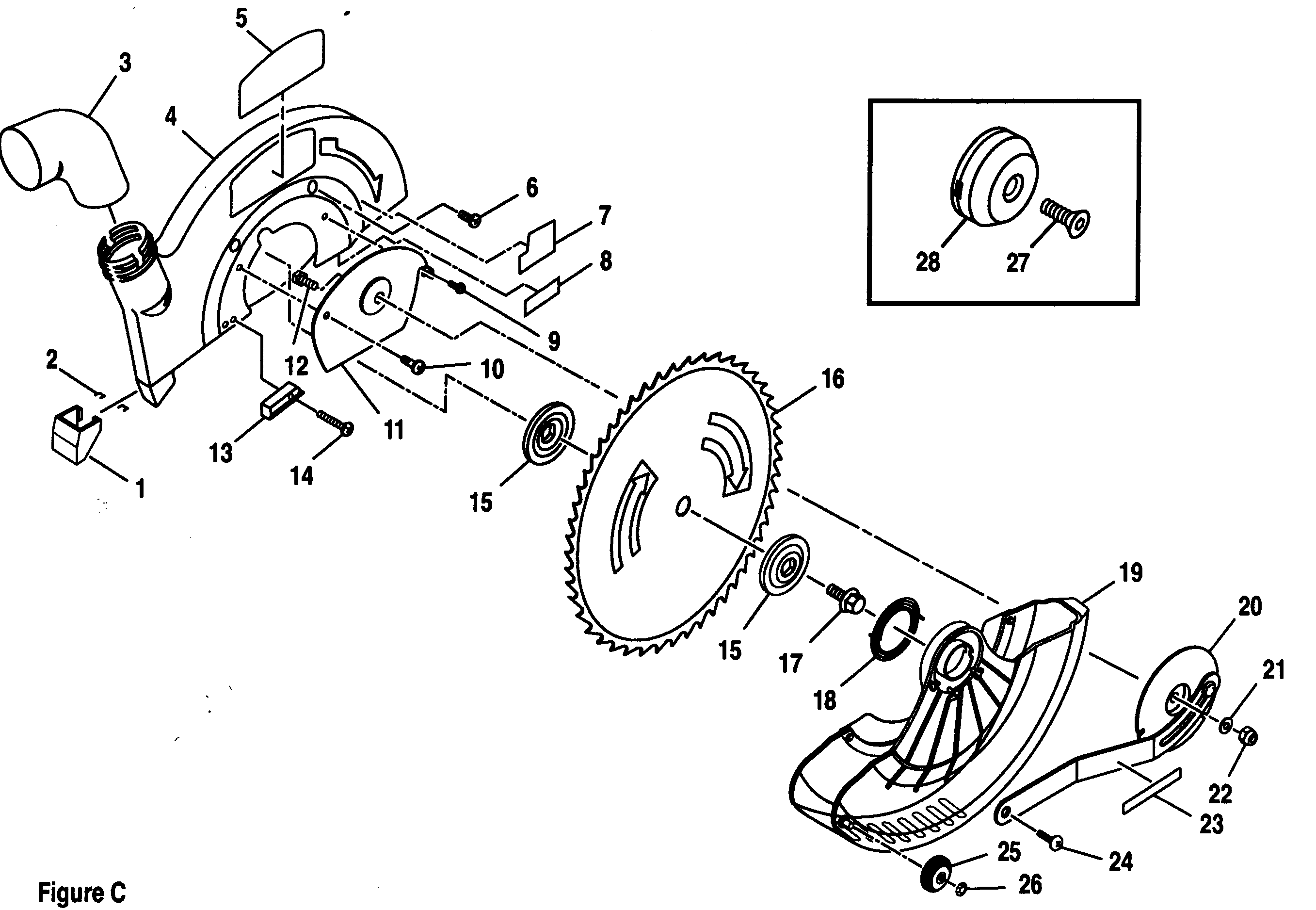

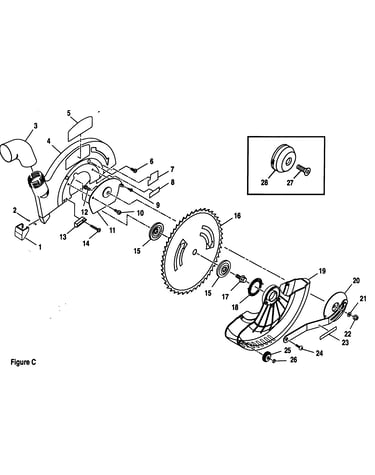

Blade guard assy diagram

Lock washer (m5) (available from division 98-source 980.00)

Part #STD852005

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Table Frame 976610-001
#30

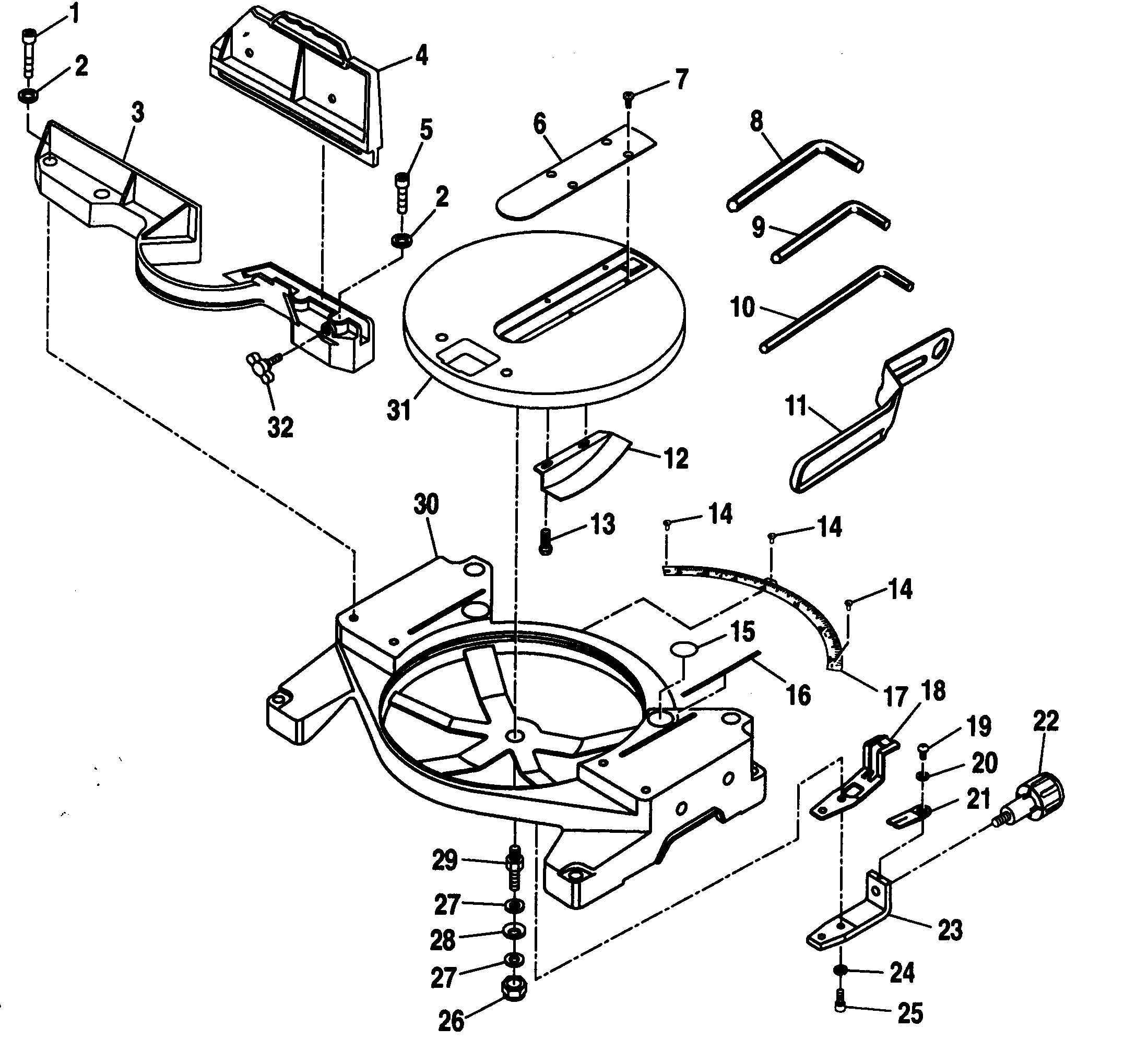

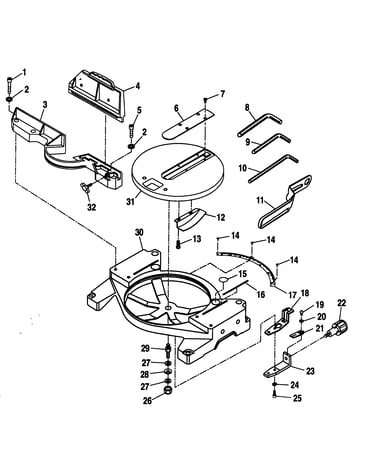

Base asy diagram

Miter saw table frame

Part #976610-001

The manufacturer no longer makes this part, and there's no substitute part

Handle 511309000
#18

Motor assy diagram

Handle

Part #511309000

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Set Screw, M5 X 5 981313-001
#3

Motor assy diagram

Miter saw set screw, m5 x 5

Part #981313-001

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Arbor Shaft Drive Gear 588028-108
#24

Housing assy diagram

Miter saw arbor shaft drive gear

Part #588028-108

The manufacturer no longer makes this part, and there's no substitute part

Blade,retail N/A
#16

Blade guard assy diagram

Blade,retail

Part #N/A

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 983000-317R
#NI

Base asy diagram

Owner's manual

Part #983000-317R

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Motor Armature 980109-001
#23

Motor assy diagram

Miter saw motor armature

Part #980109-001

The manufacturer no longer makes this part, and there's no substitute part
