Model # 706655270 Official Craftsman workbench

Here are the diagrams and repair parts for Official Craftsman 706655270 workbench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 9 of 9 parts |

#NI

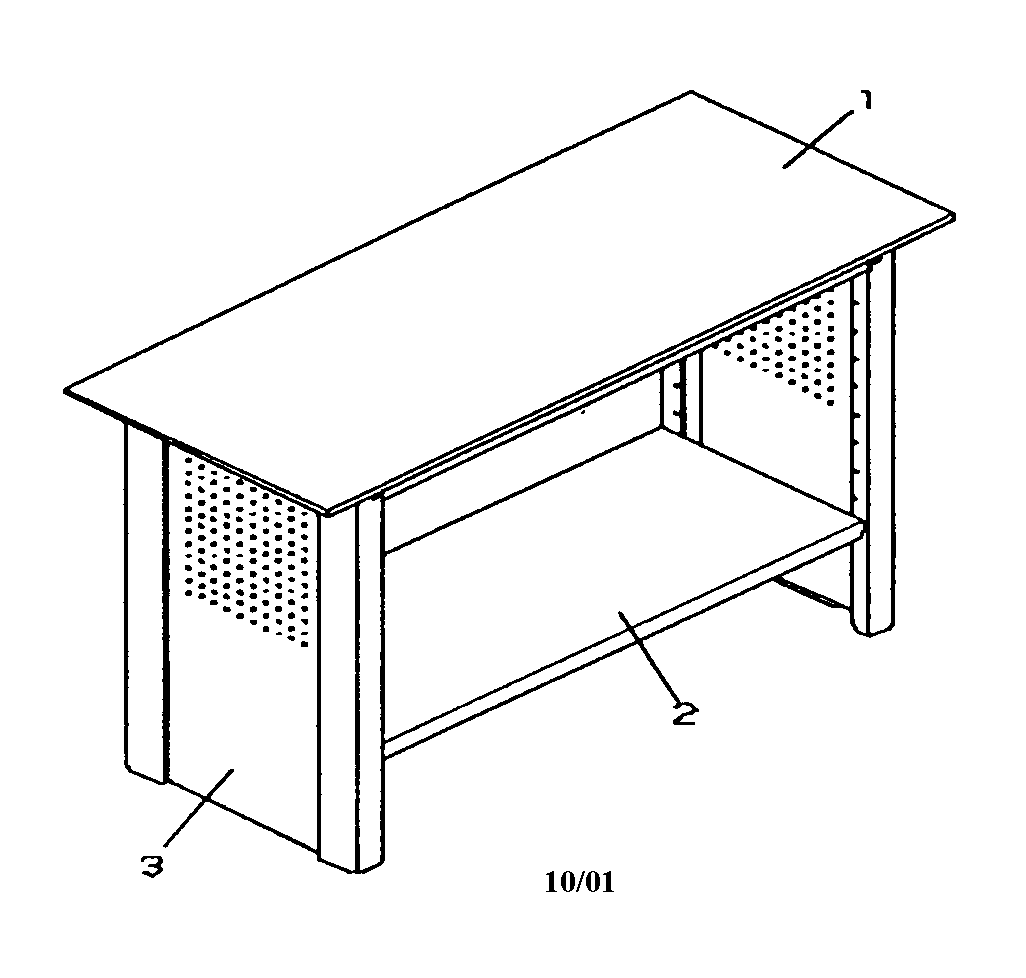

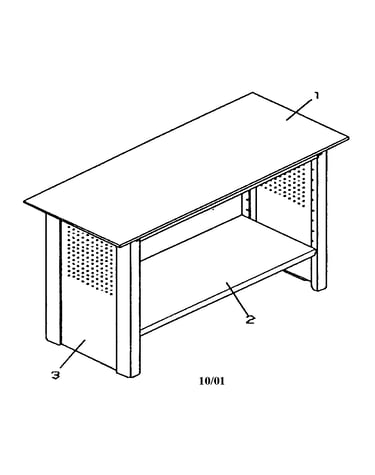

Workbench diagram

Workbench lock nut

Part #T17558

The manufacturer no longer makes this part, and there's no substitute part

#NI

Workbench diagram

Hook

Part #M7403

The manufacturer no longer makes this part, and there's no substitute part

#NI

Workbench diagram

Tool chest nameplate

Part #M13422

The manufacturer no longer makes this part, and there's no substitute part

Workbench diagram

2-way

Part #T15167-ER

The manufacturer no longer makes this part, and there's no substitute part

#NI

Workbench diagram

Rail

Part #T17580-ER

The manufacturer no longer makes this part, and there's no substitute part

Workbench diagram

Side

Part #T17582-ER

The manufacturer no longer makes this part, and there's no substitute part

#NI

Workbench diagram

Hardware

Part #A17510

The manufacturer no longer makes this part, and there's no substitute part

Workbench diagram

Top

Part #M11368

The manufacturer no longer makes this part, and there's no substitute part

#NI

Workbench diagram

Sheet

Part #F1263

The manufacturer no longer makes this part, and there's no substitute part
