Model # M-99-90 Official Yukon oil-fired furnace

Here are the diagrams and repair parts for Official Yukon M-99-90 oil-fired furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

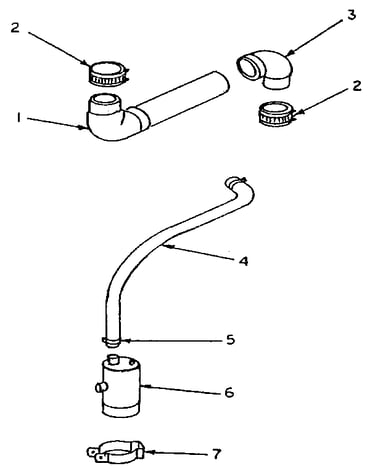

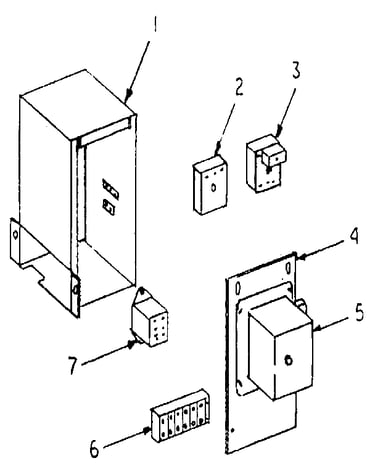

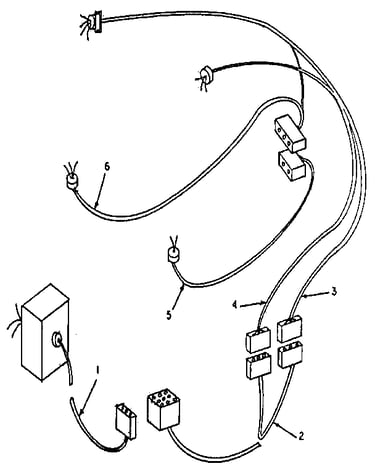

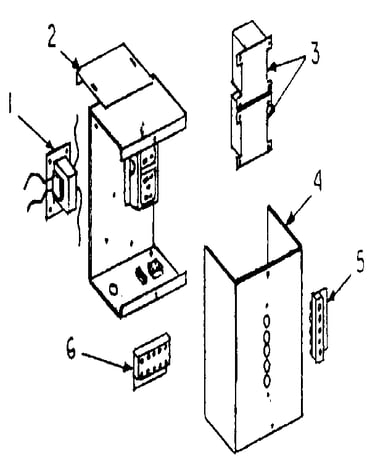

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Hvac Equipment Oil Burner Connector Tube 2454
#10

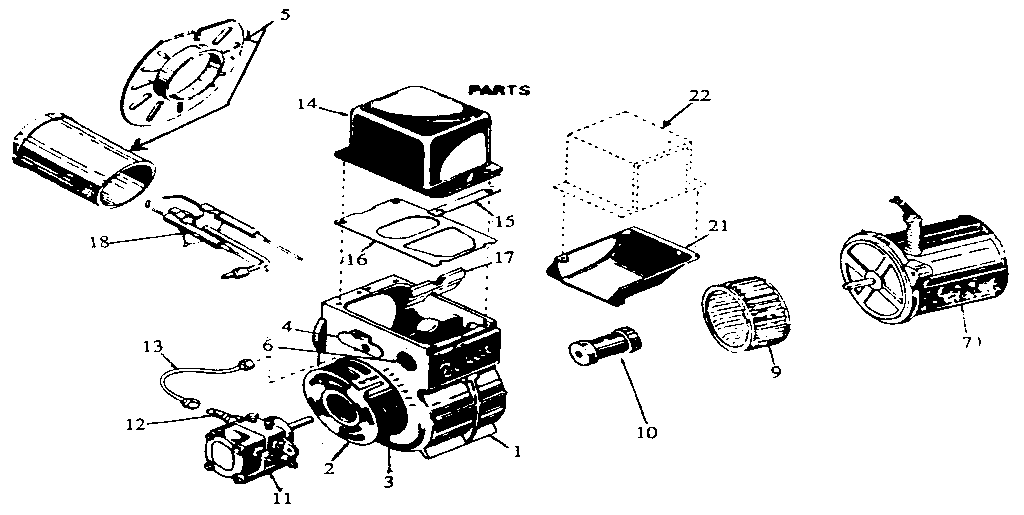

Beckett afg diagram

Hvac equipment oil burner connector tube

Part #2454

$13.80
In Stock
Wheel 2999U
#9

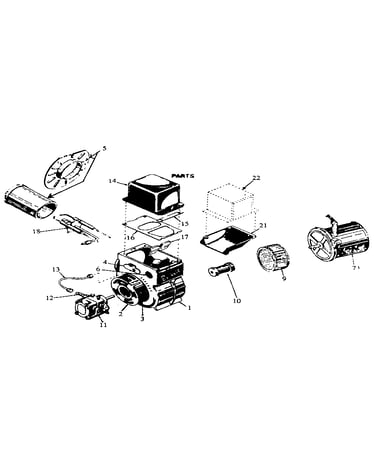

Beckett afg diagram

Wheel

Part #2999U

$42.86
In Stock
Nozzle 14455-065
#6

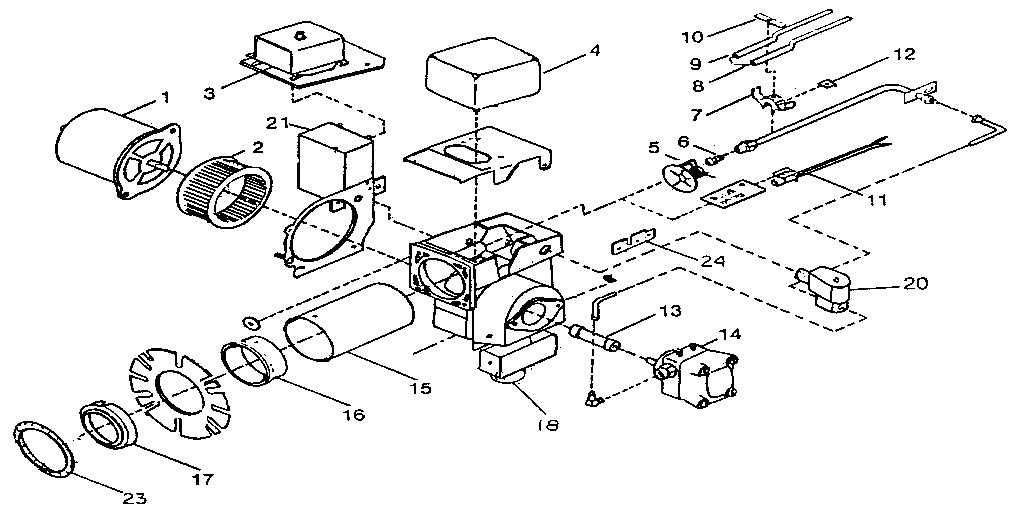

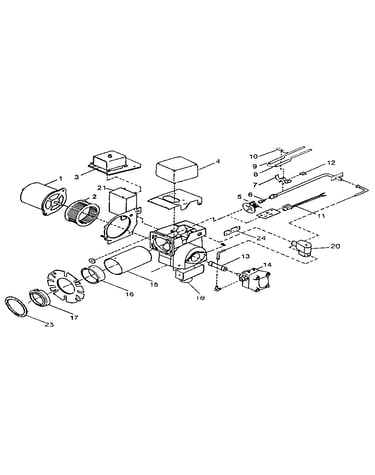

Hs burner yukon (10160000) diagram

Nozzle

Part #14455-065

The manufacturer no longer makes this part, and there's no substitute part

Primary Saftey Control R8184g 7022W
#22

Beckett afg diagram

Primary saftey control r8184g

Part #7022W

The manufacturer no longer makes this part, and there's no substitute part

Drip Shield, Motor RM10485
#16

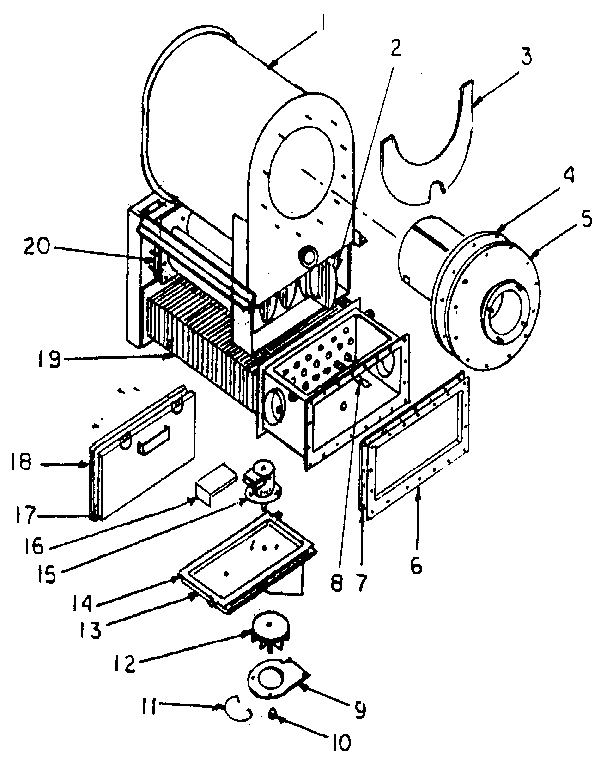

Combustion/heat exchanger/coil assembly (rm10450) diagram

Drip shield, motor

Part #RM10485

The manufacturer no longer makes this part, and there's no substitute part

Coil Top Panel Ass'y RM10430
#13

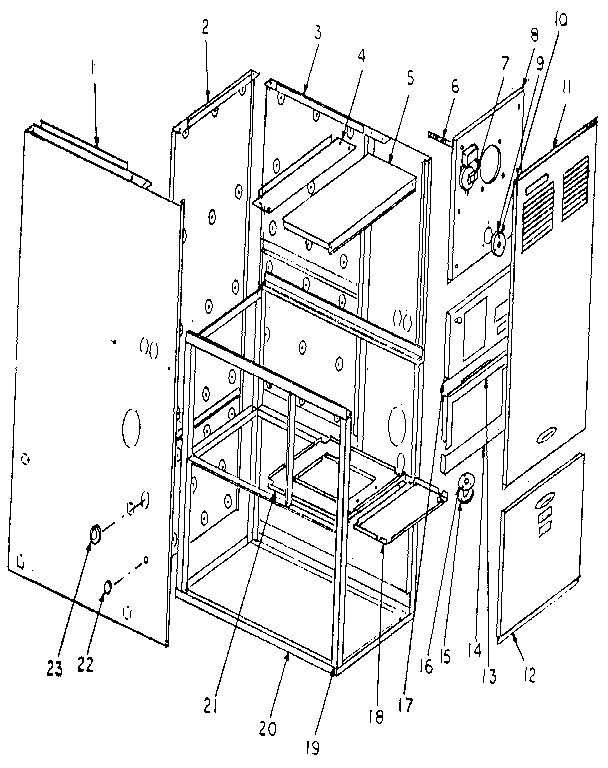

Casing assembly (rm10400) diagram

Coil top panel ass'y

Part #RM10430

The manufacturer no longer makes this part, and there's no substitute part

Therm Cap 10173200
#7

Blower assembly (rm10490) diagram

Therm cap

Part #10173200

The manufacturer no longer makes this part, and there's no substitute part

Electic Control Box Ass'y 10177500M
#21

Hs burner yukon (10160000) diagram

Electic control box ass'y

Part #10177500M

The manufacturer no longer makes this part, and there's no substitute part

Combustion Chamber Sleeve RD10034
#3

Combustion chamber ass'y (rd80087) diagram

Combustion chamber sleeve

Part #RD10034

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Heat Exchanger Rear RM10464
#20

Combustion/heat exchanger/coil assembly (rm10450) diagram

Gasket, heat exchanger rear

Part #RM10464

The manufacturer no longer makes this part, and there's no substitute part
