Craftsman
Drill Press

Model # 113213091 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 113213091 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

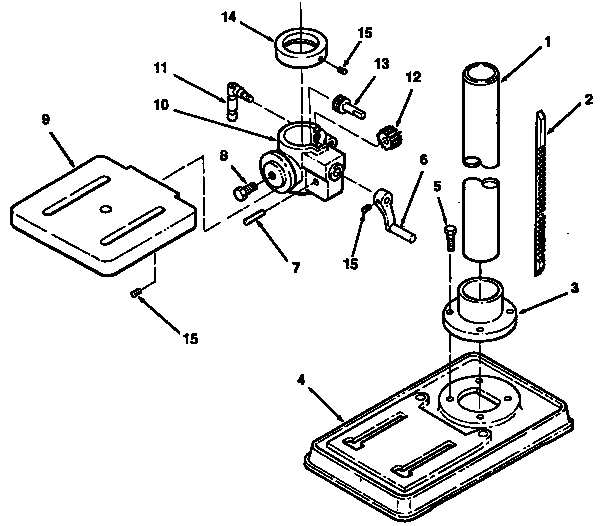

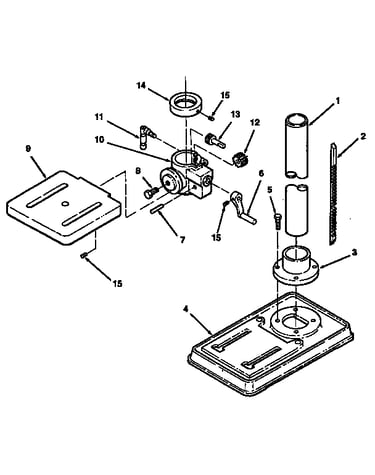

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Drill Press Tension Spring Retainer 817443
#34

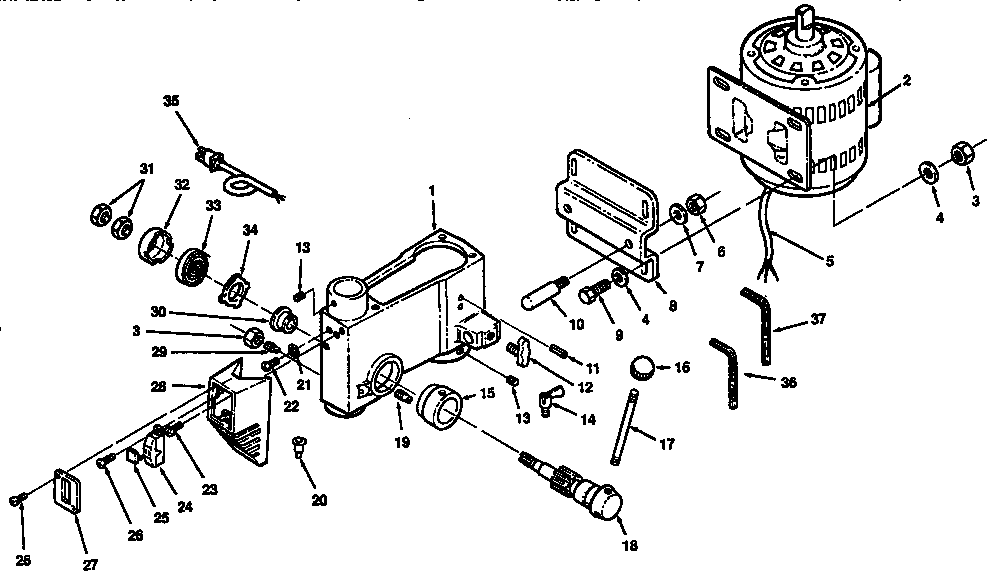

Craftsman 10" drill press diagram

Drill press tension spring retainer

Part #817443

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Belt 817428-1
#21

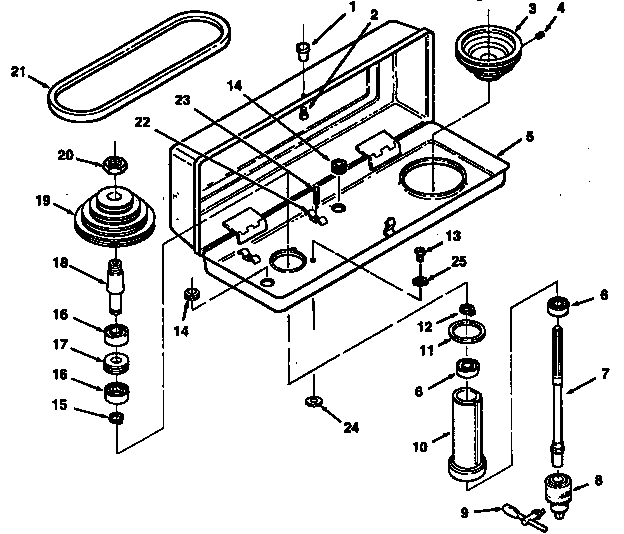

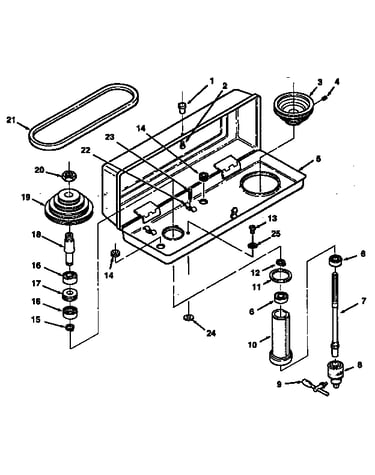

Drill press diagram

Drill press belt

Part #817428-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 816755-3
Screw

Part #816755-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 817447
#8

Drill press diagram

Screw

Part #817447

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Chuck Key (replaces 71232, 71267) 817339-1
#9

Drill press diagram

Drill press chuck key (replaces 71232, 71267)

Part #817339-1

The manufacturer no longer makes this part, and there's no substitute part

Hex Socket Screw Set, M6-1 X 10 (black) 817391-1
Hex socket screw set, m6-1 x 10 (black)

Part #817391-1

The manufacturer no longer makes this part, and there's no substitute part

Spring Torsn 817415
#33

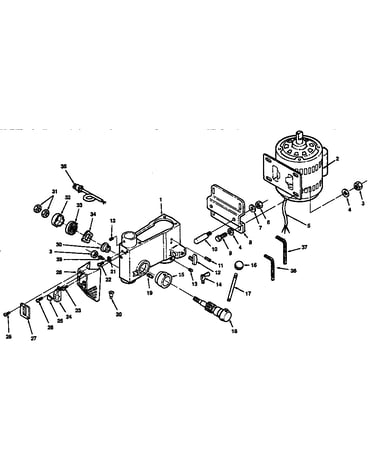

Craftsman 10" drill press diagram

Spring torsn

Part #817415

The manufacturer no longer makes this part, and there's no substitute part

Screw 816755-1
#23

Drill press diagram

Screw

Part #816755-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 817357
#26

Craftsman 10" drill press diagram

Screw

Part #817357

The manufacturer no longer makes this part, and there's no substitute part

Scrw-pan Hd 816755-4
#22

Craftsman 10" drill press diagram

Scrw-pan hd

Part #816755-4

The manufacturer no longer makes this part, and there's no substitute part
