Model # 315275000 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315275000 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Lock Assembly 612858-002
#5

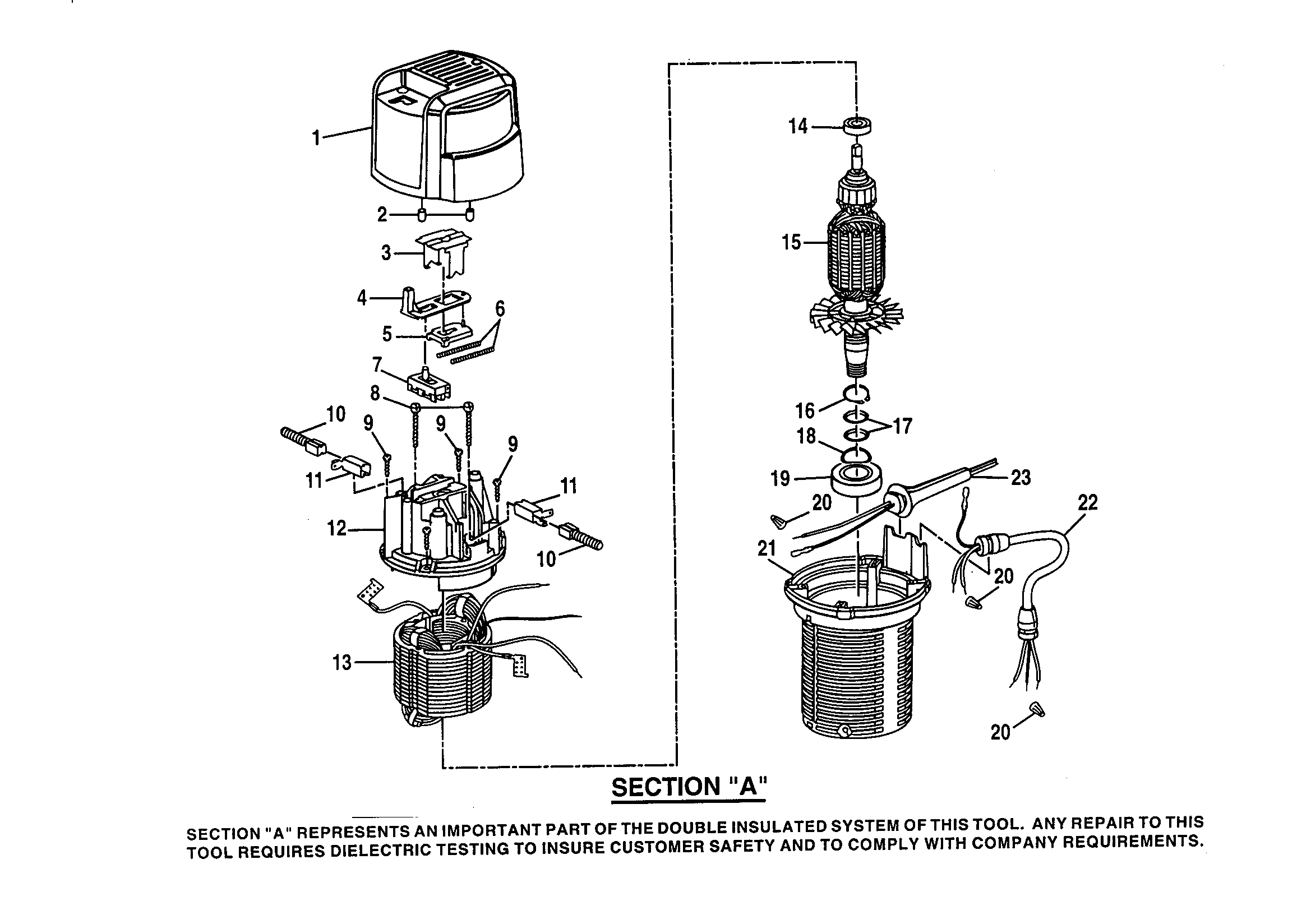

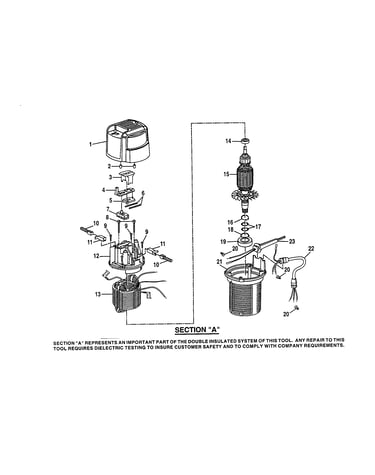

Section "a" diagram

Lock assembly

Part #612858-002

The manufacturer no longer makes this part, and there's no substitute part

Lamp Base 973986-100
#26

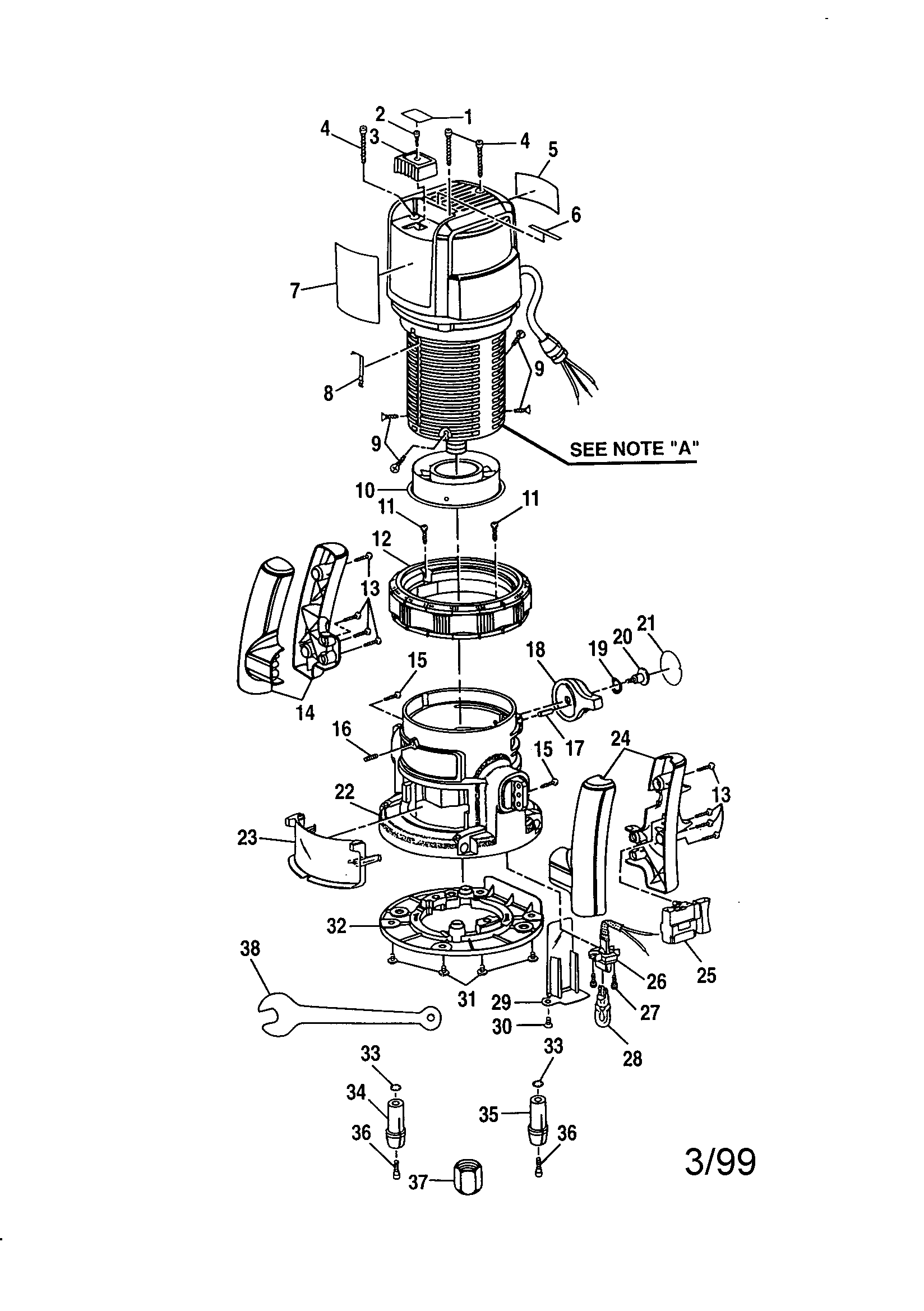

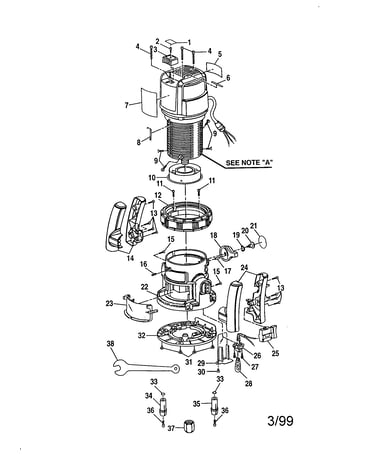

Craftsman router diagram

Lamp base

Part #973986-100

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 975779-001
#7

Craftsman router diagram

Logo plate

Part #975779-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 614661-001
#30

Craftsman router diagram

Screw

Part #614661-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 714096-807
#8

Section "a" diagram

Screw

Part #714096-807

The manufacturer no longer makes this part, and there's no substitute part

Cord,hndl 973976-002
#22

Section "a" diagram

Cord,hndl

Part #973976-002

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 990924-001
#14

Section "a" diagram

Ball brg

Part #990924-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 970712-002
#20

Craftsman router diagram

Screw

Part #970712-002

The manufacturer no longer makes this part, and there's no substitute part

Actuator 973671-001
#3

Craftsman router diagram

Actuator

Part #973671-001

The manufacturer no longer makes this part, and there's no substitute part

Retainer 607896-001
#33

Craftsman router diagram

Retainer

Part #607896-001

The manufacturer no longer makes this part, and there's no substitute part
