Model # T618 Official Nautilus t618 treadmill

Here are the diagrams and repair parts for Official Nautilus T618 t618 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Console 8009317
#1

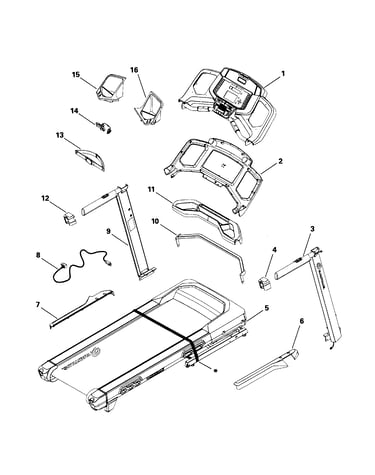

Main asy diagram

Console

Part #8009317

The manufacturer no longer makes this part, and there's no substitute part

Treadmill Safety Key 8006259
#14

Main asy diagram

Treadmill safety key

Part #8006259

The manufacturer no longer makes this part, and there's no substitute part

Mcba 8009112
#NI

Main asy diagram

Mcba

Part #8009112

The manufacturer no longer makes this part, and there's no substitute part

Treadmill Wire Harness, Lower 8011992
#NI

Main asy diagram

Treadmill wire harness, lower

Part #8011992

The manufacturer no longer makes this part, and there's no substitute part

Wheel Deck 8005218
#NI

Main asy diagram

Wheel deck

Part #8005218

The manufacturer no longer makes this part, and there's no substitute part

Rear Rolle 8009212
#NI

Main asy diagram

Rear rolle

Part #8009212

The manufacturer no longer makes this part, and there's no substitute part

Cable 8011990
#NI

Main asy diagram

Cable

Part #8011990

The manufacturer no longer makes this part, and there's no substitute part

Tube-shock 8009225
#NI

Main asy diagram

Tube-shock

Part #8009225

The manufacturer no longer makes this part, and there's no substitute part

Mtr Cover 8010052
#NI

Main asy diagram

Mtr cover

Part #8010052

The manufacturer no longer makes this part, and there's no substitute part

Cover-junc 8009293
#NI

Main asy diagram

Cover-junc

Part #8009293

The manufacturer no longer makes this part, and there's no substitute part
