Snapper
Lawn Vacuum

Model # SV25650B Official Snapper yard vacuum

Here are the diagrams and repair parts for Official Snapper SV25650B yard vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Fln 5/16-18 7091601
#7

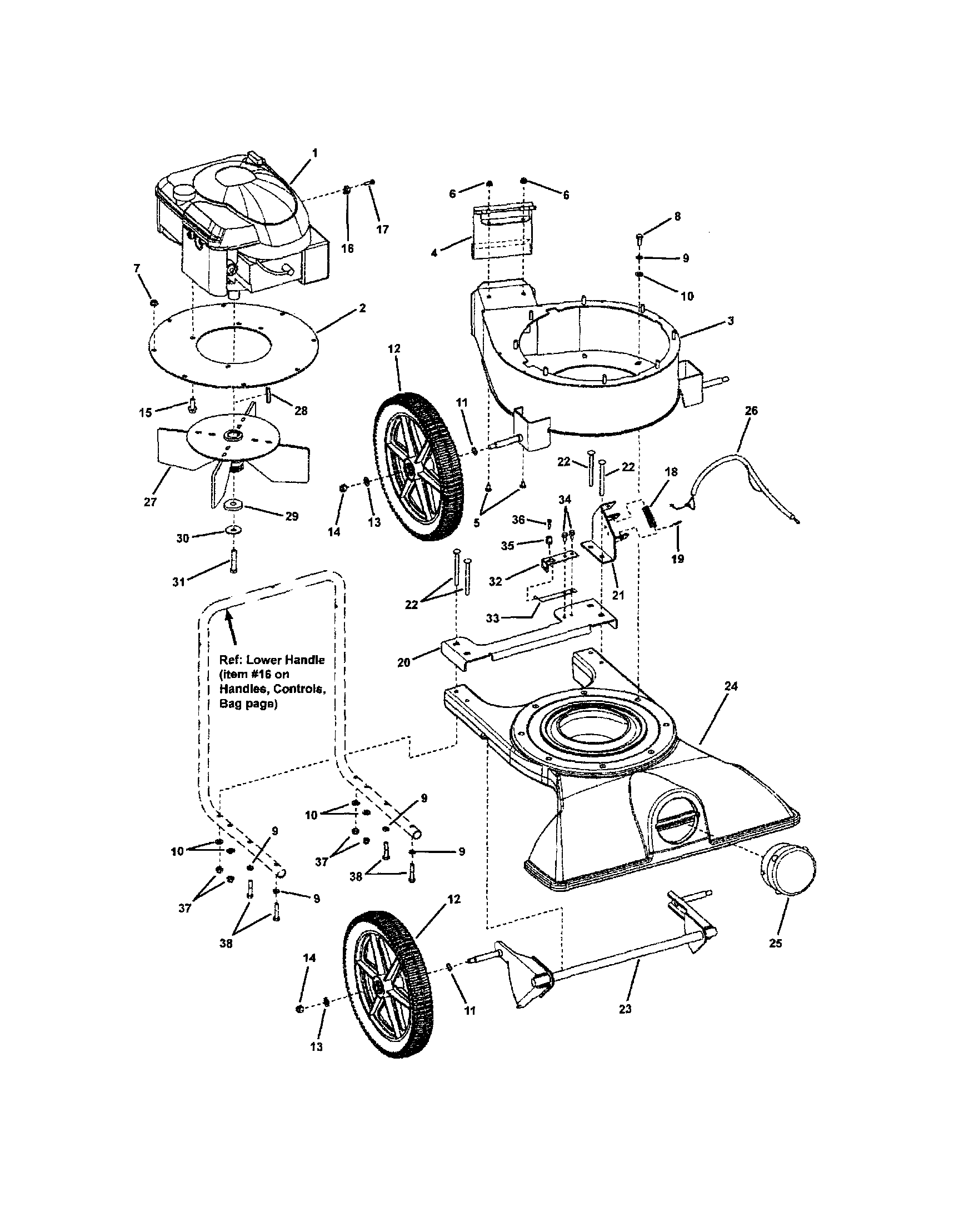

Engine/impeller/housing/wheels diagram

Fln 5/16-18

Part #7091601

Replaced by #703409

?
Manufacturer substitution
This part replaces 7091601. Substitute parts can look different from the original.
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Fw, .28x.63x 7091294
#9

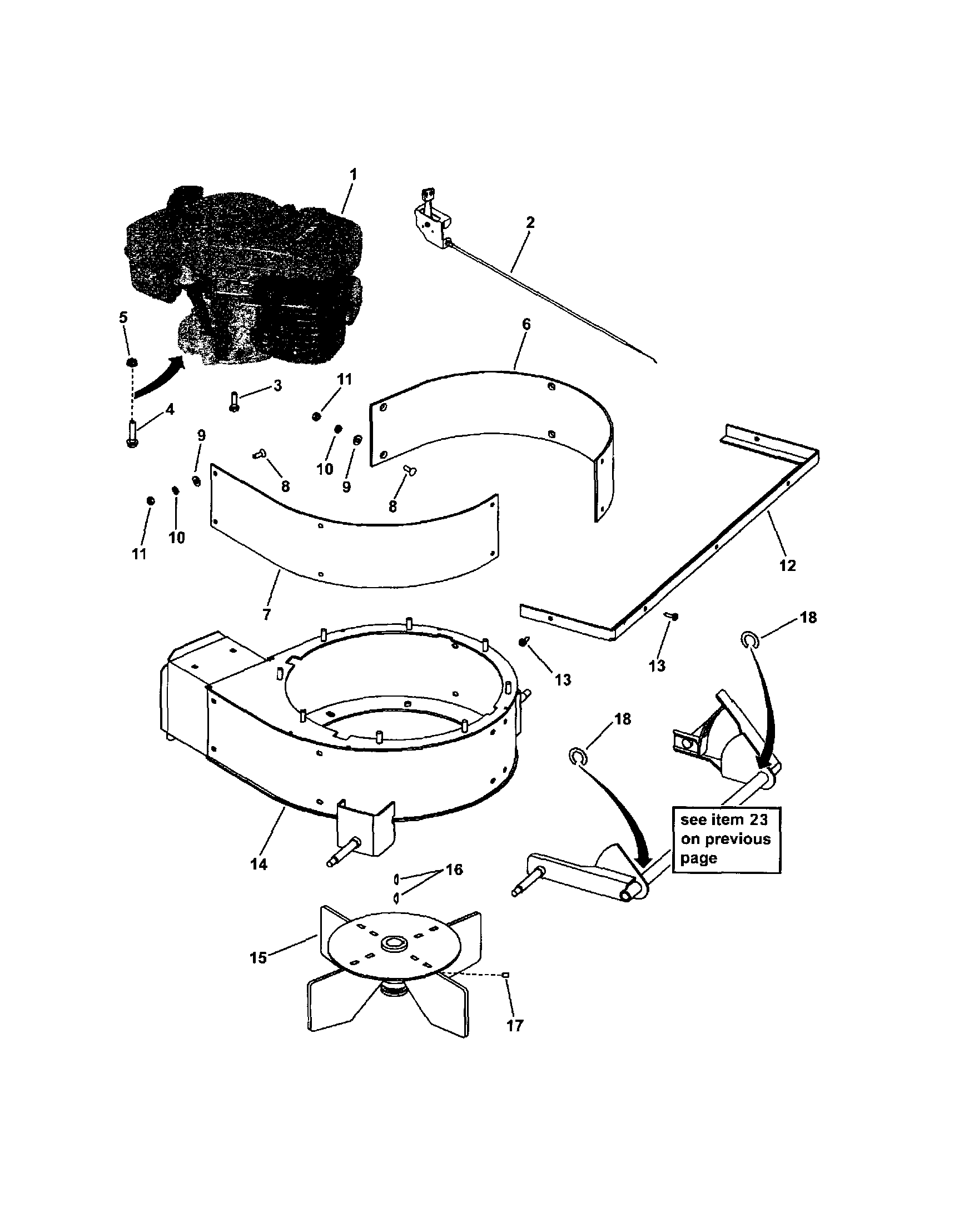

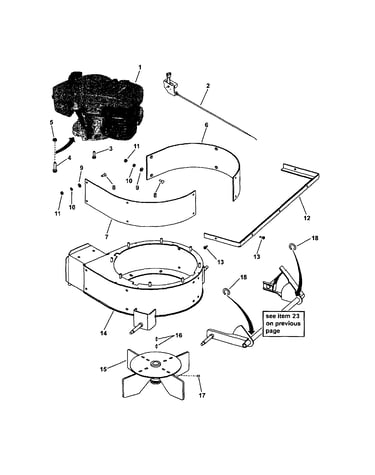

Commercial components diagram

Fw, .28x.63x

Part #7091294

Replaced by #703332

?
Manufacturer substitution
This part replaces 7091294. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer, 11/32 X 11/16 X 1/16-in 7090188
#10

Engine/impeller/housing/wheels diagram

Washer, 11/32 x 11/16 x 1/16-in

Part #7090188

Replaced by #703350

?
Manufacturer substitution
This part replaces 7090188. Substitute parts can look different from the original.
This item is not returnable
$7.60
In Stock
Knob 7035744
#15

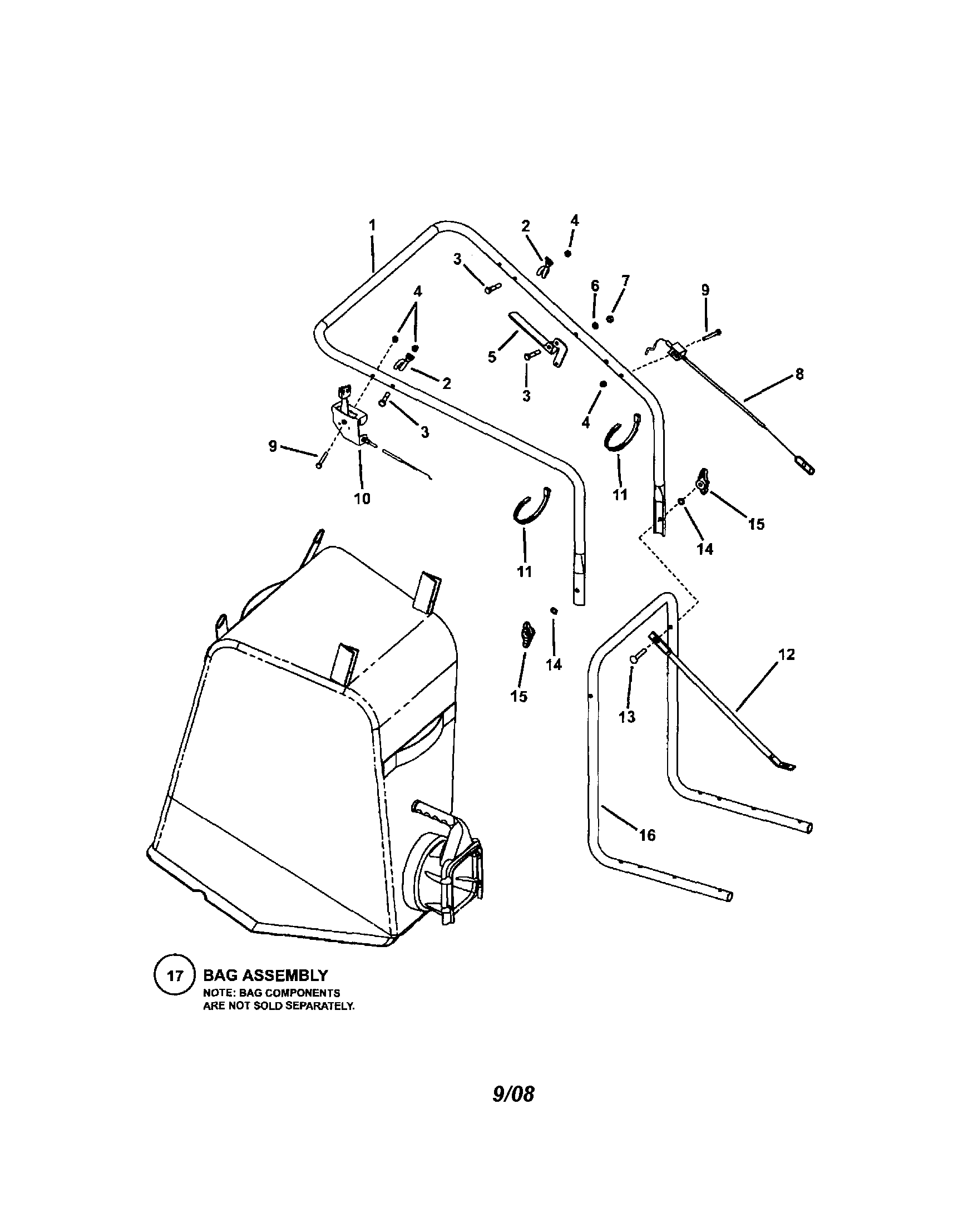

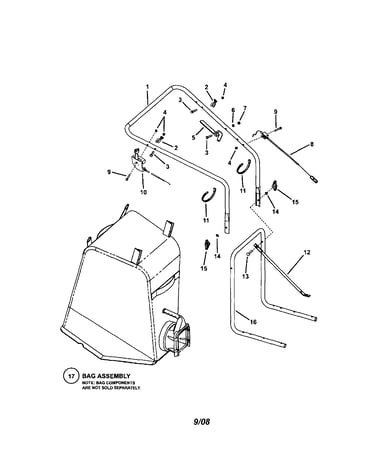

Handles/controls/bag diagram

Knob

Part #7035744

Replaced by #703065

?
Manufacturer substitution
This part replaces 7035744. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Vacuum Liner 7075889
#7

Commercial components diagram

Vacuum liner

Part #7075889

Replaced by #7075889YP

?
Manufacturer substitution
This part replaces 7075889. Substitute parts can look different from the original.
$81.13
In Stock
Bracket 7022779
#2

Handles/controls/bag diagram

Bracket

Part #7022779

Replaced by #7022779YP

?
Manufacturer substitution
This part replaces 7022779. Substitute parts can look different from the original.
$13.63
In Stock
Hex Head Cap Screw 7090505
#9

Handles/controls/bag diagram

Hex head cap screw

Part #7090505

Replaced by #703163

?
Manufacturer substitution
This part replaces 7090505. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Washer 7026257
#11

Engine/impeller/housing/wheels diagram

Washer

Part #7026257

Replaced by #7026257MA

?
Manufacturer substitution
This part replaces 7026257. Substitute parts can look different from the original.
$7.60
In Stock
Slw, .263x.3 7027223
#10

Commercial components diagram

Slw, .263x.3

Part #7027223

Replaced by #7027223SM

?
Manufacturer substitution
This part replaces 7027223. Substitute parts can look different from the original.
This item is not returnable
$6.89
In Stock
Decal 7029784
#9

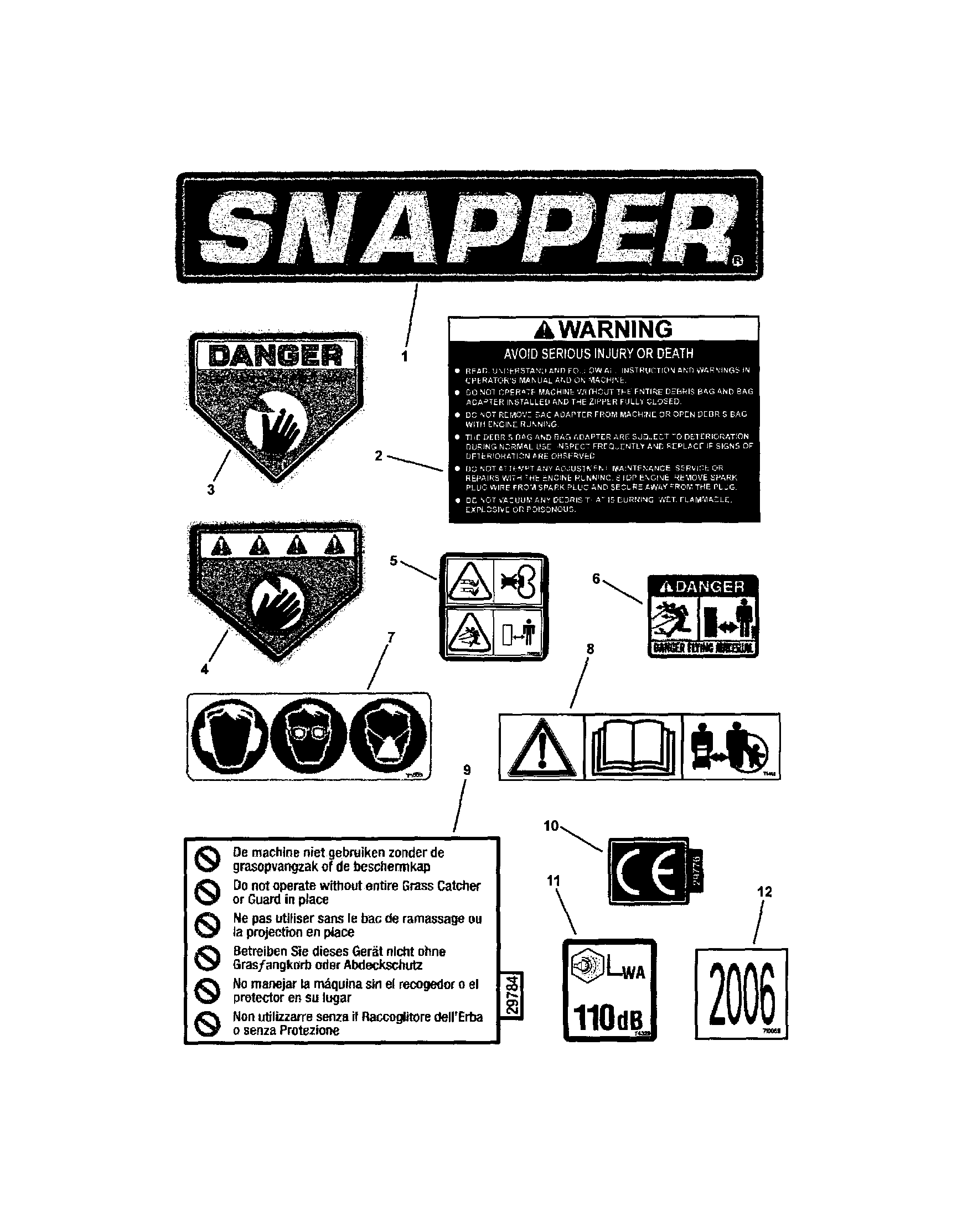

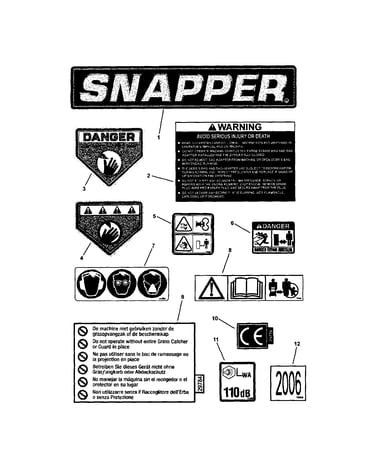

Decals diagram

Decal

Part #7029784

Replaced by #7029784SM

?
Manufacturer substitution
This part replaces 7029784. Substitute parts can look different from the original.
$10.63
In Stock
