Murray
Complete Deck

Model # 403334A Official Murray mower deck

Here are the diagrams and repair parts for Official Murray 403334A mower deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

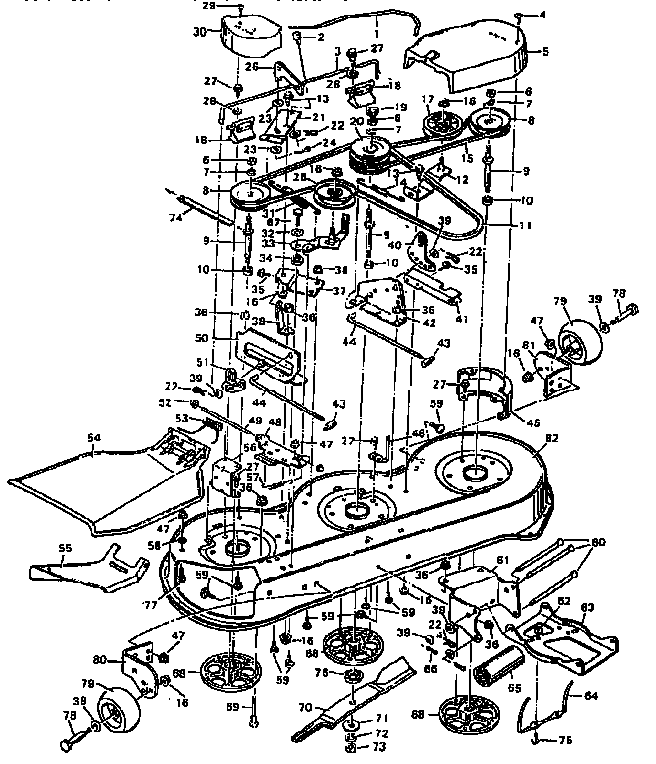

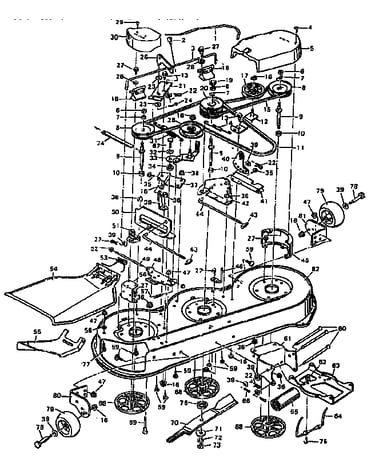

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Nut 15X79Z

#36

All parts diagram

Nut

Part #15X79Z

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2X53Z

#59

All parts diagram

Bolt

Part #2X53Z

The manufacturer no longer makes this part, and there's no substitute part

Housing 90905

#68

All parts diagram

Housing

Part #90905

Replaced by #492574MA

?
Manufacturer substitution
This part replaces 90905. Substitute parts can look different from the original.
$68.99
7% OFF Phone Price : $73.99
In Stock
Jackshaft 91921

#9

All parts diagram

Jackshaft

Part #91921

Replaced by #491921MA

?
Manufacturer substitution
This part replaces 91921. Substitute parts can look different from the original.
This item is not returnable
$29.18
15% OFF Phone Price : $34.18
In Stock
Washer 17X166

#71

All parts diagram

Washer

Part #17X166

Replaced by #17X166MA

?
Manufacturer substitution
This part replaces 17X166. Substitute parts can look different from the original.
This item is not returnable
$22.49
18% OFF Phone Price : $27.49
In Stock
Washer 17X165

#72

All parts diagram

Washer

Part #17X165

Replaced by #17X165MA

?
Manufacturer substitution
This part replaces 17X165. Substitute parts can look different from the original.
This item is not returnable
$28.09
15% OFF Phone Price : $33.09
In Stock
Idler Pulley 91801

#25

All parts diagram

Idler pulley

Part #91801

Replaced by #091801MA

?
Manufacturer substitution
This part replaces 91801. Substitute parts can look different from the original.
$32.50
13% OFF Phone Price : $37.50
In Stock
Lock Nut 15X84

#16

All parts diagram

Lock nut

Part #15X84

Replaced by #703893

?
Manufacturer substitution
This part replaces 15X84. Substitute parts can look different from the original.
This item is not returnable
$11.29
15% OFF Phone Price : $13.29
In Stock
Nut 15X100

#73

All parts diagram

Nut

Part #15X100

Replaced by #15X100MA

?
Manufacturer substitution
This part replaces 15X100. Substitute parts can look different from the original.
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Washer 18X33

#7

All parts diagram

Washer

Part #18X33

Replaced by #18X33MA

?
Manufacturer substitution
This part replaces 18X33. Substitute parts can look different from the original.
This item is not returnable
In Stock
