Craftsman
Power Pruner

Model # 32074431 Official Craftsman cordless pruner

Here are the diagrams and repair parts for Official Craftsman 32074431 cordless pruner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Guard 3124984001
#33

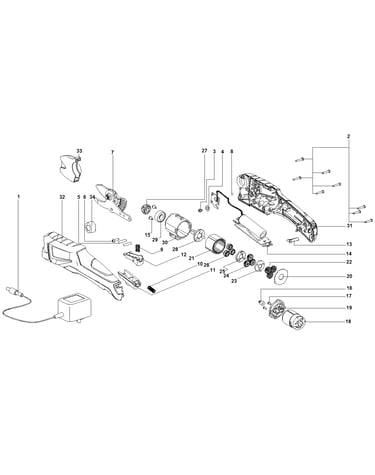

Pruner diagram

Guard

Part #3124984001

The manufacturer no longer makes this part, and there's no substitute part

Turntable 3520106002
#23

Pruner diagram

Turntable

Part #3520106002

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 3124985001
#30

Pruner diagram

Gear case

Part #3124985001

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw 5610023005
#6

Pruner diagram

Tap screw

Part #5610023005

The manufacturer no longer makes this part, and there's no substitute part

Ring Gear 3520487001
#21

Pruner diagram

Ring gear

Part #3520487001

The manufacturer no longer makes this part, and there's no substitute part

Trigger,sw 3125051002
#12

Pruner diagram

Trigger,sw

Part #3125051002

The manufacturer no longer makes this part, and there's no substitute part

Pin 5670214001
#5

Pruner diagram

Pin

Part #5670214001

The manufacturer no longer makes this part, and there's no substitute part

Gear Cover 3124980001
#19

Pruner diagram

Gear cover

Part #3124980001

The manufacturer no longer makes this part, and there's no substitute part

Gear 3120816002
#22

Pruner diagram

Gear

Part #3120816002

The manufacturer no longer makes this part, and there's no substitute part

Sun Gear 3520485001
#25

Pruner diagram

Sun gear

Part #3520485001

The manufacturer no longer makes this part, and there's no substitute part
