Model # 66Q4 Official Bissell proheat 2x

Here are the diagrams and repair parts for Official Bissell 66Q4 proheat 2x, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Upper Handle 2037333
#11A

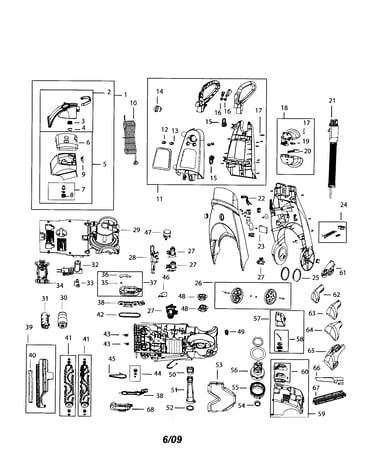

Proheat 2x diagram

Upper handle

Part #2037333

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cover 2036846
#29

Proheat 2x diagram

Vacuum cover

Part #2036846

The manufacturer no longer makes this part, and there's no substitute part

Tube 2036818

#NI04

All parts diagram

Tube

Part #2036818

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Hose Rack Assembly 2036690
#18

Proheat 2x diagram

Carpet cleaner hose rack assembly

Part #2036690

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cover 2037336
#59A

Proheat 2x diagram

Vacuum cover

Part #2037336

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Tank Cap And Insert 2036677
#58

Proheat 2x diagram

Carpet cleaner solution tank cap and insert

Part #2036677

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Handle Assembly (red) 2036963
#11

Proheat 2x diagram

Carpet cleaner handle assembly (red)

Part #2036963

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Base Nozzle Gasket 2036695
#40

Proheat 2x diagram

Carpet cleaner base nozzle gasket

Part #2036695

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Vacuum Motor 2036731
#56

Proheat 2x diagram

Carpet cleaner vacuum motor

Part #2036731

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Electronic Circuit Board 2036805
#23

Proheat 2x diagram

Carpet cleaner electronic circuit board

Part #2036805

The manufacturer no longer makes this part, and there's no substitute part
