Goldstar
Microwave/Hood Combo

Model # MV-1735W Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV-1735W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

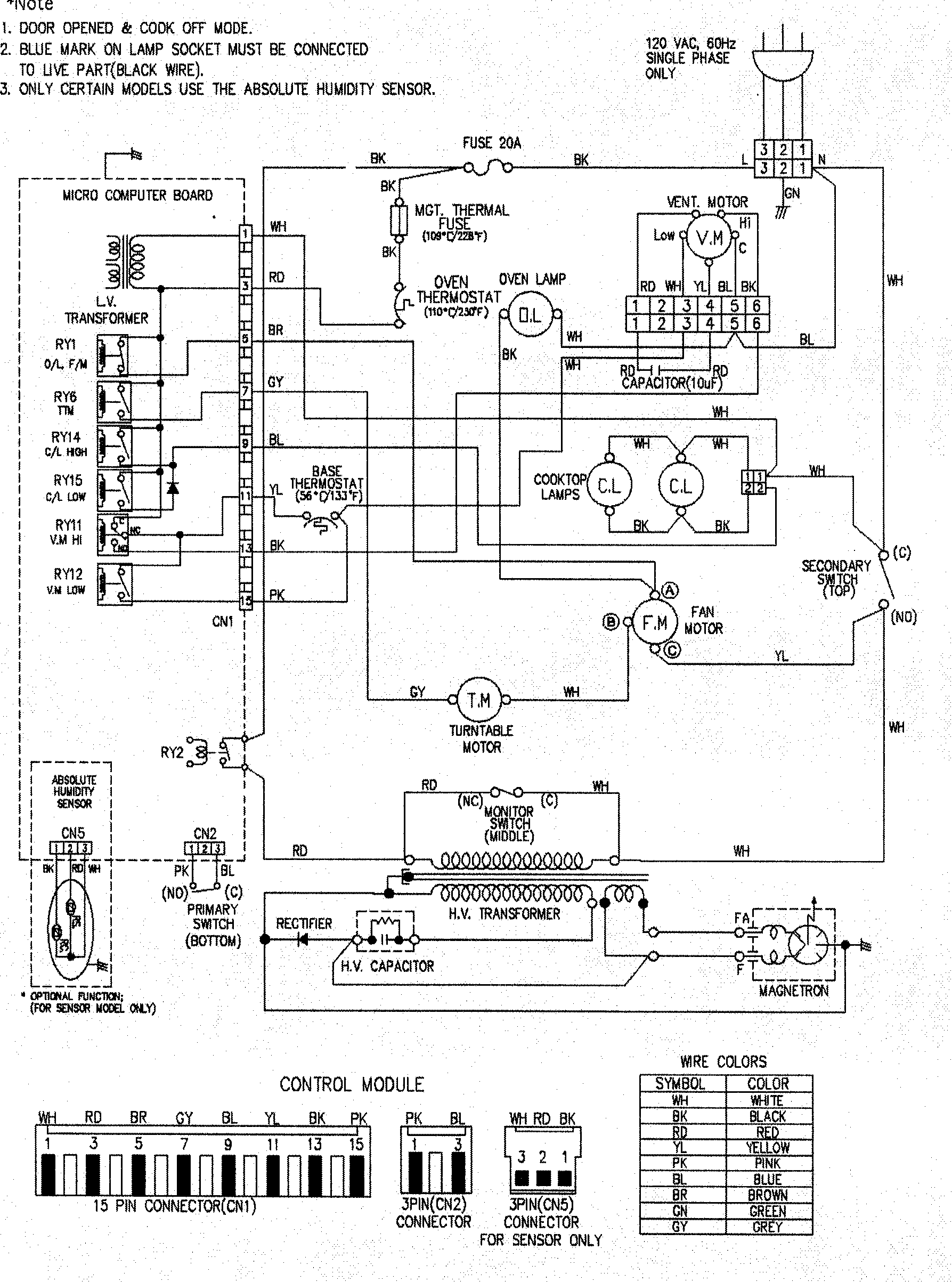

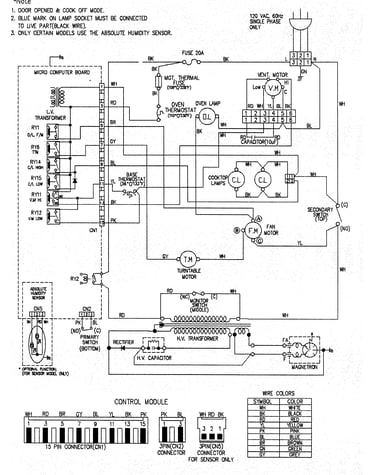

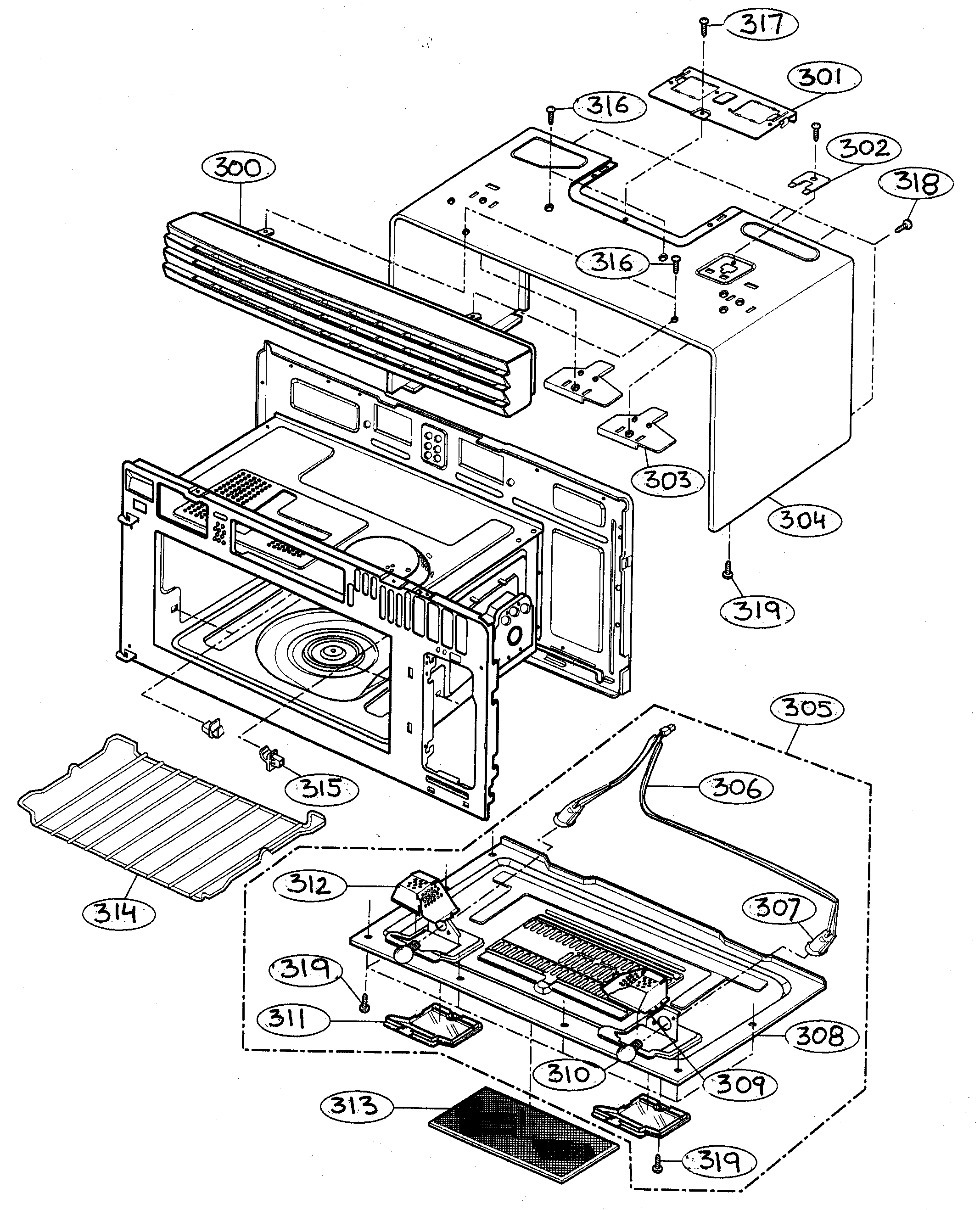

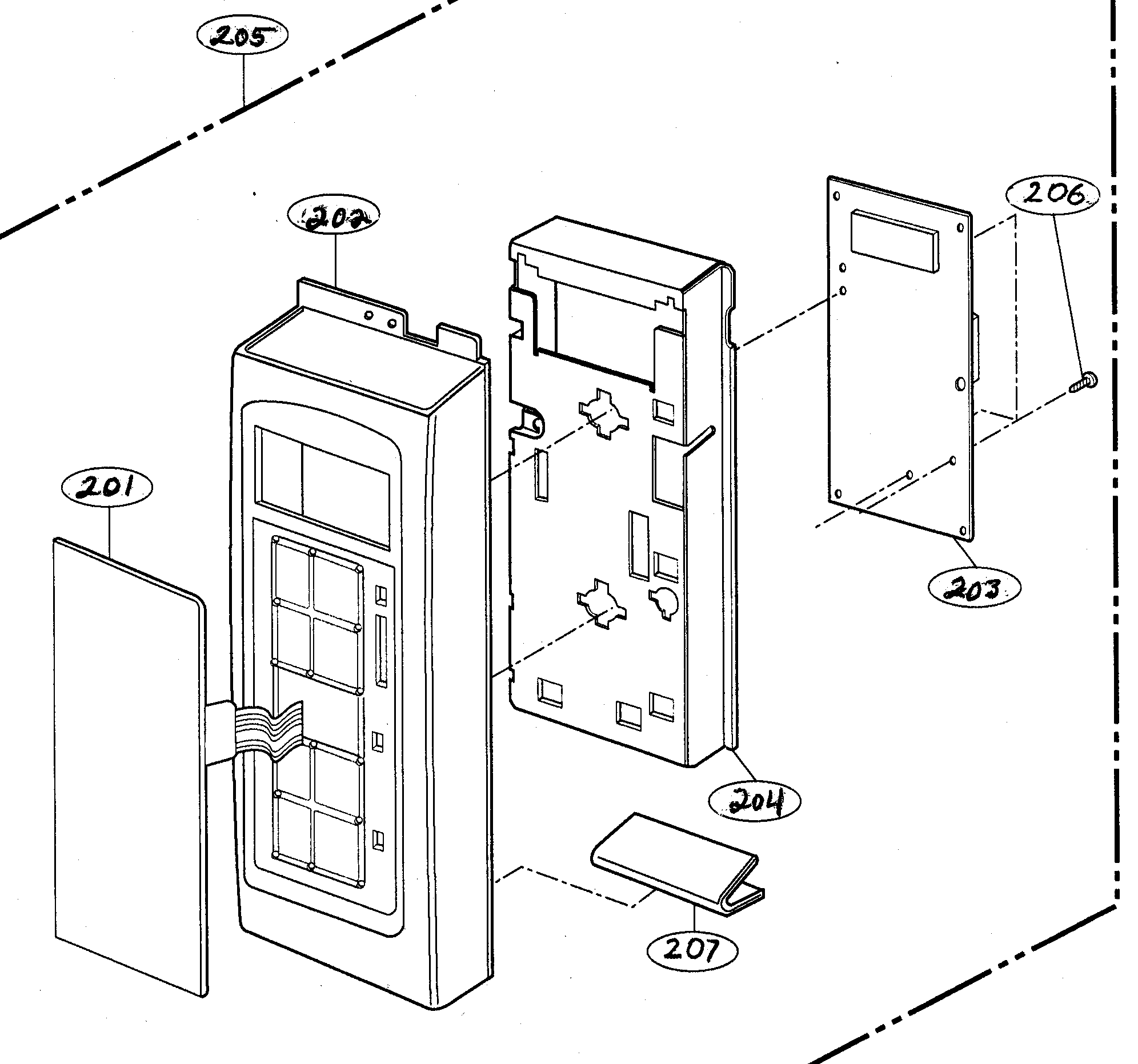

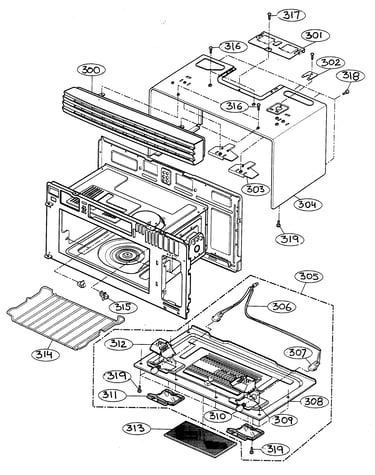

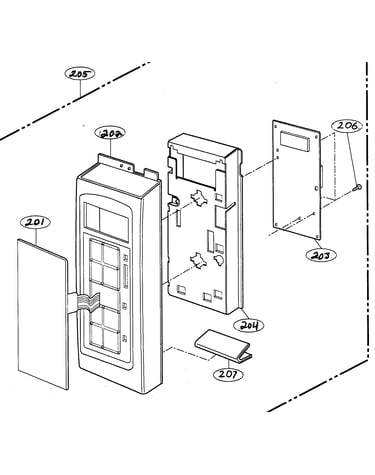

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Microwave High-voltage Capacitor 0CZZW1H002H
#505

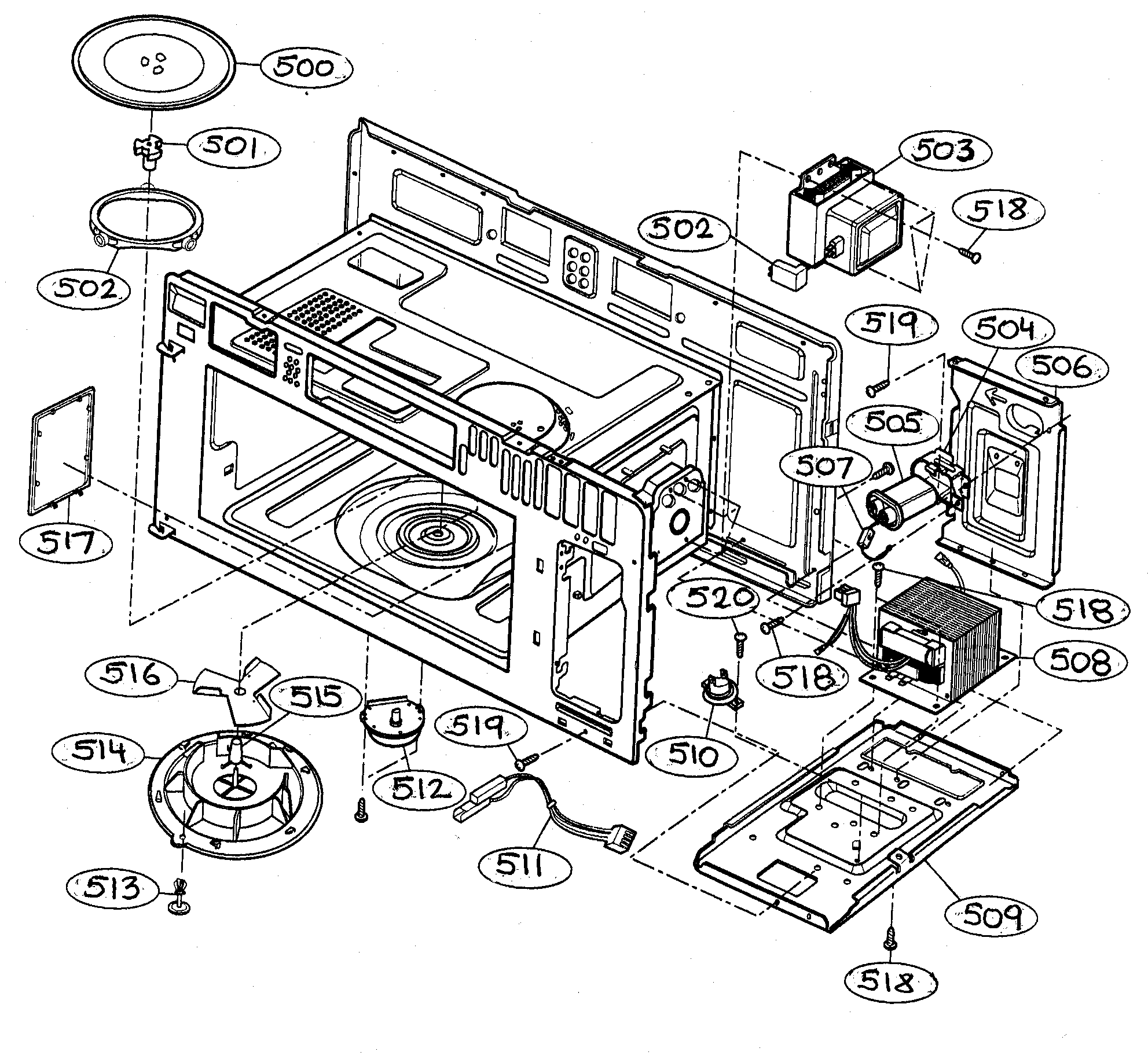

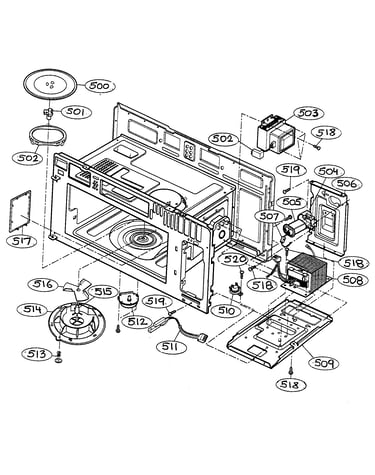

Interior parts 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
High-voltage Diode 6021W3B001K
#507

Interior parts 1 diagram

High-voltage diode

Part #6021W3B001K

Replaced by #6851W1A002E

?
Manufacturer substitution
This part replaces 6021W3B001K. Substitute parts can look different from the original.
BEST SELLER
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#403

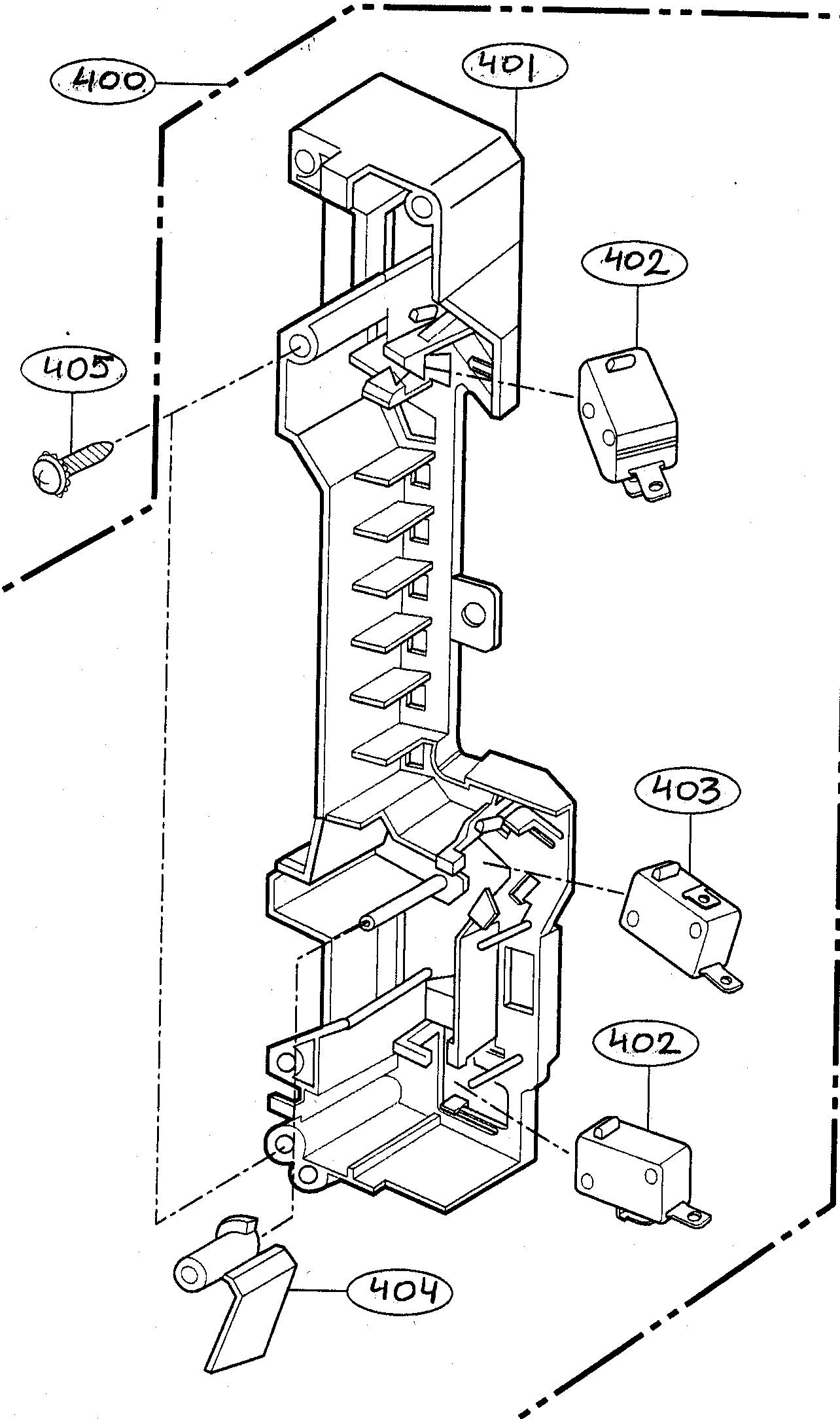

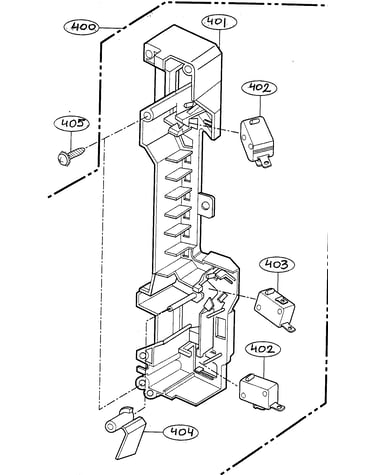

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.15 |
14% OFF Phone Price : $14.15
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#402

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.05 |
17% OFF Phone Price : $12.05
In Stock
Microwave Fuse 3B74133K
#607

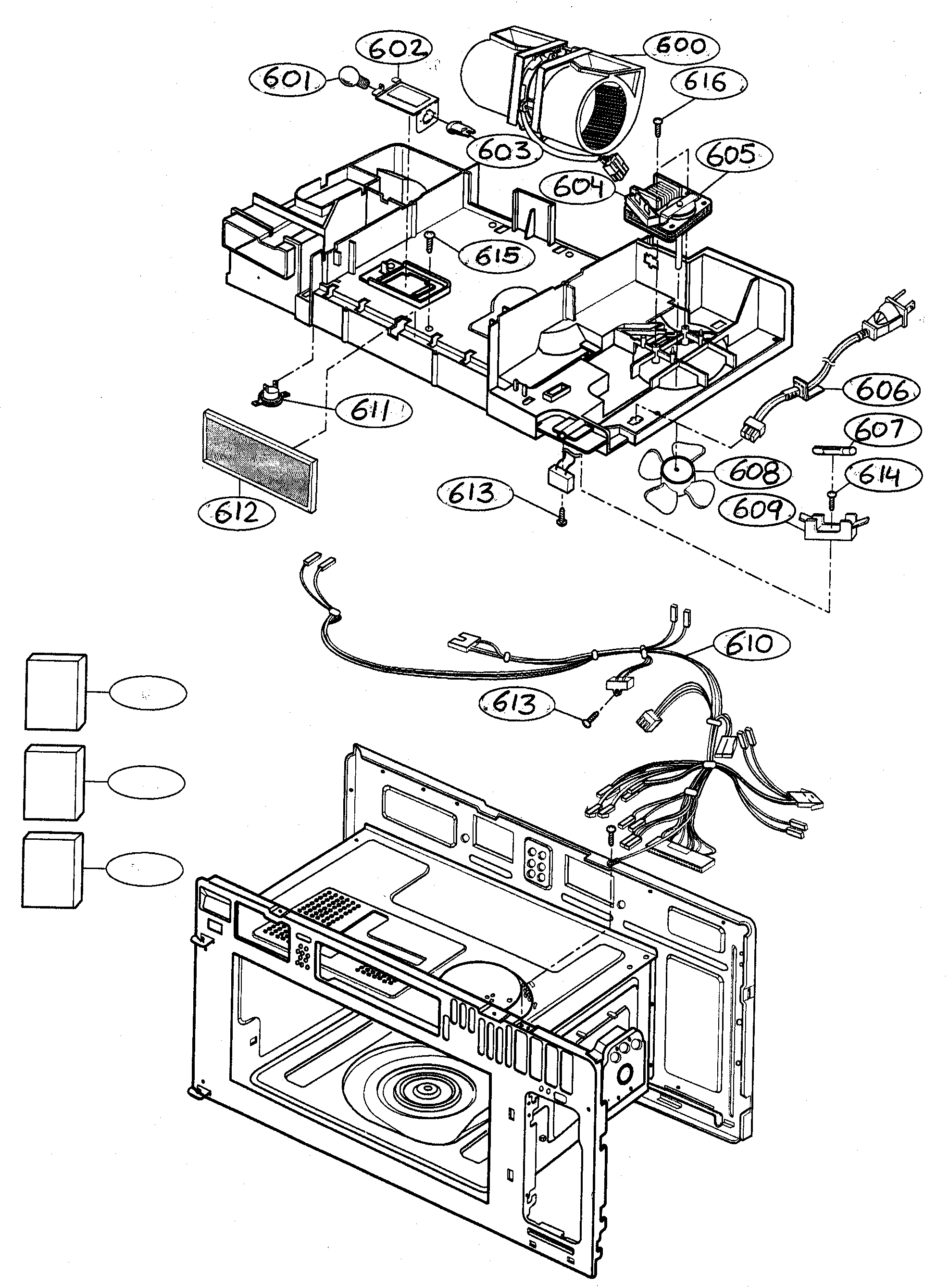

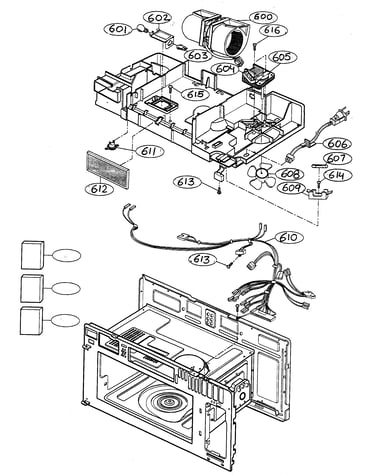

Interior parts 2 diagram

Microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Door Latch Hook 4026W2A015A
#107

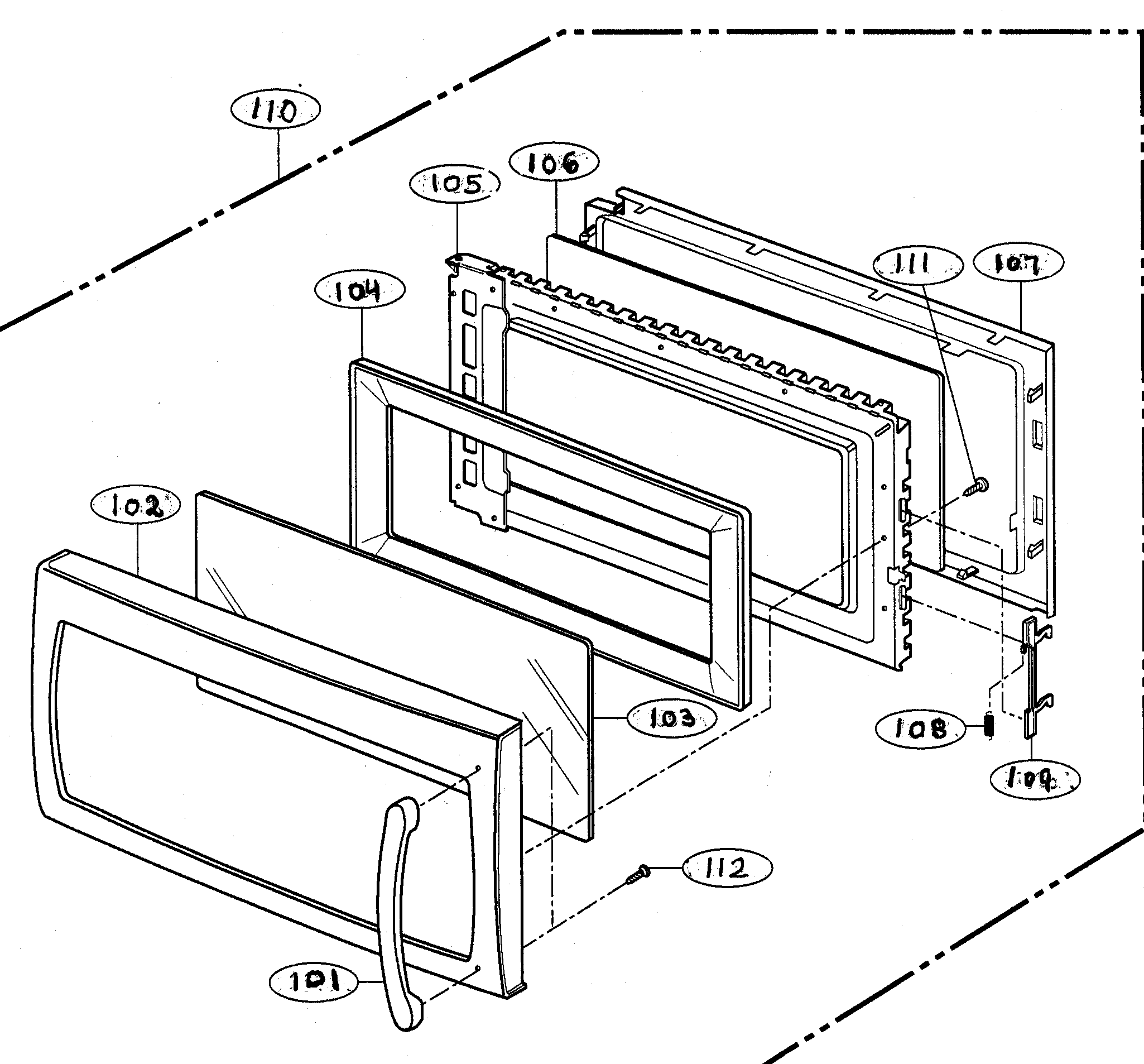

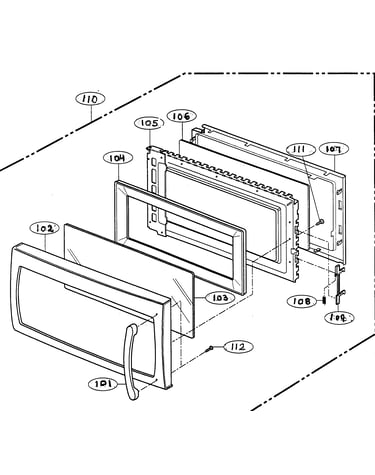

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Damper 3B71432A
#703

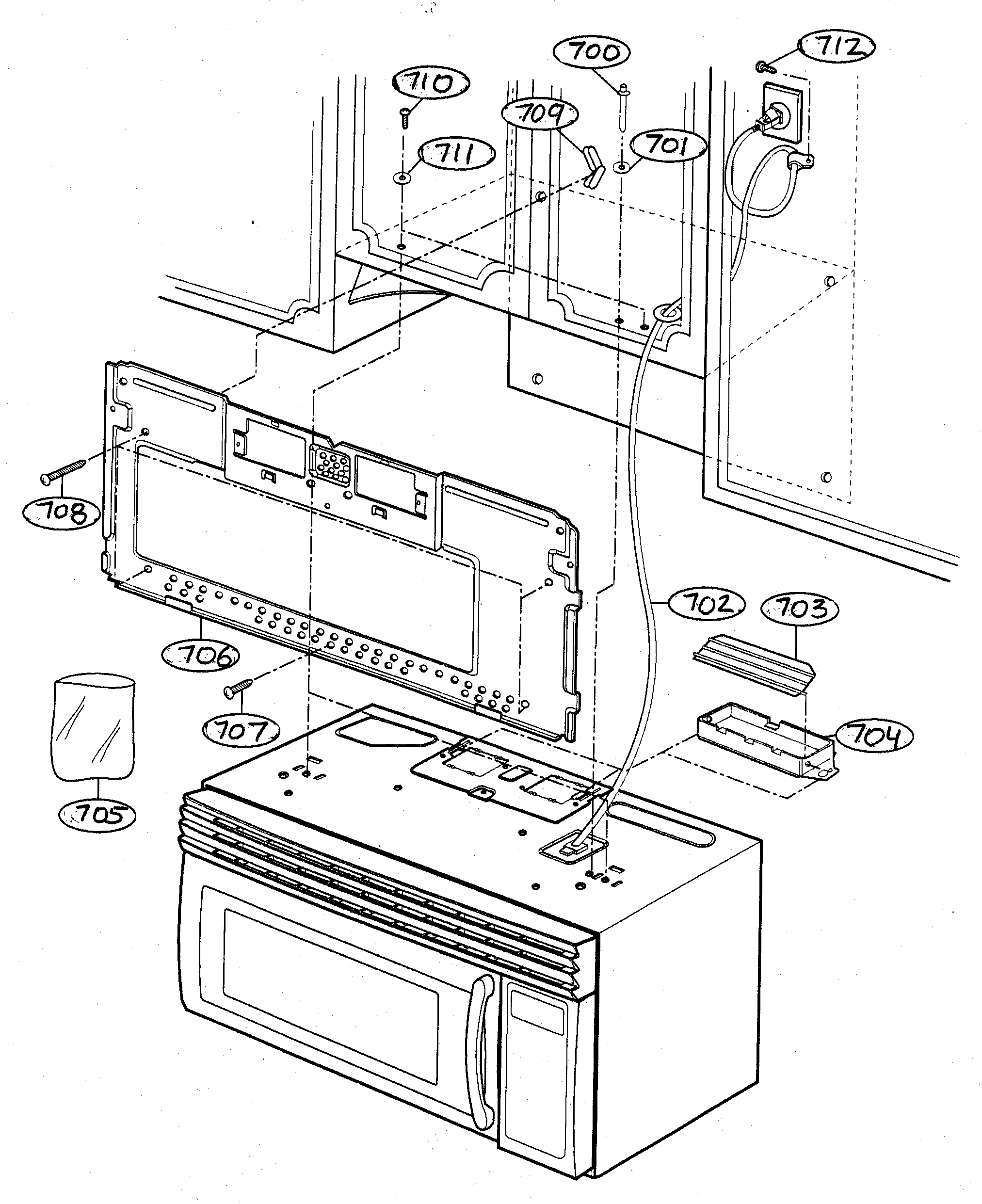

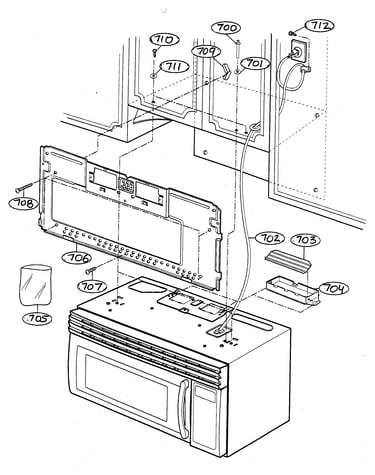

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Thermostat 6930WRT003C
#611

Interior parts 2 diagram

Microwave thermostat

Part #6930WRT003C

Replaced by #6930W1A003J

?
Manufacturer substitution
This part replaces 6930WRT003C. Substitute parts can look different from the original.
BEST SELLER
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Microwave/hood Holder Locker Assembly 3501W1A019A
#400

Latch board parts diagram

Microwave/hood holder locker assembly

Part #3501W1A019A

Replaced by #AEJ75540901

?
Manufacturer substitution
This part replaces 3501W1A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Door Latch Spring 4970WRA001G
#108

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
