Kenmore Elite
Wall Oven/Microwave Combo

Model # 79048903000 Official Kenmore Elite wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore Elite 79048903000 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

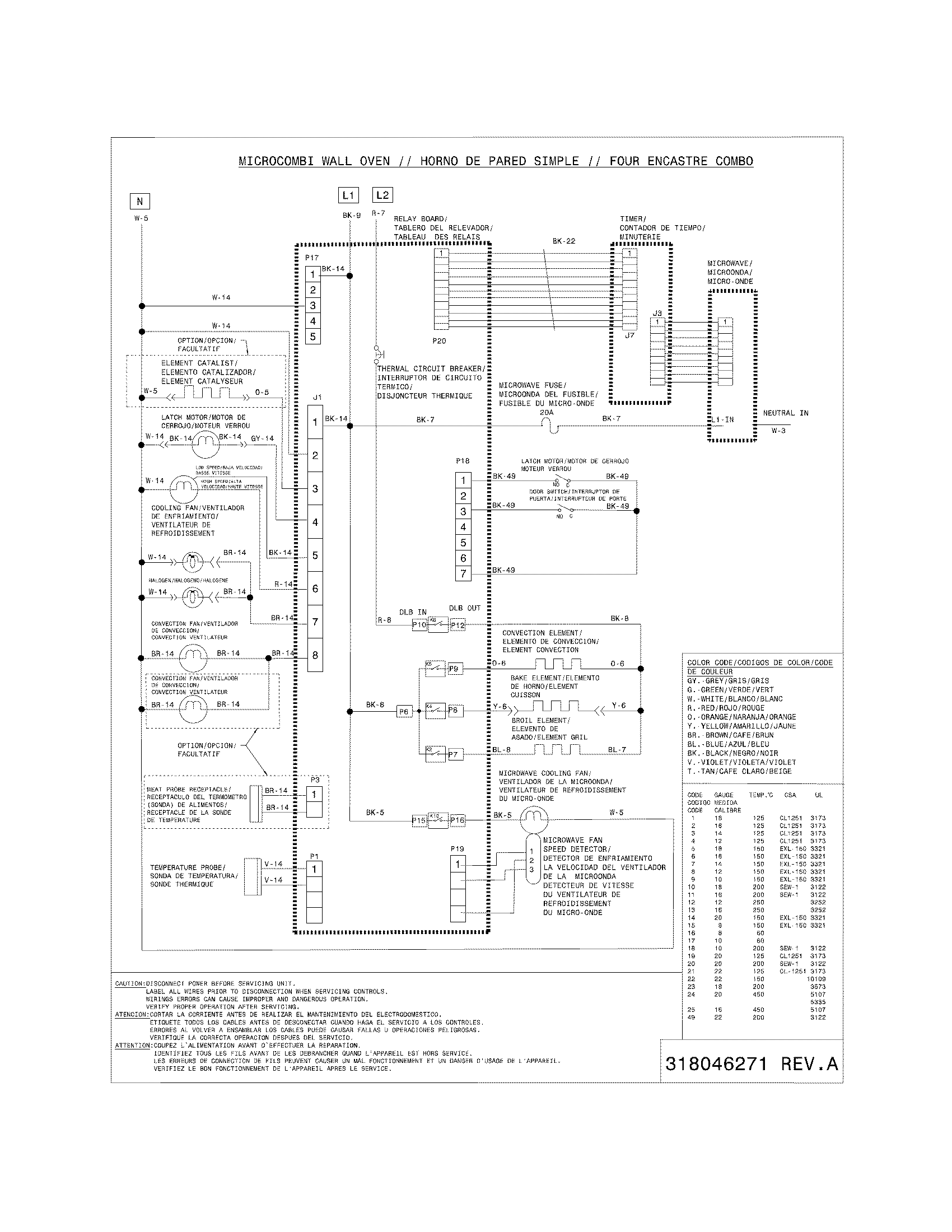

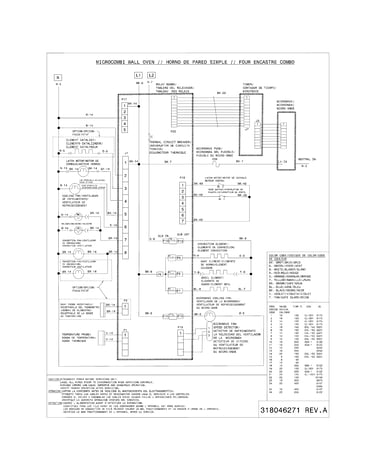

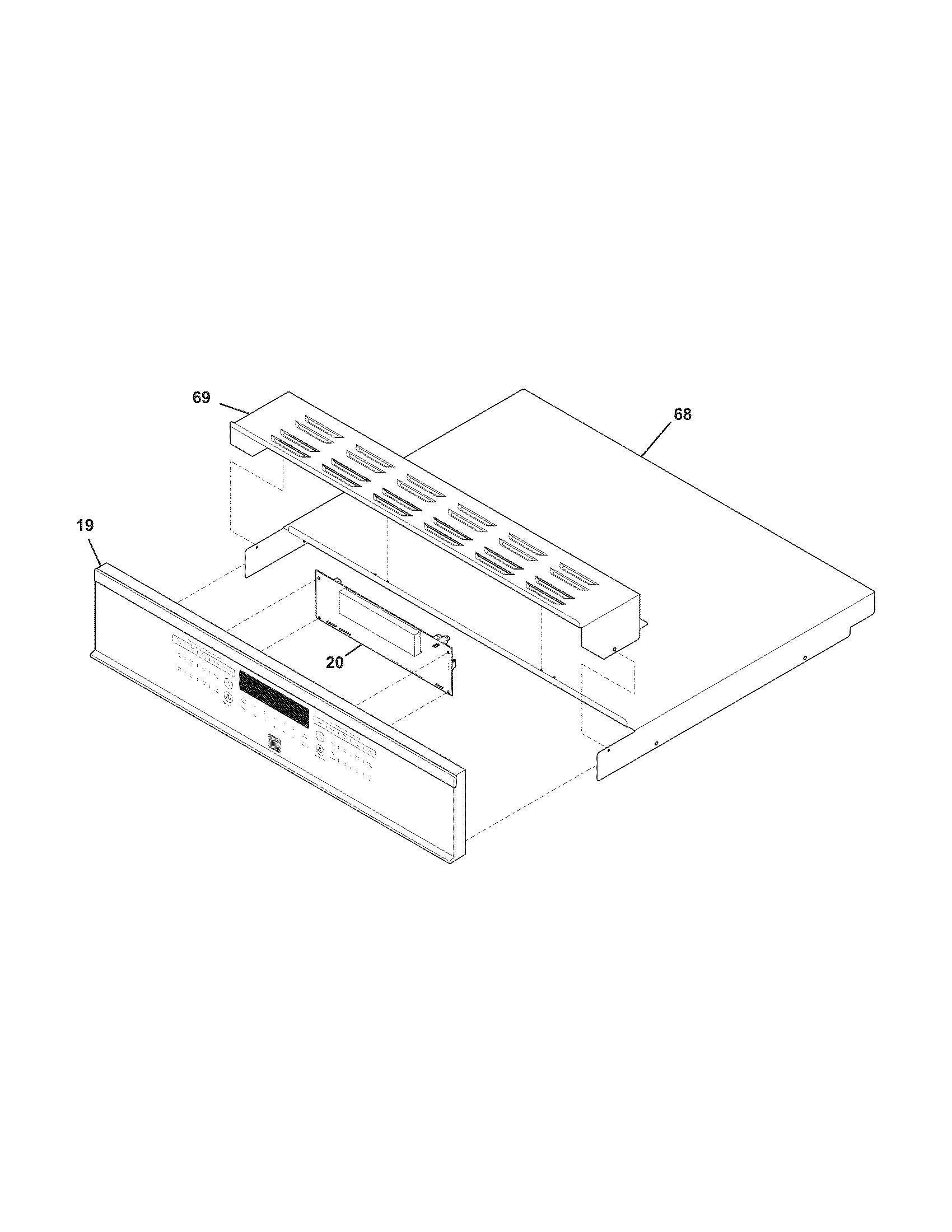

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Range Oven Temperature Sensor 318562500
#37

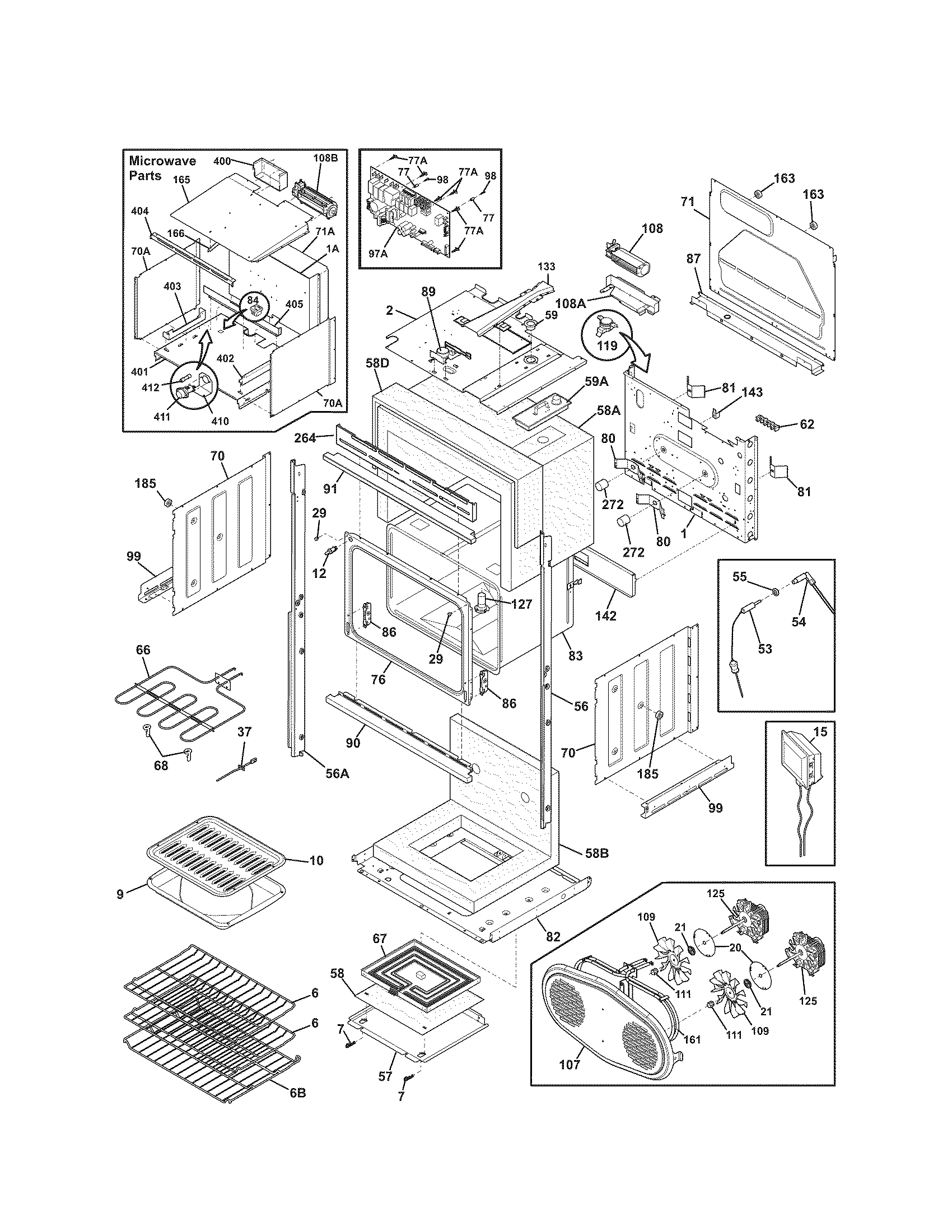

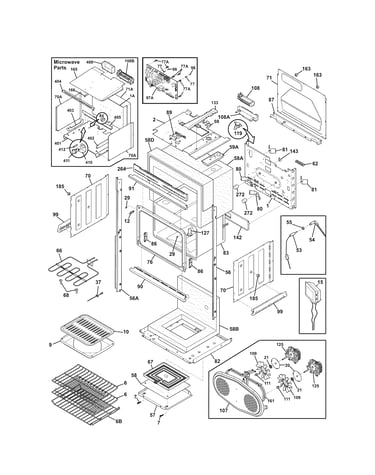

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$35.62 |
12% OFF Phone Price : $40.62
In Stock
Range Oven Door Inner Glass 316117500
#8

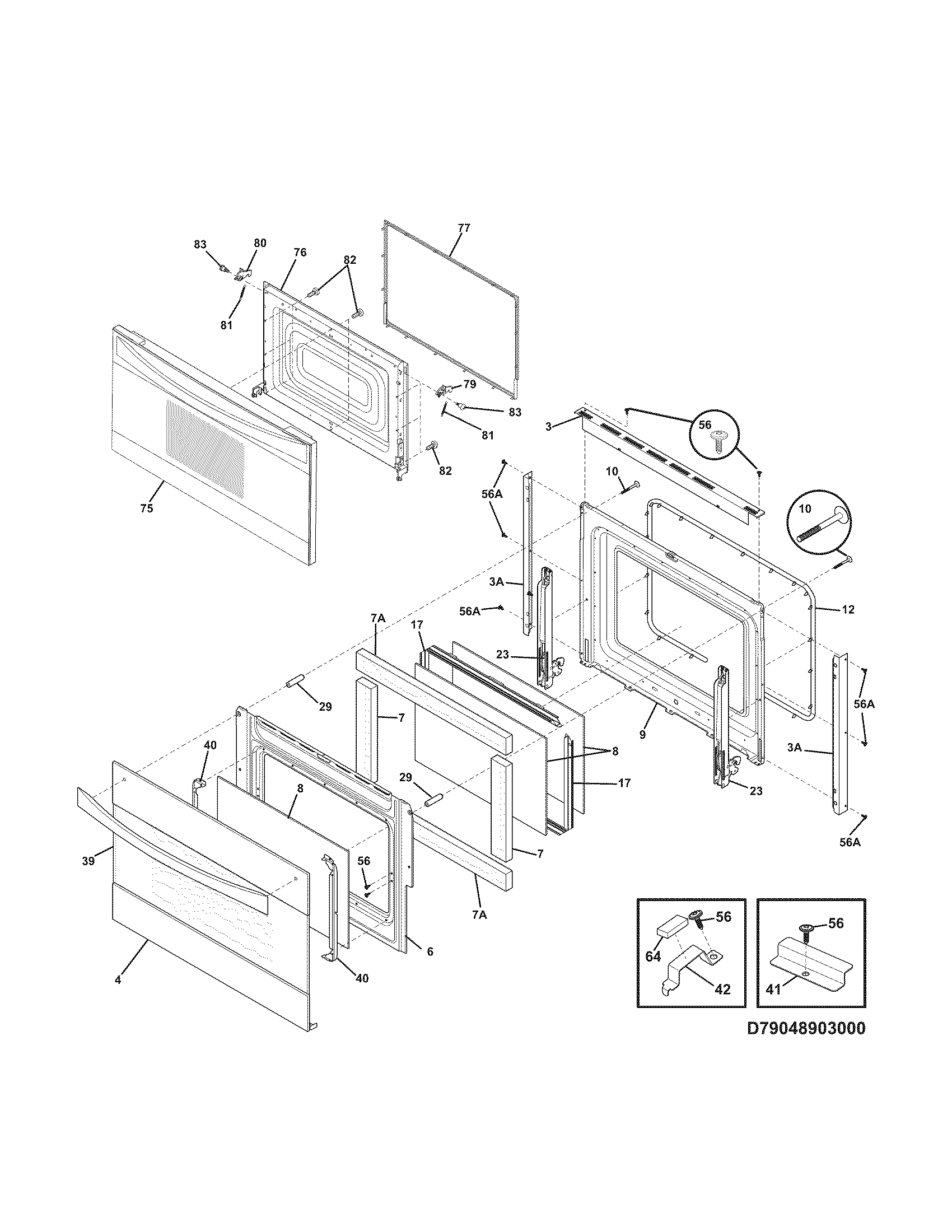

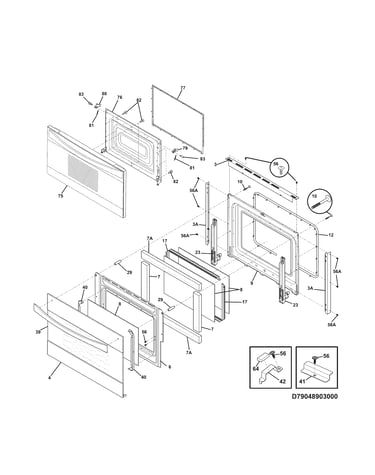

Doors diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$82.26 |
6% OFF Phone Price : $87.26
In Stock
Oven Element 318601601
#67

Lower oven diagram

Oven element

Part #318601601

Replaced by #318601604

?
Manufacturer substitution
This part replaces 318601601. Substitute parts can look different from the original.
BEST SELLER
$208.71 |
5% OFF Phone Price : $218.71
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Microwave Door Interlock Switch 5304440026
#4

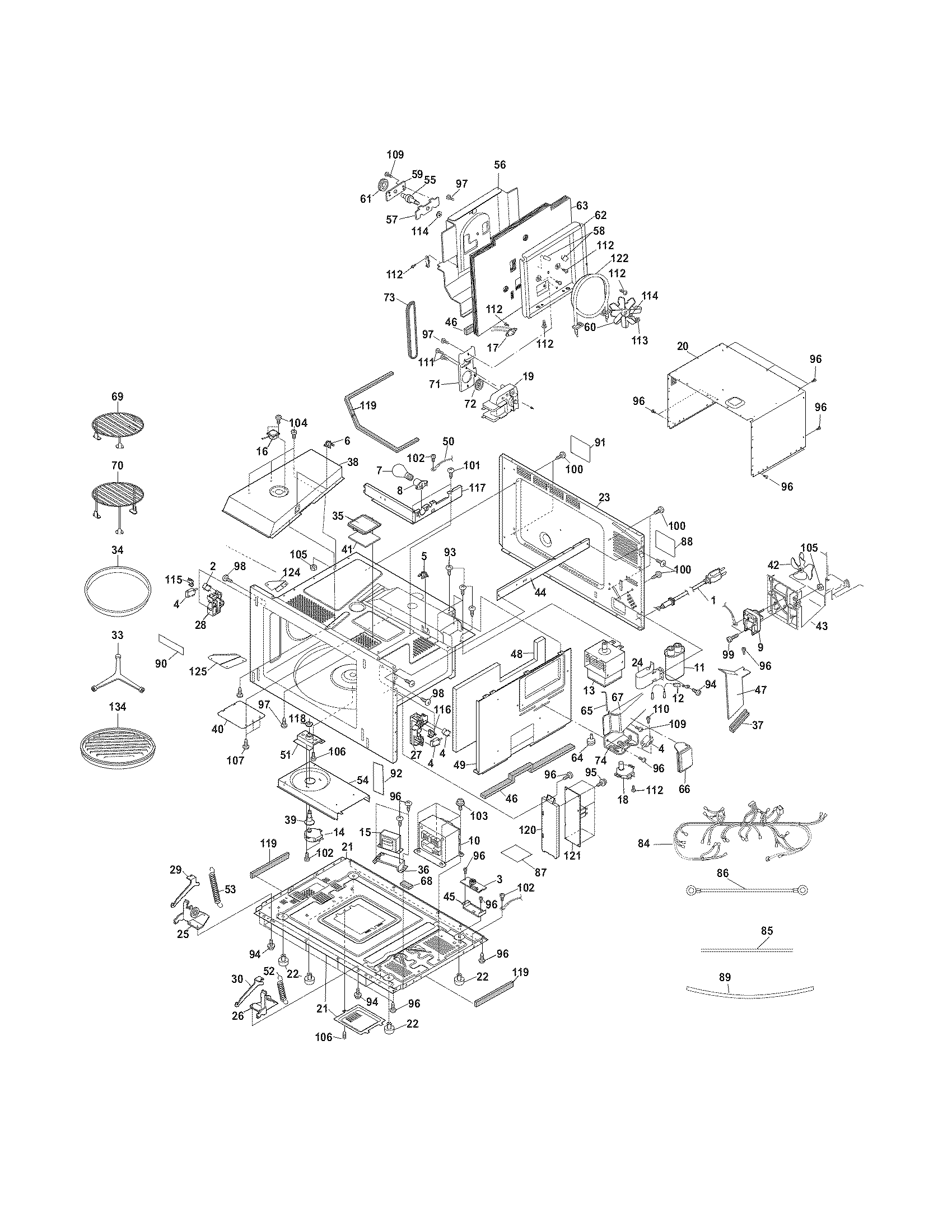

Microwave diagram

Microwave door interlock switch

Part #5304440026

Replaced by #5304493153

?
Manufacturer substitution
This part replaces 5304440026. Substitute parts can look different from the original.
BEST SELLER
$28.60 |
32% OFF MSRP : $42.00
In Stock
Microwave Door Outer Panel And Handle Assembly 5304480651
#75

Doors diagram

Microwave door outer panel and handle assembly

Part #5304480651

Replaced by #5304503610

?
Manufacturer substitution
This part replaces 5304480651. Substitute parts can look different from the original.
BEST SELLER
$486.71 |
$10.00 OFF Phone Price : $496.71
In Stock
Microwave Electronic Control Board 5304480656
#121

Microwave diagram

Microwave electronic control board

Part #5304480656

BEST SELLER
$233.51 |
$10.00 OFF Phone Price : $243.51
In Stock
Range Convection Fan Blade (replaces 139009100, 316136400, 318398300) 318398302
#109

Lower oven diagram

Range convection fan blade (replaces 139009100, 316136400, 318398300)

Part #318398302

BEST SELLER
$23.89 |
17% OFF Phone Price : $28.89
In Stock
Wall Oven Door Outer Panel (black And Stainless) 318299526
#4

Doors diagram

Wall oven door outer panel (black and stainless)

Part #318299526

BEST SELLER
$437.90 |
$10.00 OFF Phone Price : $447.90
In Stock
Microwave High-voltage Capacitor (replaces 5303319549, 75304470539) 5304470539
#11

Microwave diagram

Microwave high-voltage capacitor (replaces 5303319549, 75304470539)

Part #5304470539

BEST SELLER
$121.18 |
8% OFF Phone Price : $131.18
In Stock
