Model # 23-710 Official Delta sharpening center

Here are the diagrams and repair parts for Official Delta 23-710 sharpening center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Knob 1348151
#201

Beam/guide table diagram

Knob

Part #1348151

The manufacturer no longer makes this part, and there's no substitute part

M6 Hex Nut 1243456
#87

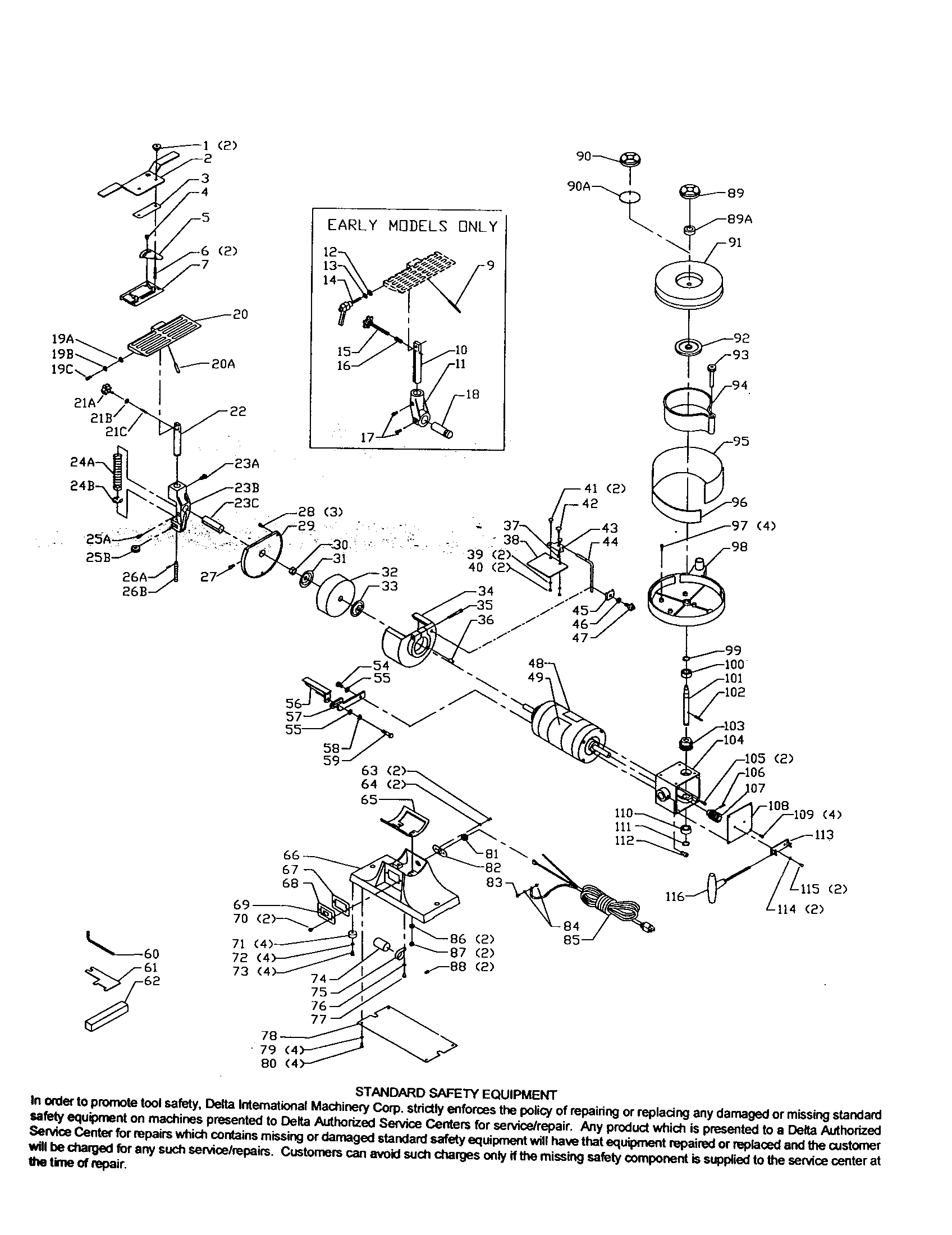

Base/motor/splash guard diagram

M6 hex nut

Part #1243456

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246098
Screw

Part #1246098

The manufacturer no longer makes this part, and there's no substitute part

Wrench 1342403
#116

Base/motor/splash guard diagram

Wrench

Part #1342403

The manufacturer no longer makes this part, and there's no substitute part

Tool Clamp 1342402
#113

Base/motor/splash guard diagram

Tool clamp

Part #1342402

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 1246081
#9

Base/motor/splash guard diagram

Spring pin

Part #1246081

The manufacturer no longer makes this part, and there's no substitute part

Washer 1320087
Washer

Part #1320087

The manufacturer no longer makes this part, and there's no substitute part

Tool Rest 1342395
#18A

Base/motor/splash guard diagram

Tool rest

Part #1342395

The manufacturer no longer makes this part, and there's no substitute part

Screw 1330147
#35

Base/motor/splash guard diagram

Screw

Part #1330147

The manufacturer no longer makes this part, and there's no substitute part

Splash Guard 1348202
#95

Base/motor/splash guard diagram

Splash guard

Part #1348202

The manufacturer no longer makes this part, and there's no substitute part
