Kenmore
Upright Vacuum

Model # 11657612690 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 11657612690 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

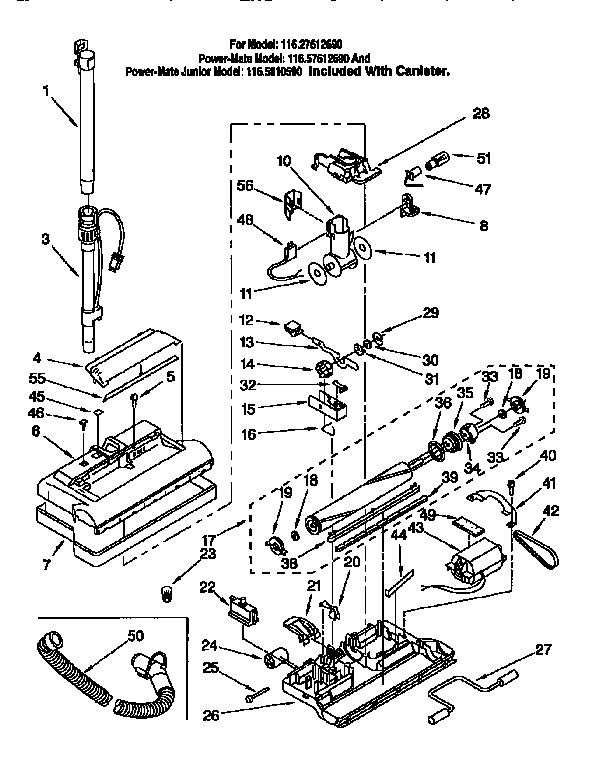

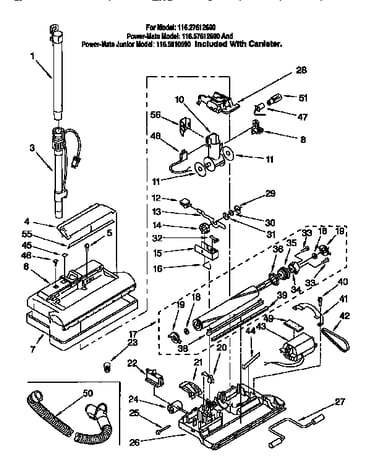

Power-mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Screw 681297
#40

Power-mate diagram

Screw

Part #681297

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 742006
#25

Power-mate diagram

Roller shaft

Part #742006

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal 4369930
#21

Power-mate diagram

Vacuum handle release pedal

Part #4369930

The manufacturer no longer makes this part, and there's no substitute part

Indicator Cam 747291
#14

Power-mate diagram

Indicator cam

Part #747291

The manufacturer no longer makes this part, and there's no substitute part

Washer, 12 X 5 681424
#18

Power-mate diagram

Washer, 12 x 5

Part #681424

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 747096
#47

Power-mate diagram

Bulb socket

Part #747096

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 4368522
#23

Power-mate diagram

Twist-on wire connector

Part #4368522

The manufacturer no longer makes this part, and there's no substitute part

Belt 742024
#42

Power-mate diagram

Belt

Part #742024

The manufacturer no longer makes this part, and there's no substitute part
