Model # 315114540 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315114540 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

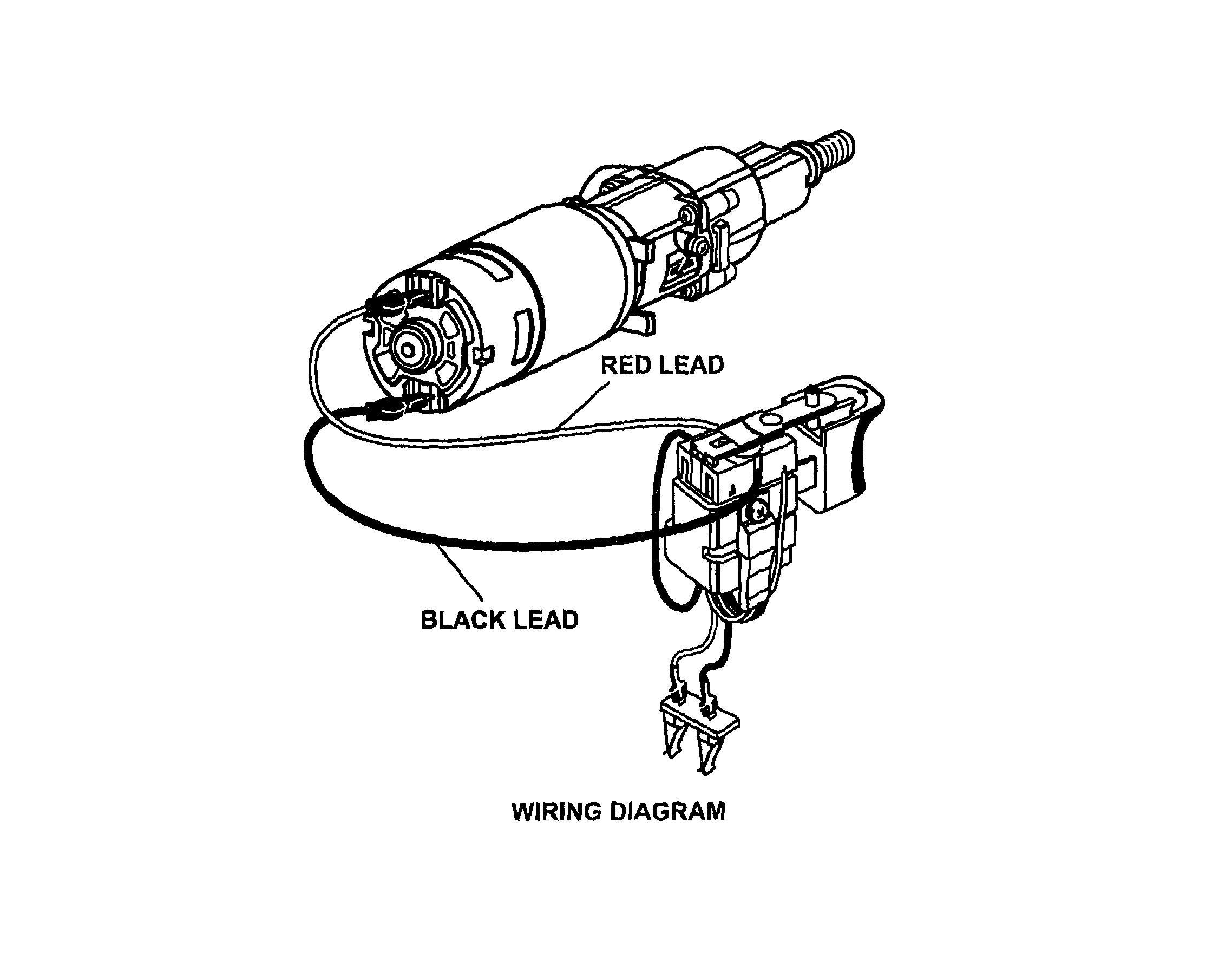

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Pin 6833802
#13

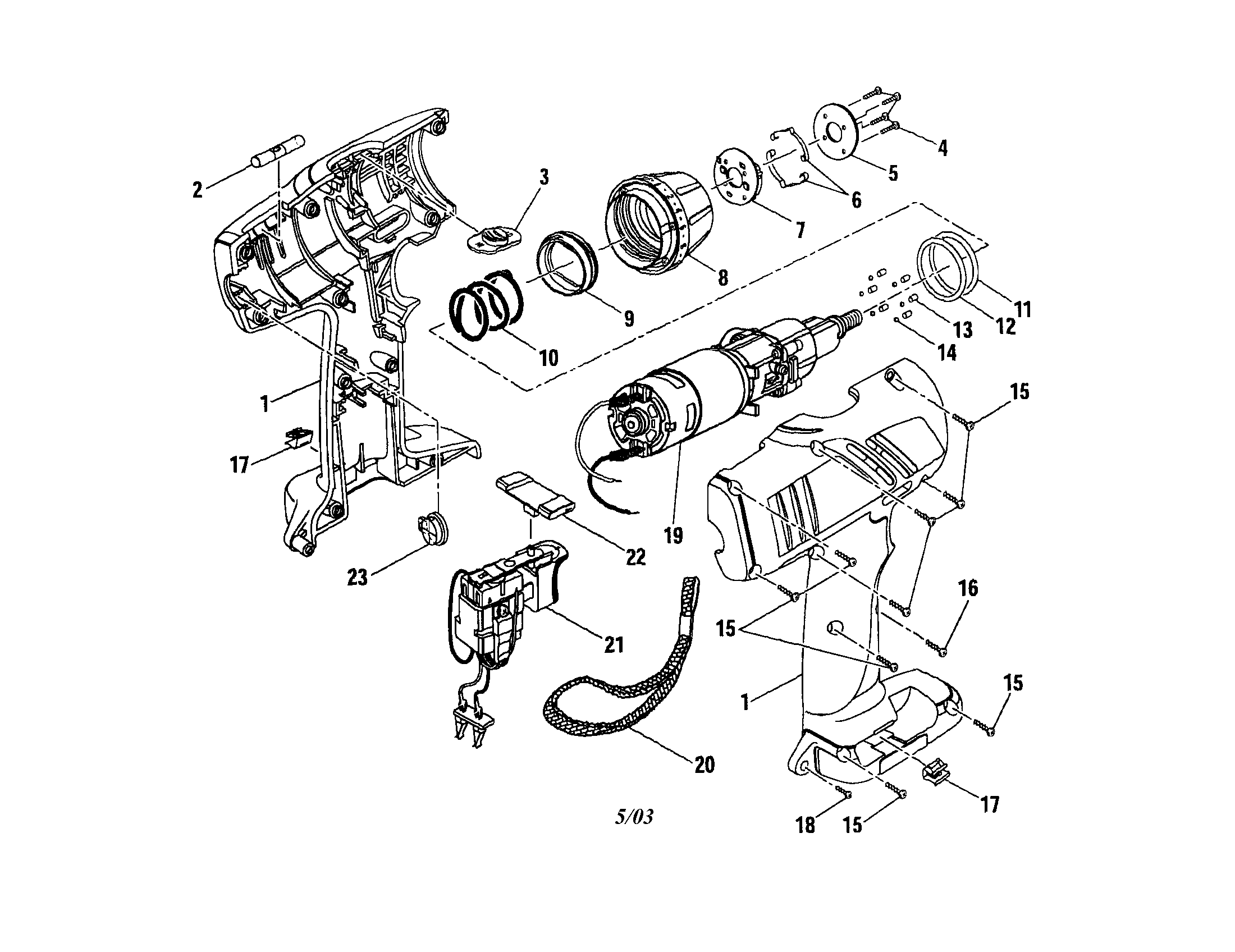

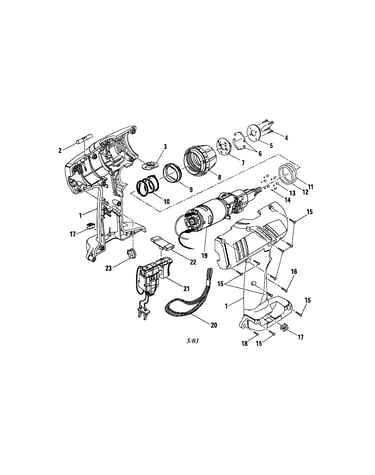

Housing/motor/switch diagram

Pin

Part #6833802

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620805
#15

Housing/motor/switch diagram

Screw

Part #6620805

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 984690-001
#8

Housing/motor/switch diagram

Clutch cap

Part #984690-001

The manufacturer no longer makes this part, and there's no substitute part

Battery 1323514
#3

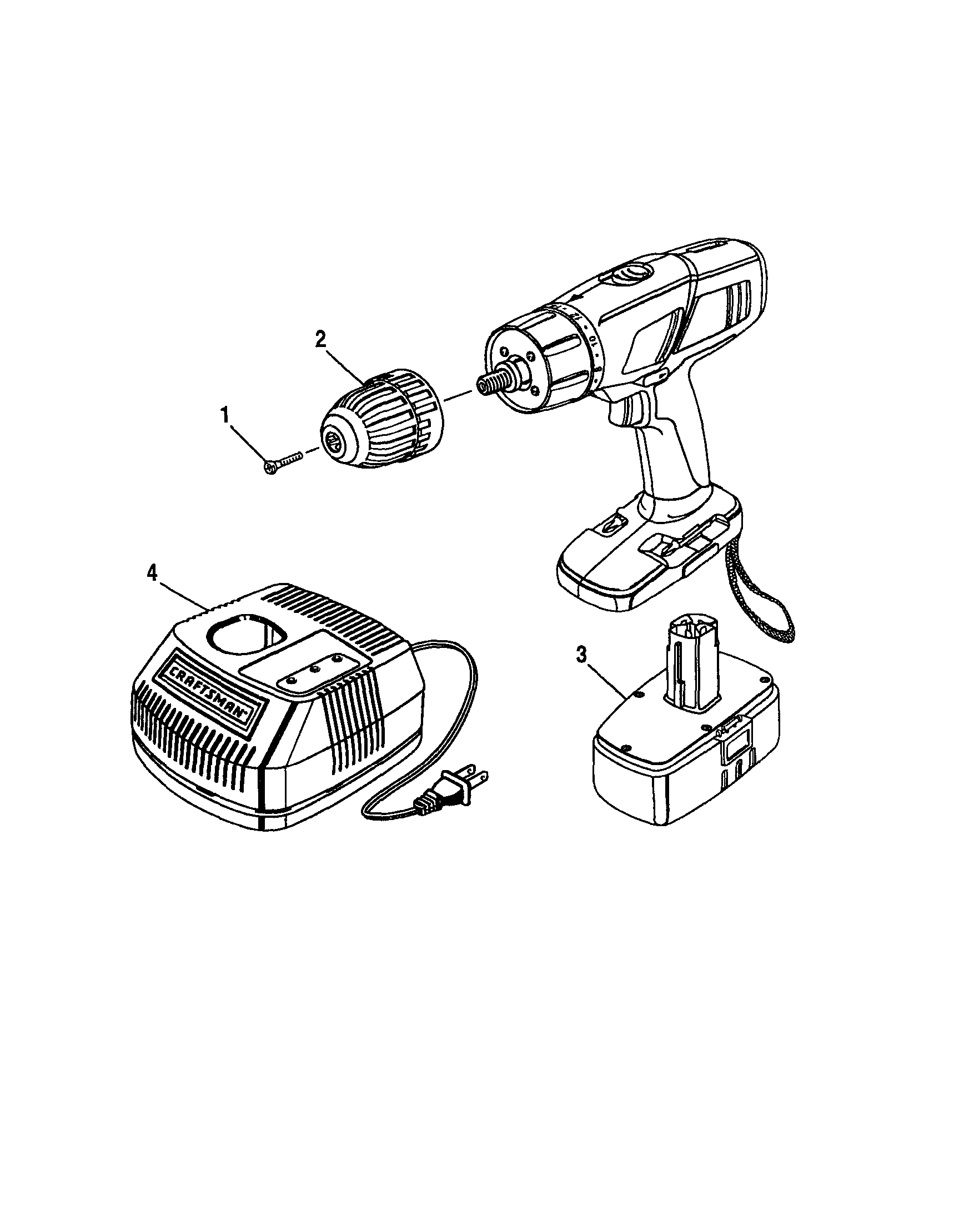

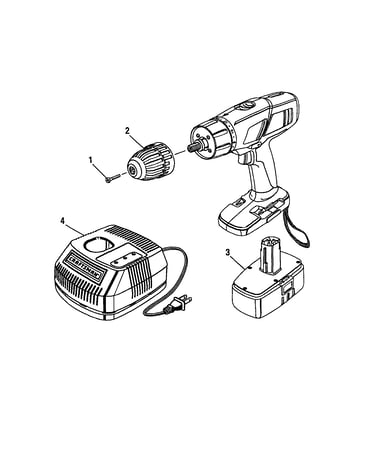

Charger/battery pack diagram

Battery

Part #1323514

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver On/off Switch 2701297
#21

Housing/motor/switch diagram

Drill/driver on/off switch

Part #2701297

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Chuck 6903323
#2

Charger/battery pack diagram

Drill/driver chuck

Part #6903323

The manufacturer no longer makes this part, and there's no substitute part

Washer 6711101
#11

Housing/motor/switch diagram

Washer

Part #6711101

The manufacturer no longer makes this part, and there's no substitute part

Screw 975379-000
#1

Charger/battery pack diagram

Screw

Part #975379-000

The manufacturer no longer makes this part, and there's no substitute part

Battery 1323905
#3A

Charger/battery pack diagram

Battery

Part #1323905

The manufacturer no longer makes this part, and there's no substitute part

Rear Level 3048003
#23

Housing/motor/switch diagram

Rear level

Part #3048003

The manufacturer no longer makes this part, and there's no substitute part
