Model # 580327291 Official Craftsman 6500-watt ac generator

Here are the diagrams and repair parts for Official Craftsman 580327291 6500-watt ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

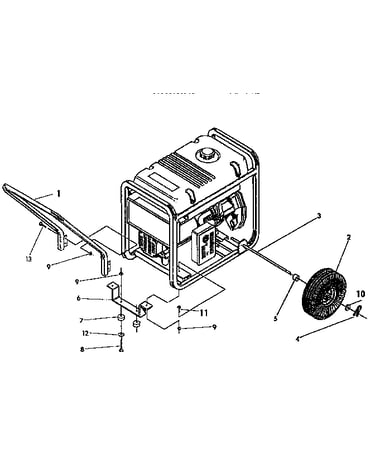

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Spark Plug 72347
#34

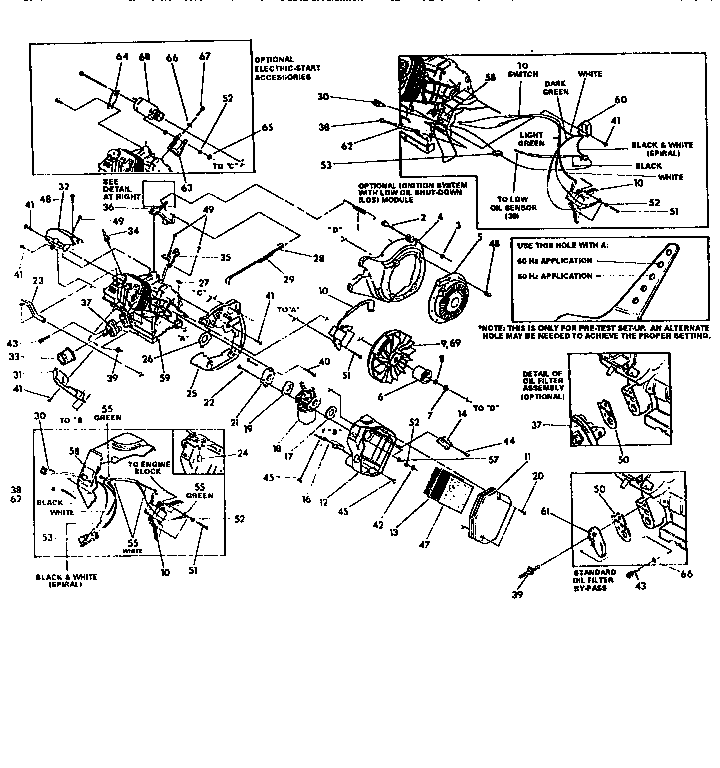

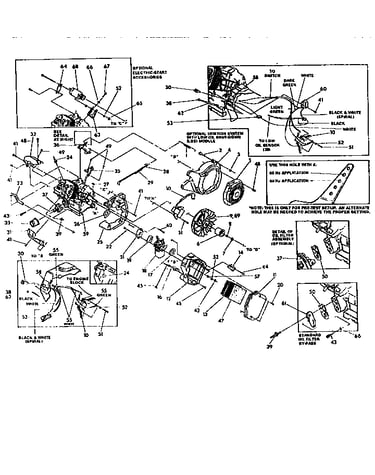

Flywheel assembly diagram

Spark plug

Part #72347

Replaced by #71

?
Manufacturer substitution
This part replaces 72347. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.17 |
16% OFF Phone Price : $6.17
In Stock
Rushing 78299
#45

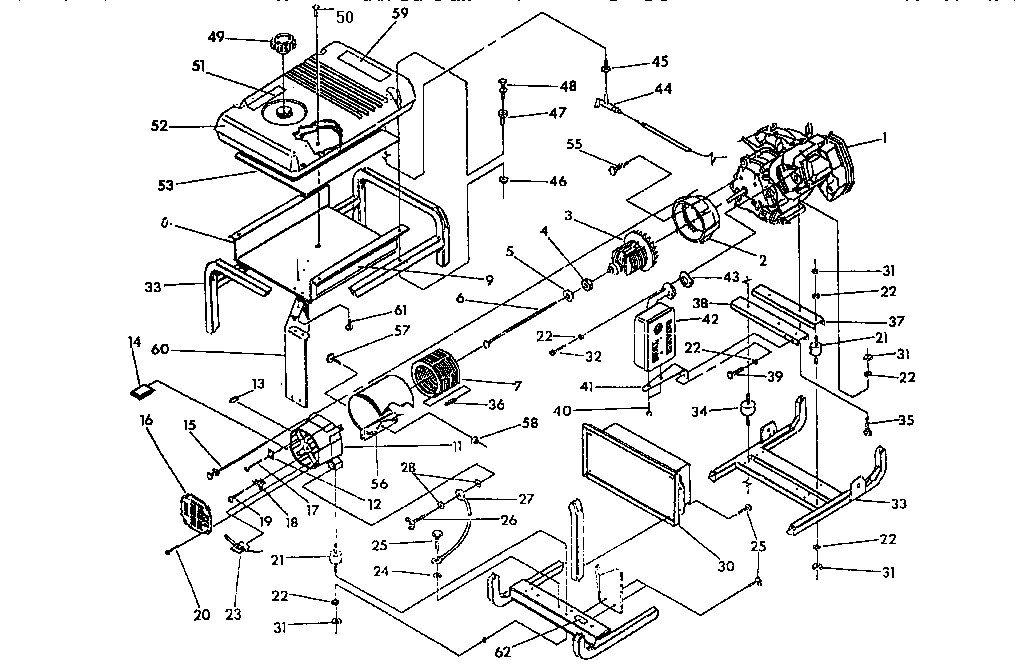

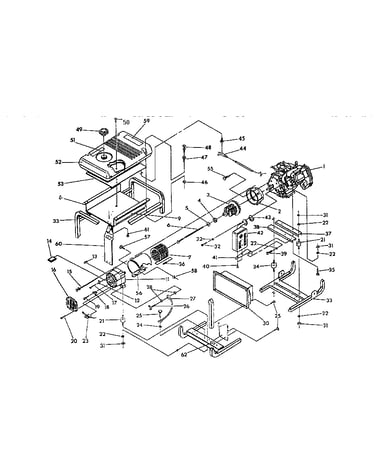

Cradle and stator assembly diagram

Rushing

Part #78299

Replaced by #192980GS

?
Manufacturer substitution
This part replaces 78299. Substitute parts can look different from the original.
BEST SELLER
$25.18 |
17% OFF Phone Price : $30.18
In Stock
Valve 80270
#44

Cradle and stator assembly diagram

Valve

Part #80270

Replaced by #192980GS

?
Manufacturer substitution
This part replaces 80270. Substitute parts can look different from the original.
BEST SELLER
$25.18 |
17% OFF Phone Price : $30.18
In Stock
Cup 81641
#6

Flywheel assembly diagram

Cup

Part #81641

Replaced by #095268ASRV

?
Manufacturer substitution
This part replaces 81641. Substitute parts can look different from the original.
$64.99 |
7% OFF Phone Price : $69.99
In Stock
Recoil Assembly 95092
#5

Flywheel assembly diagram

Recoil assembly

Part #95092

Replaced by #095268ASRV

?
Manufacturer substitution
This part replaces 95092. Substitute parts can look different from the original.
$64.99 |
7% OFF Phone Price : $69.99
In Stock
Breaker 75207
#19

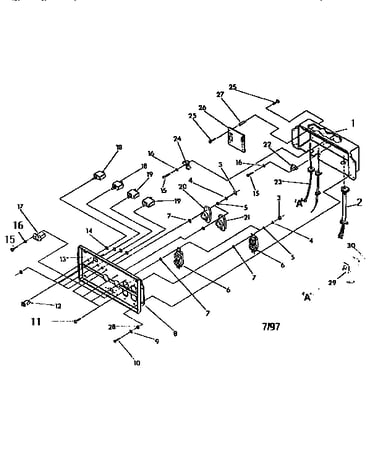

Control panel diagram

Breaker

Part #75207

Replaced by #209872GS

?
Manufacturer substitution
This part replaces 75207. Substitute parts can look different from the original.
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Retainer 86514
#27

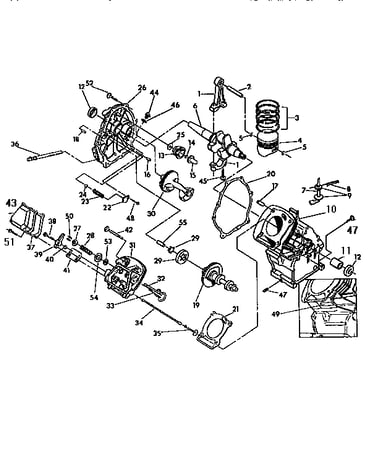

Crankcase assembly diagram

Retainer

Part #86514

Replaced by #0D2274

?
Manufacturer substitution
This part replaces 86514. Substitute parts can look different from the original.
This item is not returnable
$2.54 |
28% OFF Phone Price : $3.54
In Stock
Cap Screw 22142
#39

Cradle and stator assembly diagram

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

R Arm Gasket 71987
#37

Crankcase assembly diagram

R arm gasket

Part #71987

Replaced by #0C3150A

?
Manufacturer substitution
This part replaces 71987. Substitute parts can look different from the original.
$21.64 |
19% OFF Phone Price : $26.64
In Stock
Gasket 86999
#50

Flywheel assembly diagram

Gasket

Part #86999

Replaced by #G086999

?
Manufacturer substitution
This part replaces 86999. Substitute parts can look different from the original.
$14.46
In Stock
