Model # 8331433 Official Craftsman electronic insect killer

Here are the diagrams and repair parts for Official Craftsman 8331433 electronic insect killer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 43 parts |

#40

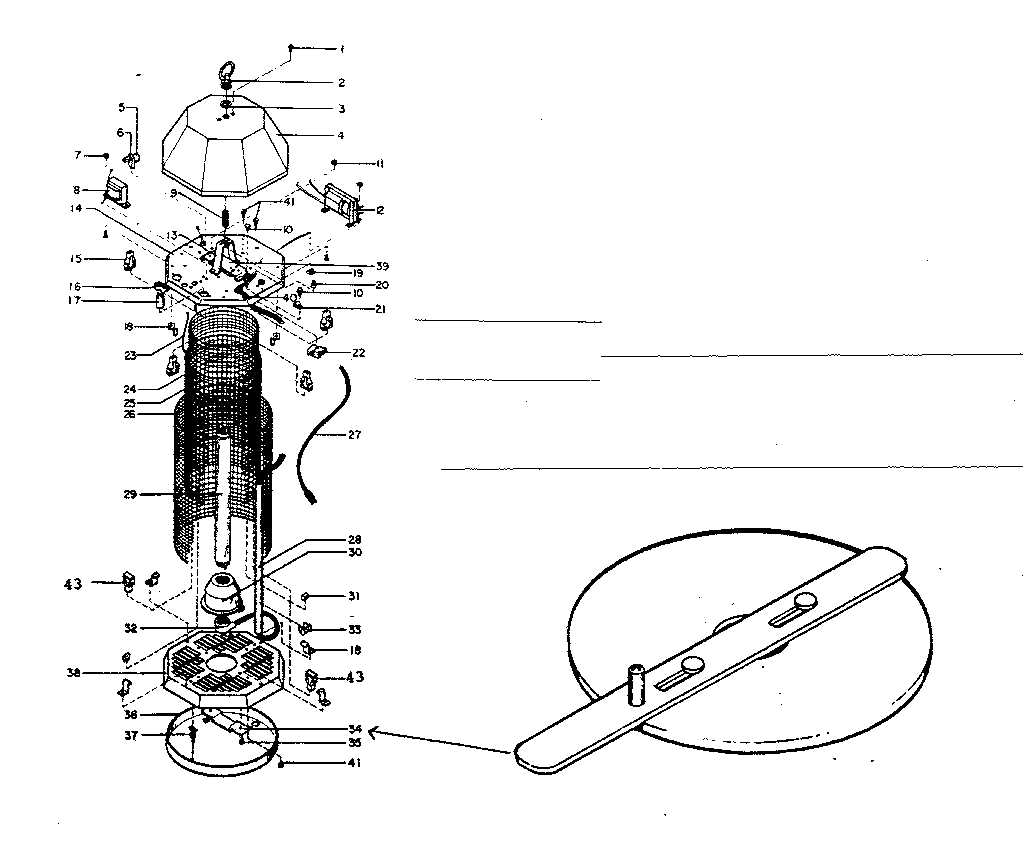

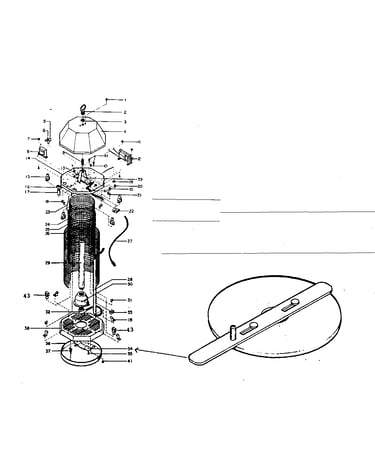

Replacement parts diagram

Electronic bug zapper bushing

Part #596-738

The manufacturer no longer makes this part, and there's no substitute part

Insect Killer Black Light Bulb 530-2815-S

#29

Replacement parts diagram

Insect killer black light bulb

Part #530-2815-S

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Hanging ring

Part #554-722

The manufacturer no longer makes this part, and there's no substitute part

#38

Replacement parts diagram

Plate

Part #552-2797-P2

The manufacturer no longer makes this part, and there's no substitute part

#43

Replacement parts diagram

Insulator

Part #544-2629

The manufacturer no longer makes this part, and there's no substitute part

#19

Replacement parts diagram

Cage nut

Part #545-2009

The manufacturer no longer makes this part, and there's no substitute part

#42

Replacement parts diagram

Owner's manual

Part #557-2794

The manufacturer no longer makes this part, and there's no substitute part

#14

Replacement parts diagram

Plate

Part #552-2989

The manufacturer no longer makes this part, and there's no substitute part

Electronic Bug Zapper Black Light 530-1587-S

#28

Replacement parts diagram

Electronic bug zapper black light

Part #530-1587-S

The manufacturer no longer makes this part, and there's no substitute part

#34

Replacement parts diagram

Retainer

Part #555-3060

The manufacturer no longer makes this part, and there's no substitute part
