Model # 1042 Official GeneralAire humidifier

Here are the diagrams and repair parts for Official GeneralAire 1042 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Drain Pan 1137-3
#15

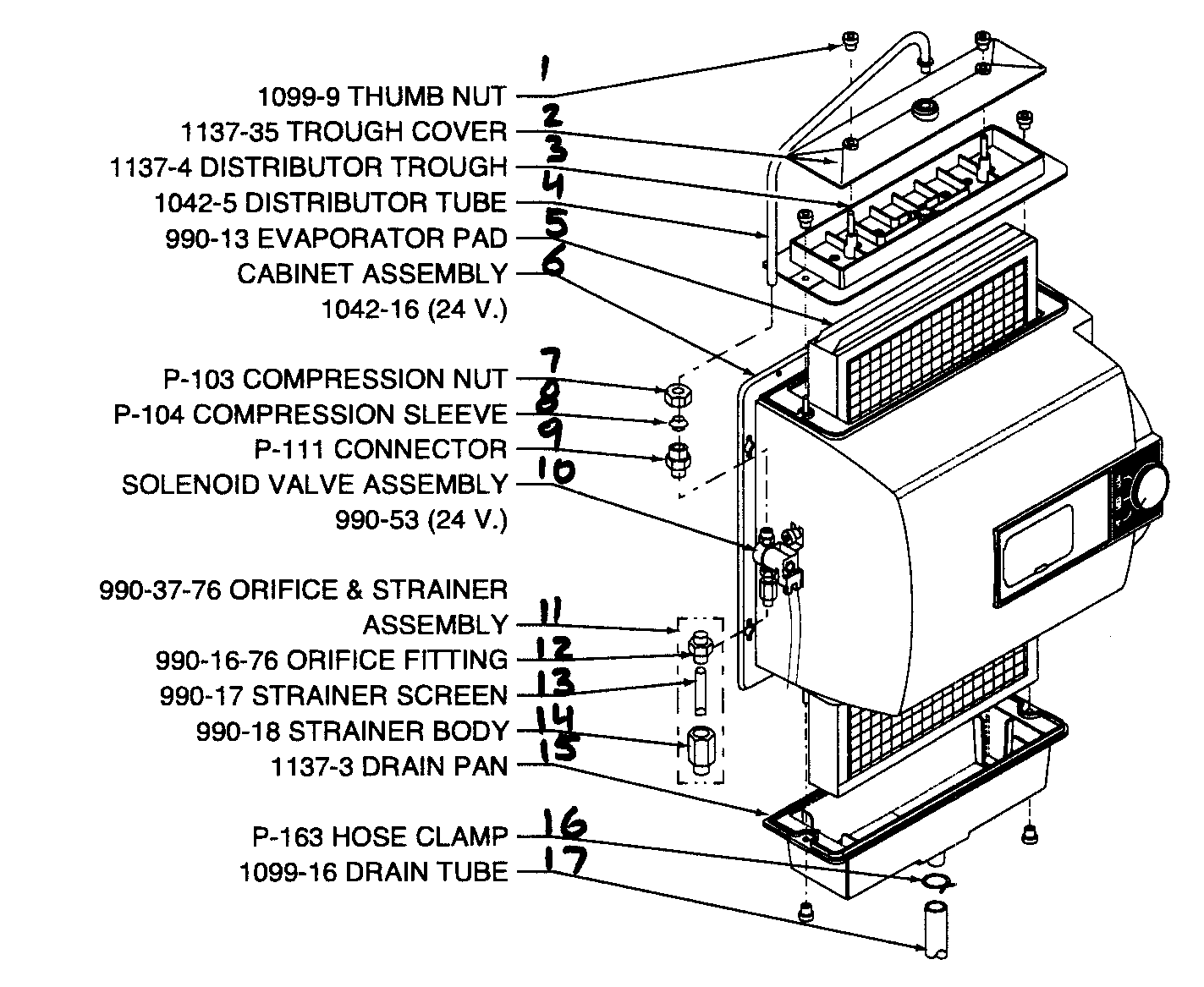

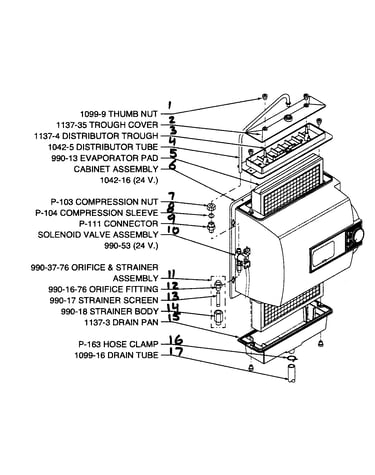

Humidifier diagram

Drain pan

Part #1137-3

The manufacturer no longer makes this part, and there's no substitute part

Strainer 990-17
#13

Humidifier diagram

Strainer

Part #990-17

The manufacturer no longer makes this part, and there's no substitute part

Pad Evaporator 990-13
#5

Humidifier diagram

Pad evaporator

Part #990-13

The manufacturer no longer makes this part, and there's no substitute part

Trough Cover 1137-35
#2

Humidifier diagram

Trough cover

Part #1137-35

The manufacturer no longer makes this part, and there's no substitute part

Strainer Body 990-18
#14

Humidifier diagram

Strainer body

Part #990-18

The manufacturer no longer makes this part, and there's no substitute part

Solenoid Vlv Asy,24v 990-53
#10

Humidifier diagram

Solenoid vlv asy,24v

Part #990-53

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Asy(24v.) 1042-16
#6

Humidifier diagram

Cabinet asy(24v.)

Part #1042-16

The manufacturer no longer makes this part, and there's no substitute part

Drain Tube 1099-16
#17

Humidifier diagram

Drain tube

Part #1099-16

The manufacturer no longer makes this part, and there's no substitute part

Orifice/st 990-37-76
#11

Humidifier diagram

Orifice/st

Part #990-37-76

The manufacturer no longer makes this part, and there's no substitute part

Thumb Nut 1099-9
#1

Humidifier diagram

Thumb nut

Part #1099-9

The manufacturer no longer makes this part, and there's no substitute part
