Model # EAC1/P94181-1F Official Amana electronic air cleaner - eac1

Here are the diagrams and repair parts for Official Amana EAC1-P94181-1F electronic air cleaner - eac1, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Capacitor, .75 Uf, 660 Vac R0102401
#43

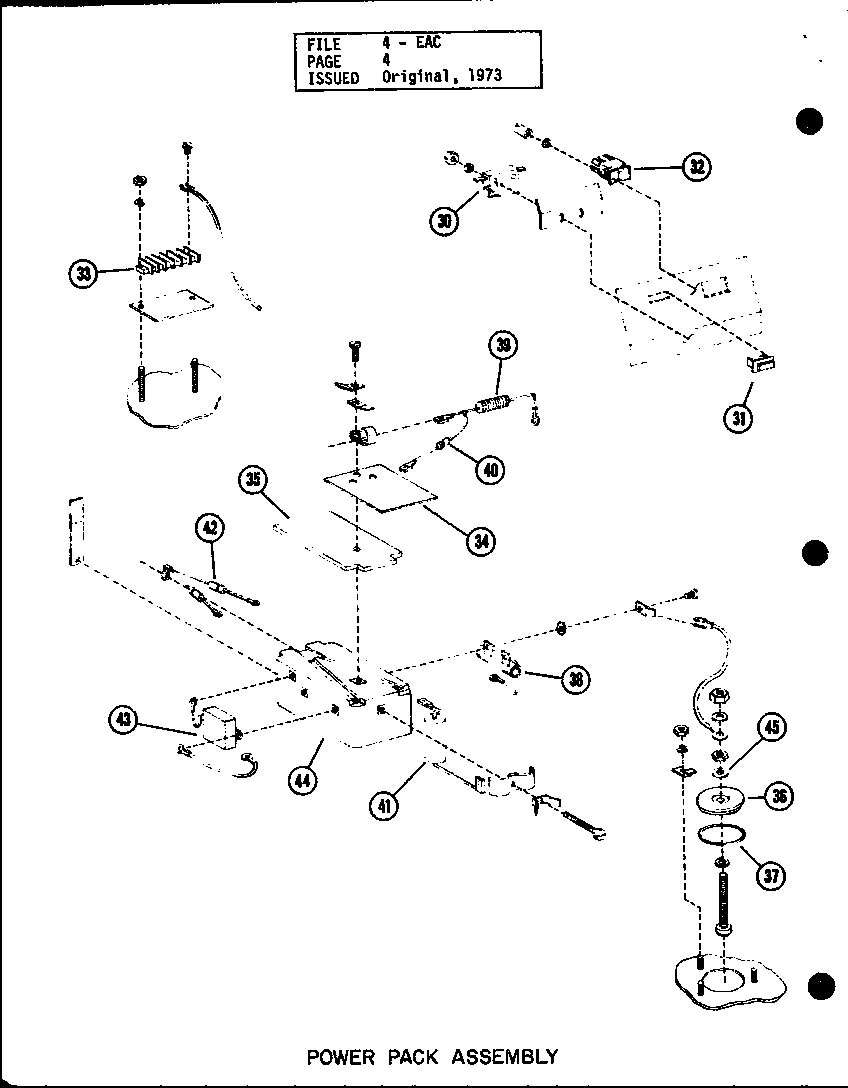

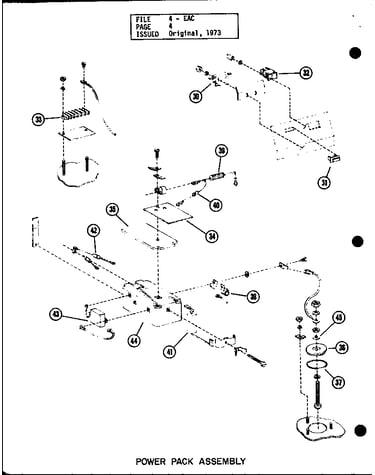

Power pack assembly diagram

Capacitor, .75 uf, 660 vac

Part #R0102401

The manufacturer no longer makes this part, and there's no substitute part

Transformer Assembly, W/transformer Rectifier Cover, Cap R0102501
#44A

Power pack assembly diagram

Transformer assembly, w/transformer rectifier cover, cap

Part #R0102501

The manufacturer no longer makes this part, and there's no substitute part

Solenoid Valve, 1/2" Ips J-400, W/strainer, Complete R0100001
#9

Cabinet parts diagram

Solenoid valve, 1/2" ips j-400, w/strainer, complete

Part #R0100001

The manufacturer no longer makes this part, and there's no substitute part

Bar, Ionizing Wire Support R0103001
#63

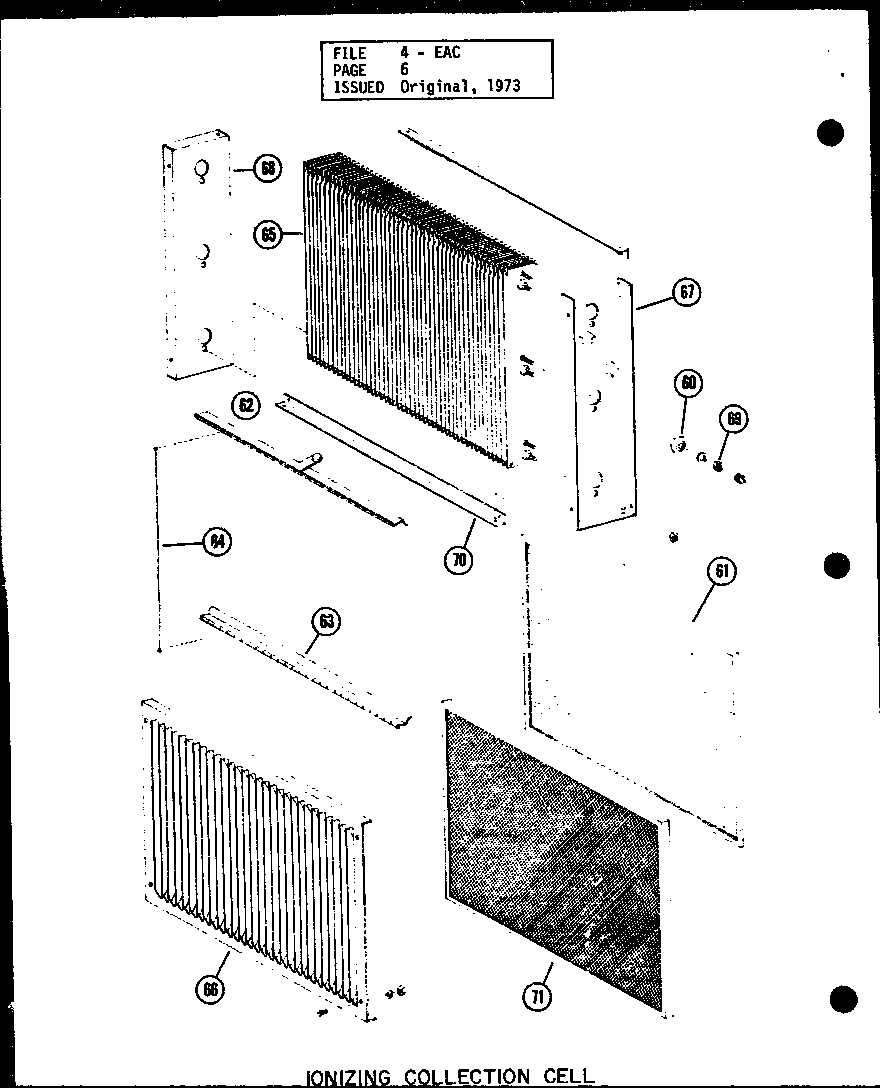

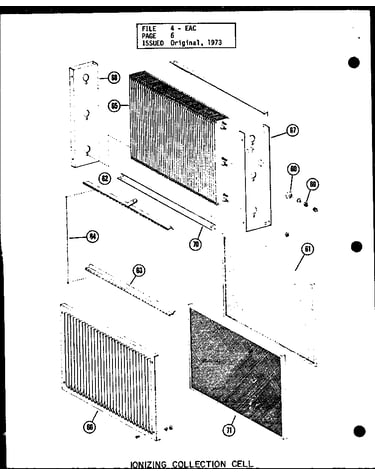

Ionizingcollection cell diagram

Bar, ionizing wire support

Part #R0103001

The manufacturer no longer makes this part, and there's no substitute part

Valve Plunger R0100201
#11

Cabinet parts diagram

Valve plunger

Part #R0100201

The manufacturer no longer makes this part, and there's no substitute part

Suppressor, Water Spray, 20 X 25 X 1 R0104201
#71

Ionizingcollection cell diagram

Suppressor, water spray, 20 x 25 x 1

Part #R0104201

The manufacturer no longer makes this part, and there's no substitute part

Barrier, Insulation R0101301
#34

Power pack assembly diagram

Barrier, insulation

Part #R0101301

The manufacturer no longer makes this part, and there's no substitute part

Insulating Cap Nuts/washers R0103601
#69

Ionizingcollection cell diagram

Insulating cap nuts/washers

Part #R0103601

The manufacturer no longer makes this part, and there's no substitute part

Water Spray Nozzle, Sweat Fitting R0100701
#16

Cabinet parts diagram

Water spray nozzle, sweat fitting

Part #R0100701

The manufacturer no longer makes this part, and there's no substitute part

Power Pack Assembly R0101202
#1B

Cabinet parts diagram

Power pack assembly

Part #R0101202

The manufacturer no longer makes this part, and there's no substitute part
