Model # 152241230 Official Craftsman bench grinder

Here are the diagrams and repair parts for Official Craftsman 152241230 bench grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Lock Washer, 5/16-in, 8-pack STD551131
#4

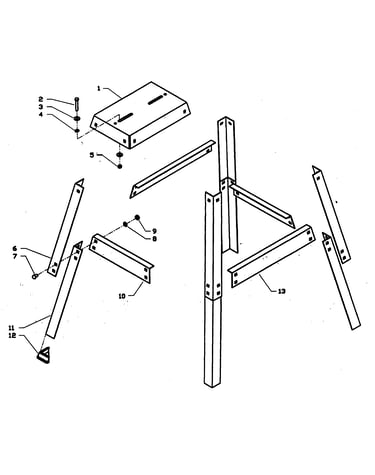

Grinder stand diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

5/16" Flat Washer (3) STD551031
5/16" flat washer (3)

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Screw 8pk STD511003
Screw 8pk

Part #STD511003

The manufacturer no longer makes this part, and there's no substitute part

Plate OR90167
#74

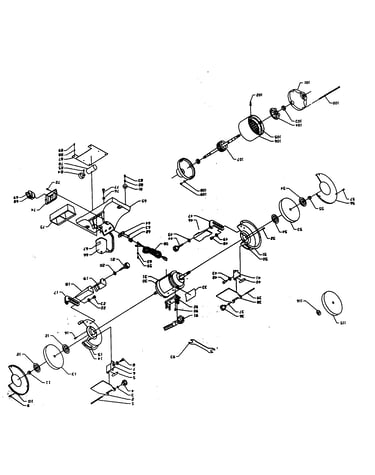

Bench grinder/leg diagram

Plate

Part #OR90167

The manufacturer no longer makes this part, and there's no substitute part

Dresser OR90049
#91

Bench grinder/leg diagram

Dresser

Part #OR90049

The manufacturer no longer makes this part, and there's no substitute part

Bearing STD315225
#103

Bench grinder/leg diagram

Bearing

Part #STD315225

The manufacturer no longer makes this part, and there's no substitute part

Tray OR90040
#75

Bench grinder/leg diagram

Tray

Part #OR90040

The manufacturer no longer makes this part, and there's no substitute part

Support OR90008
#17

Bench grinder/leg diagram

Support

Part #OR90008

The manufacturer no longer makes this part, and there's no substitute part

Spec Plate OR91452
#33

Bench grinder/leg diagram

Spec plate

Part #OR91452

The manufacturer no longer makes this part, and there's no substitute part

Support OR90395
#13

Grinder stand diagram

Support

Part #OR90395

The manufacturer no longer makes this part, and there's no substitute part
