Whirlpool
Wall Oven/Microwave Combo

Model # WOC54EC0AS04 Official Whirlpool wall oven/microwave combo

Here are the diagrams and repair parts for Official Whirlpool WOC54EC0AS04 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

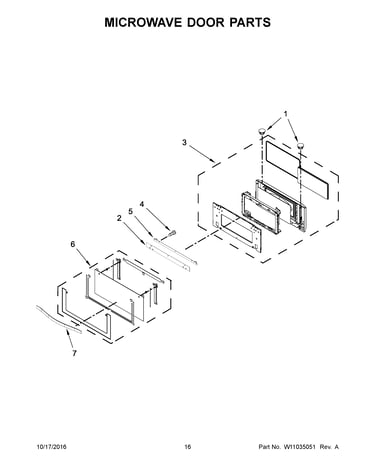

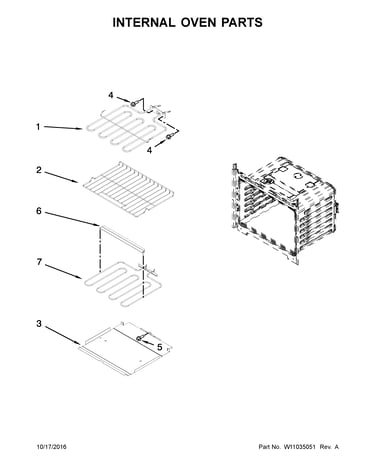

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Microwave Door Switch W10330566
#15

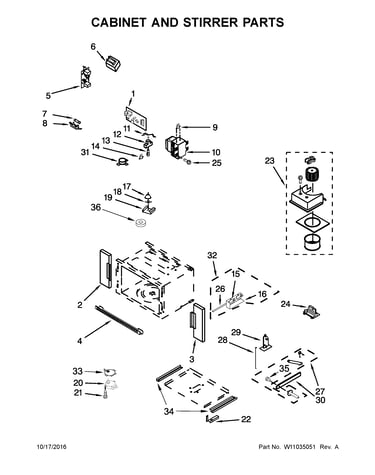

Cabinet and stirrer parts diagram

Microwave door switch

Part #W10330566

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
BEST SELLER
$32.82 |
40% OFF MSRP : $55.00
In Stock
Inverter W10468206
#24

Cabinet and stirrer parts diagram

Inverter

Part #W10468206

Replaced by #W10217711

?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
BEST SELLER
$202.82 |
19% OFF MSRP : $250.00
In Stock
Spray W 350930
#NI

Optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range High-limit Thermostat 4449751
#18

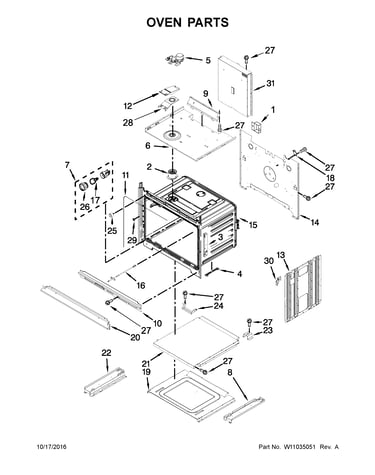

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
9% OFF Phone Price : $111.25
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
25% OFF MSRP : $12.00
In Stock
Microwave Turntable Motor 461967848971
#20

Cabinet and stirrer parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
$75.47 |
20% OFF MSRP : $94.00
In Stock
O Mica Plate 461967451001
#4

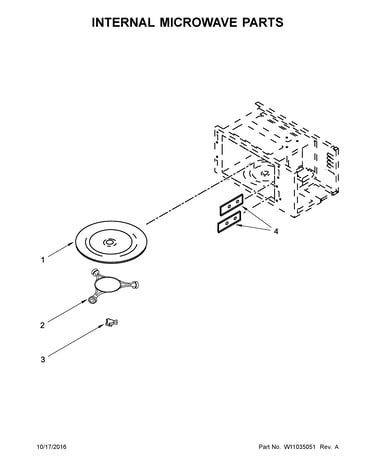

Internal microwave parts diagram

O mica plate

Part #461967451001

Replaced by #W10915651

?
Manufacturer substitution
This part replaces 461967451001. Substitute parts can look different from the original.
$36.13 |
12% OFF Phone Price : $41.13
In Stock
Adhesive 482338
#NI

Optional parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
37% OFF MSRP : $50.00
In Stock
Oven Door Glass W10587556
#7B

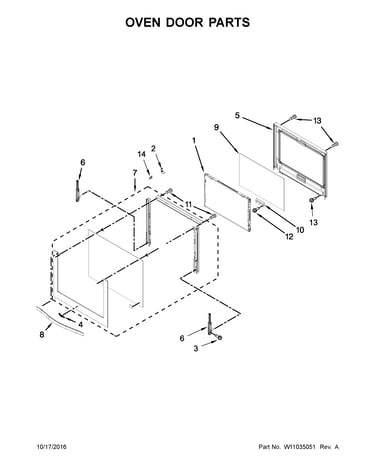

Oven door parts diagram

Oven door glass

Part #W10587556

Replaced by #W10577911

?
Manufacturer substitution
This part replaces W10587556. Substitute parts can look different from the original.
$233.22 |
$10.00 OFF Phone Price : $243.22
In Stock
Dual Speed B W10669823
#5

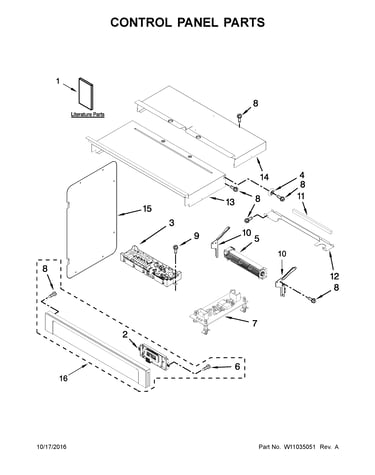

Control panel parts diagram

Dual speed b

Part #W10669823

Replaced by #W11245567

?
Manufacturer substitution
This part replaces W10669823. Substitute parts can look different from the original.
$195.84 |
11% OFF MSRP : $220.00
In Stock
