Model # BDV-E3100 Official Sony dvd home theater system

Here are the diagrams and repair parts for Official Sony BDV-E3100 dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

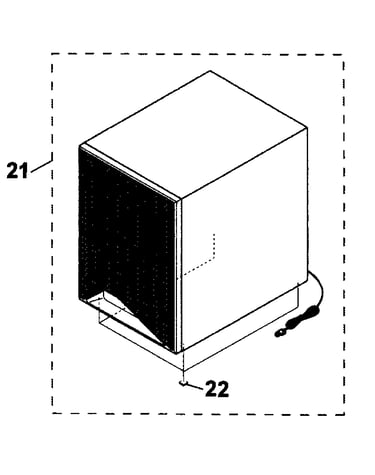

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Flat Cable 184634861
#208

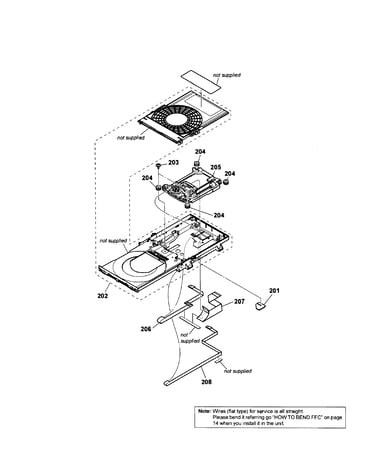

Drive section diagram

Flat cable

Part #184634861

The manufacturer no longer makes this part, and there's no substitute part

Spring Load 429543101
#4

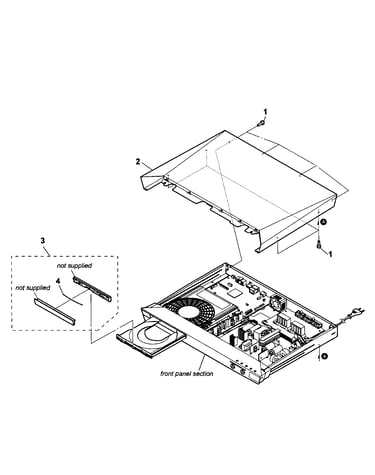

Case diagram

Spring load

Part #429543101

The manufacturer no longer makes this part, and there's no substitute part

Foot 429559001
#152

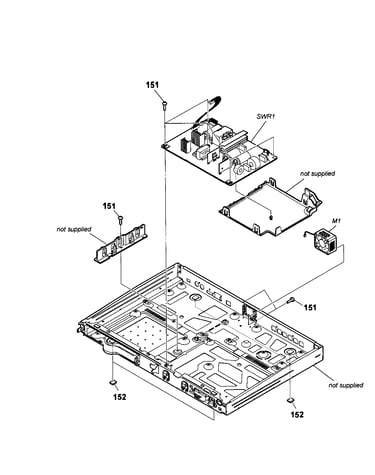

Chassis diagram

Foot

Part #429559001

Replaced by #429559001

?
Manufacturer substitution
This part replaces 429559001. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Spkr Fr-l A1900298A
#31

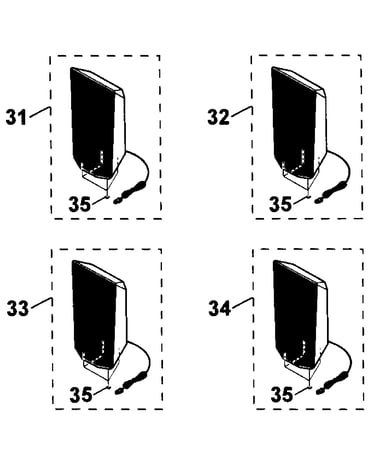

Speaker diagram

Spkr fr-l

Part #A1900298A

Replaced by #A1900298A

?
Manufacturer substitution
This part replaces A1900298A. Substitute parts can look different from the original.
$145.50
In Stock
Loading Fo A1850153C
#202

Drive section diagram

Loading fo

Part #A1850153C

The manufacturer no longer makes this part, and there's no substitute part

Speaker A1900302A
#11

Center speaker diagram

Speaker

Part #A1900302A

Replaced by #A1900302A

?
Manufacturer substitution
This part replaces A1900302A. Substitute parts can look different from the original.
$158.40
In Stock
Flat Cable 184634961
#206

Drive section diagram

Flat cable

Part #184634961

The manufacturer no longer makes this part, and there's no substitute part

Pcb Mb1002 A1901565A
#102

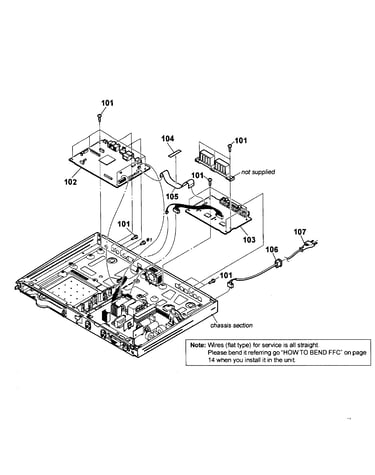

Chassis bottom diagram

Pcb mb1002

Part #A1901565A

The manufacturer no longer makes this part, and there's no substitute part

Cable Flat,8p 184637851
#52

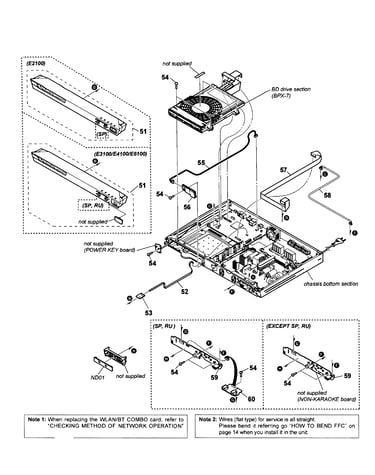

Front panel diagram

Cable flat,8p

Part #184637851

The manufacturer no longer makes this part, and there's no substitute part

Screw 234511501
#203

Drive section diagram

Screw

Part #234511501

Replaced by #234511501

?
Manufacturer substitution
This part replaces 234511501. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
