DeWalt
Router

Model # D26670 TYPE 1 Official DeWalt router

Here are the diagrams and repair parts for Official DeWalt D26670-TYPE-1 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Sub-base 893130
#215

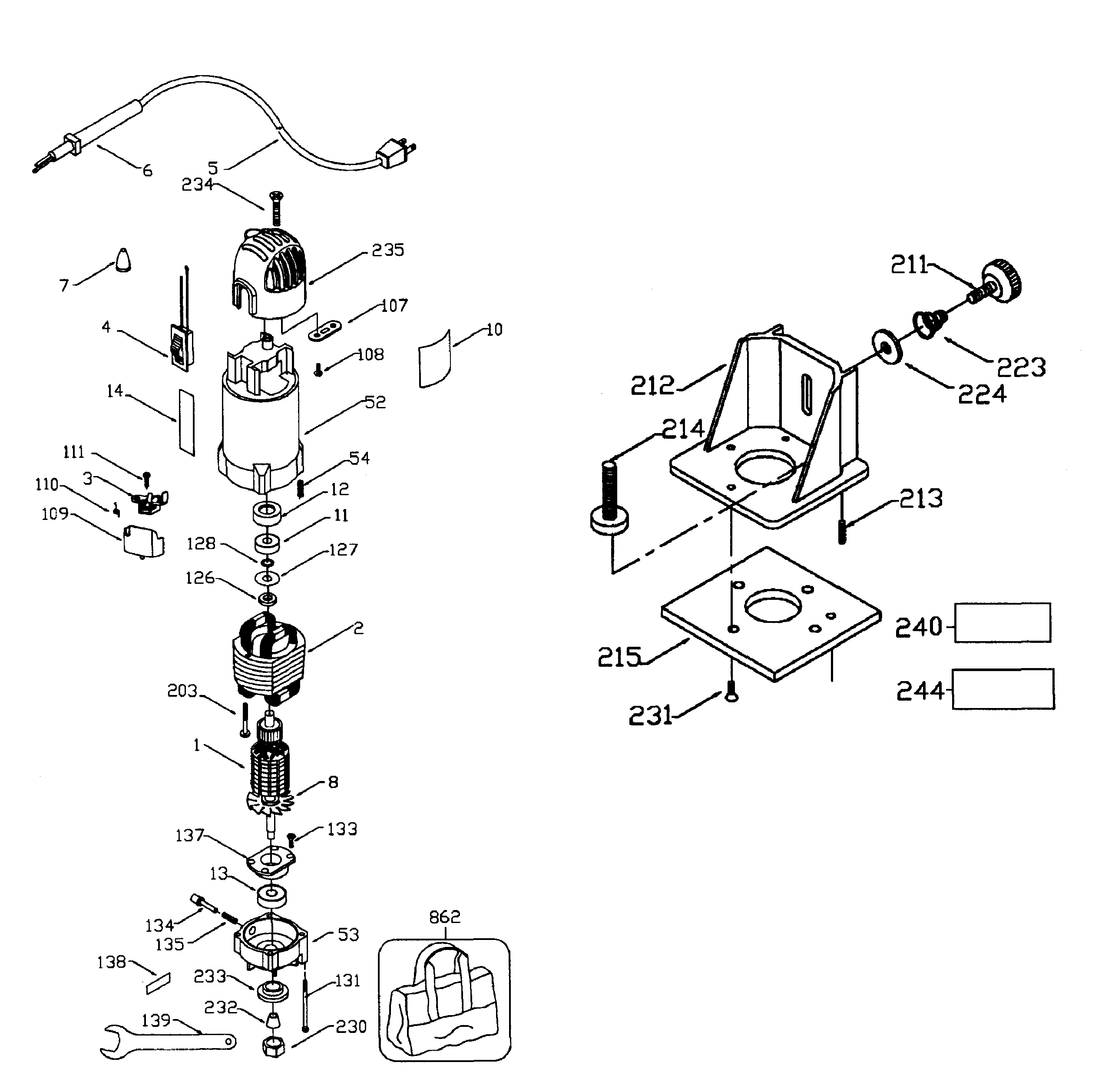

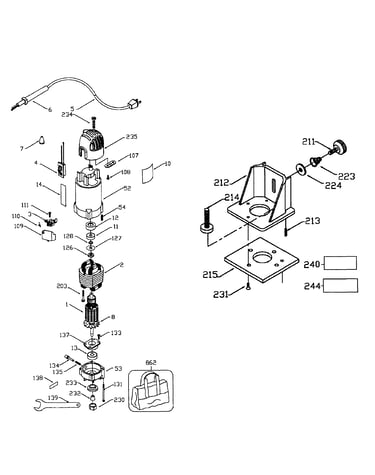

Trimmer diagram

Sub-base

Part #893130

The manufacturer no longer makes this part, and there's no substitute part

Tool Bag A19681
#862

Trimmer diagram

Tool bag

Part #A19681

The manufacturer no longer makes this part, and there's no substitute part

End Cap A18083
#235

Trimmer diagram

End cap

Part #A18083

The manufacturer no longer makes this part, and there's no substitute part

Motor Hsg. A18660
#52

Trimmer diagram

Motor hsg.

Part #A18660

The manufacturer no longer makes this part, and there's no substitute part

Nameplate A18649
#10

Trimmer diagram

Nameplate

Part #A18649

The manufacturer no longer makes this part, and there's no substitute part

Warning La A19377
#240

Trimmer diagram

Warning la

Part #A19377

The manufacturer no longer makes this part, and there's no substitute part

Nameplate A18889
#244

Trimmer diagram

Nameplate

Part #A18889

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut 691257
#230

Trimmer diagram

Collet nut

Part #691257

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 874538SV
#13

Trimmer diagram

Ball bearing

Part #874538SV

The manufacturer no longer makes this part, and there's no substitute part

Base 893129
#212

Trimmer diagram

Base

Part #893129

The manufacturer no longer makes this part, and there's no substitute part
