Kenmore
Countertop Microwave

Model # 5629947310 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5629947310 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

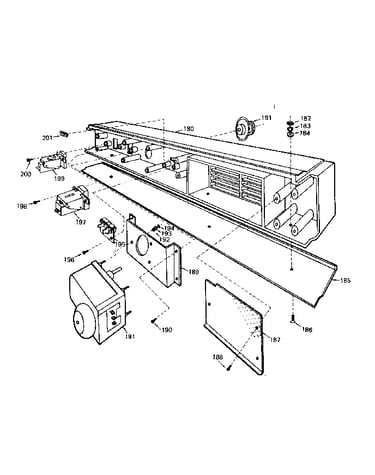

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |

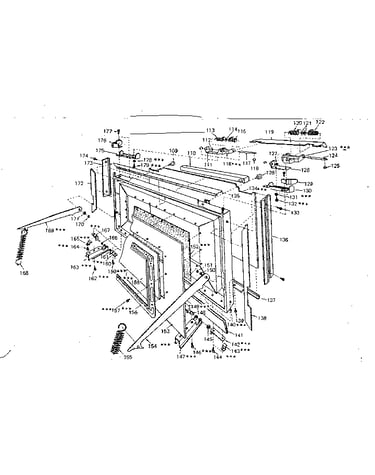

Door Catch 976347
Door catch

Part #976347

This item is not returnable
$2.29
In Stock
Knob 976204
#75

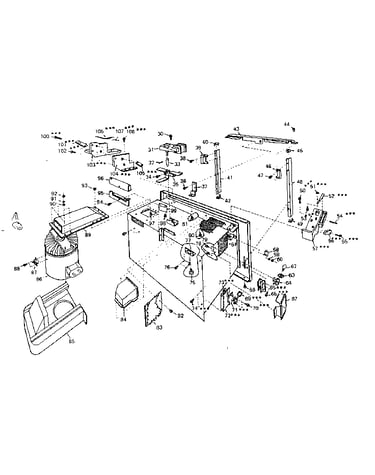

Oven assembly diagram

Knob

Part #976204

The manufacturer no longer makes this part, and there's no substitute part

Retainer 976203
#77

Oven assembly diagram

Retainer

Part #976203

The manufacturer no longer makes this part, and there's no substitute part

Light 976173
Light

Part #976173

Replaced by #W10873798

?
Manufacturer substitution
This part replaces 976173. Substitute parts can look different from the original.
$8.66
In Stock
Cookbook 979717

#NI

All parts diagram

Cookbook

Part #979717

Replaced by #LIT979717

?
Manufacturer substitution
This part replaces 979717. Substitute parts can look different from the original.
This item is not returnable
$6.50
In Stock
Bracket 976317
Bracket

Part #976317

The manufacturer no longer makes this part, and there's no substitute part

Reflector 976380
#99

Oven assembly diagram

Reflector

Part #976380

The manufacturer no longer makes this part, and there's no substitute part

Transformer 976284
#2

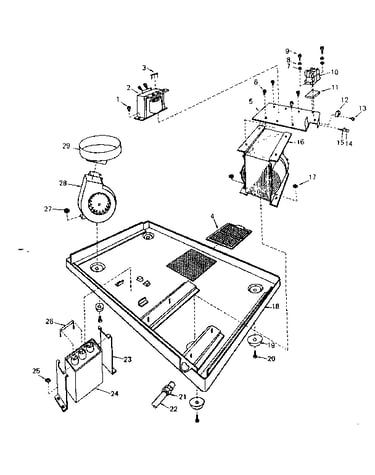

Oven base assembly diagram

Transformer

Part #976284

The manufacturer no longer makes this part, and there's no substitute part

Screw 976273
#76

Oven assembly diagram

Screw

Part #976273

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 979745
#207

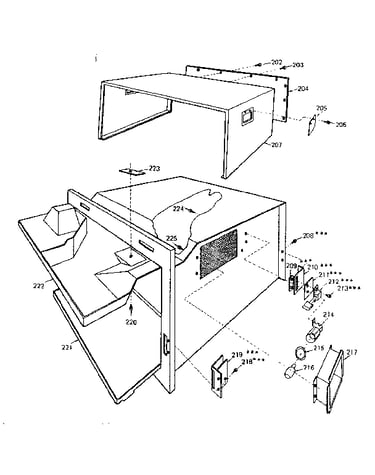

Oven right side view diagram

Cabinet

Part #979745

The manufacturer no longer makes this part, and there's no substitute part
