Model # GHT180-TYPE 3 Official Weed Eater hedge trimmer

Here are the diagrams and repair parts for Official Weed Eater GHT180-TYPE-3 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

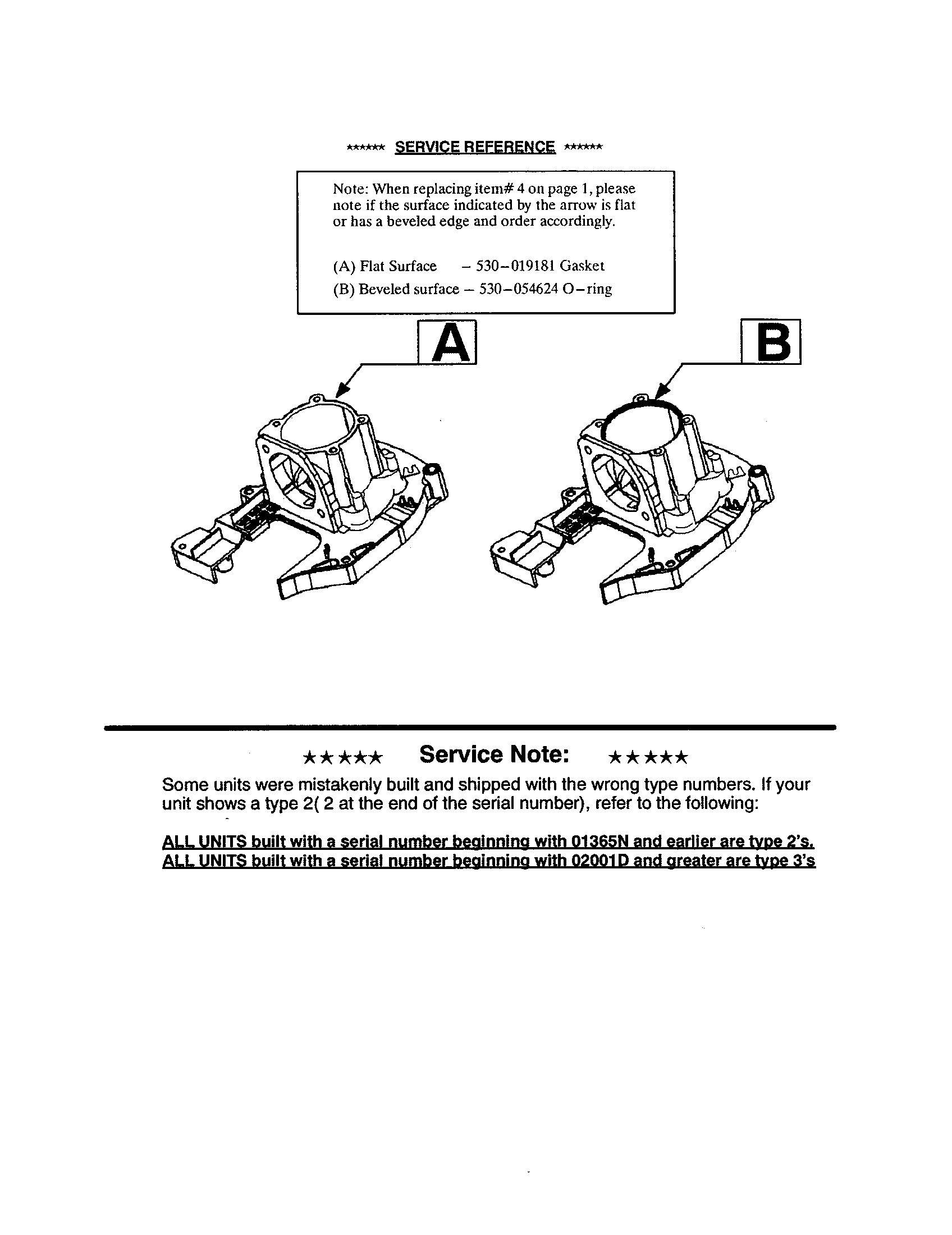

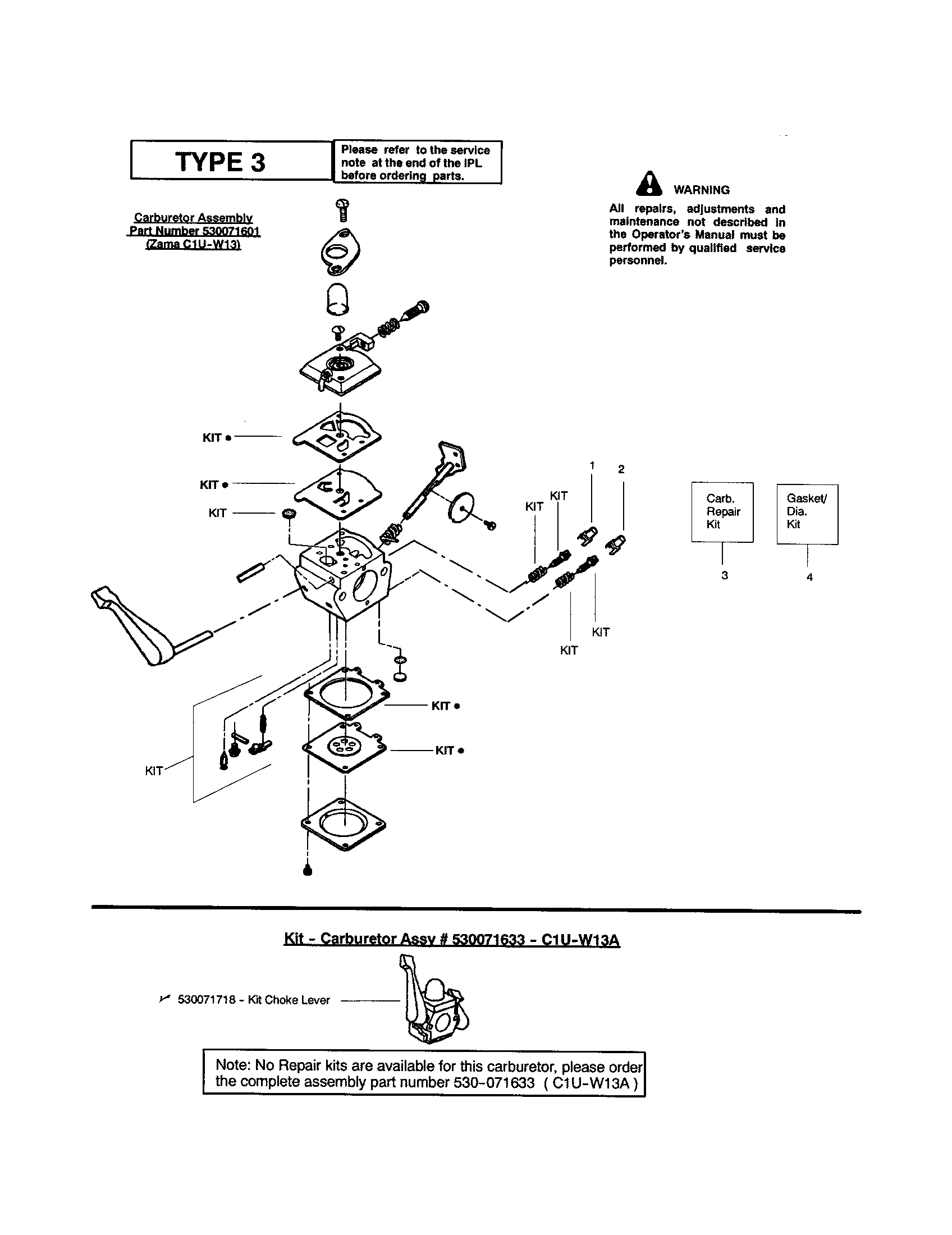

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#51

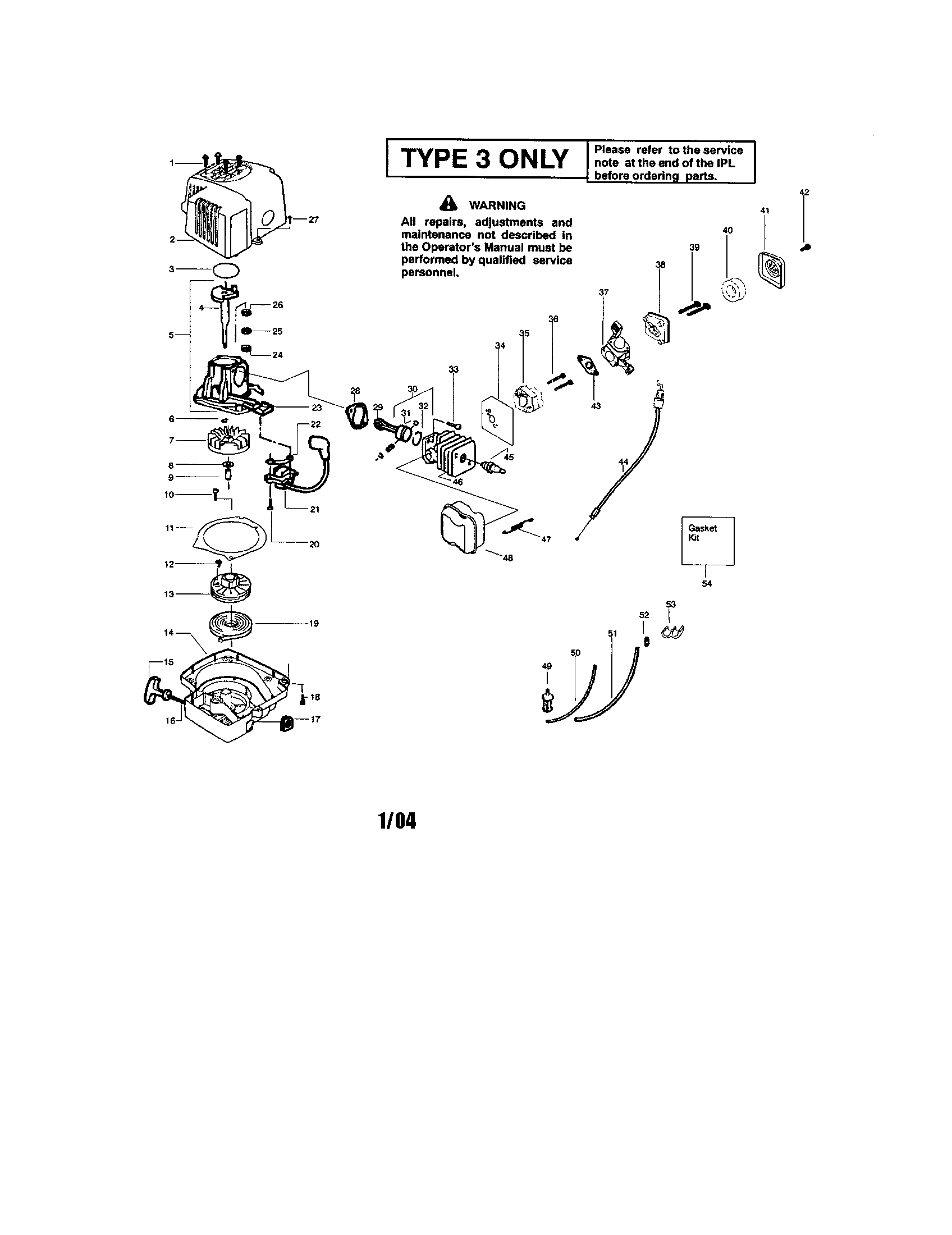

Crankcase/cylinder/crankshaft diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
This item is not returnable
$6.37 |
14% OFF Phone Price : $7.37
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#52

Crankcase/cylinder/crankshaft diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Piston Ring 530055120
#32

Crankcase/cylinder/crankshaft diagram

Piston ring

Part #530055120

Replaced by #545154001

?
Manufacturer substitution
This part replaces 530055120. Substitute parts can look different from the original.
This item is not returnable
$3.09 |
24% OFF Phone Price : $4.09
In Stock
Flywheel Assembly 530071487
#7

Crankcase/cylinder/crankshaft diagram

Flywheel assembly

Part #530071487

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530071487. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Fuel Cap 530036965
#20

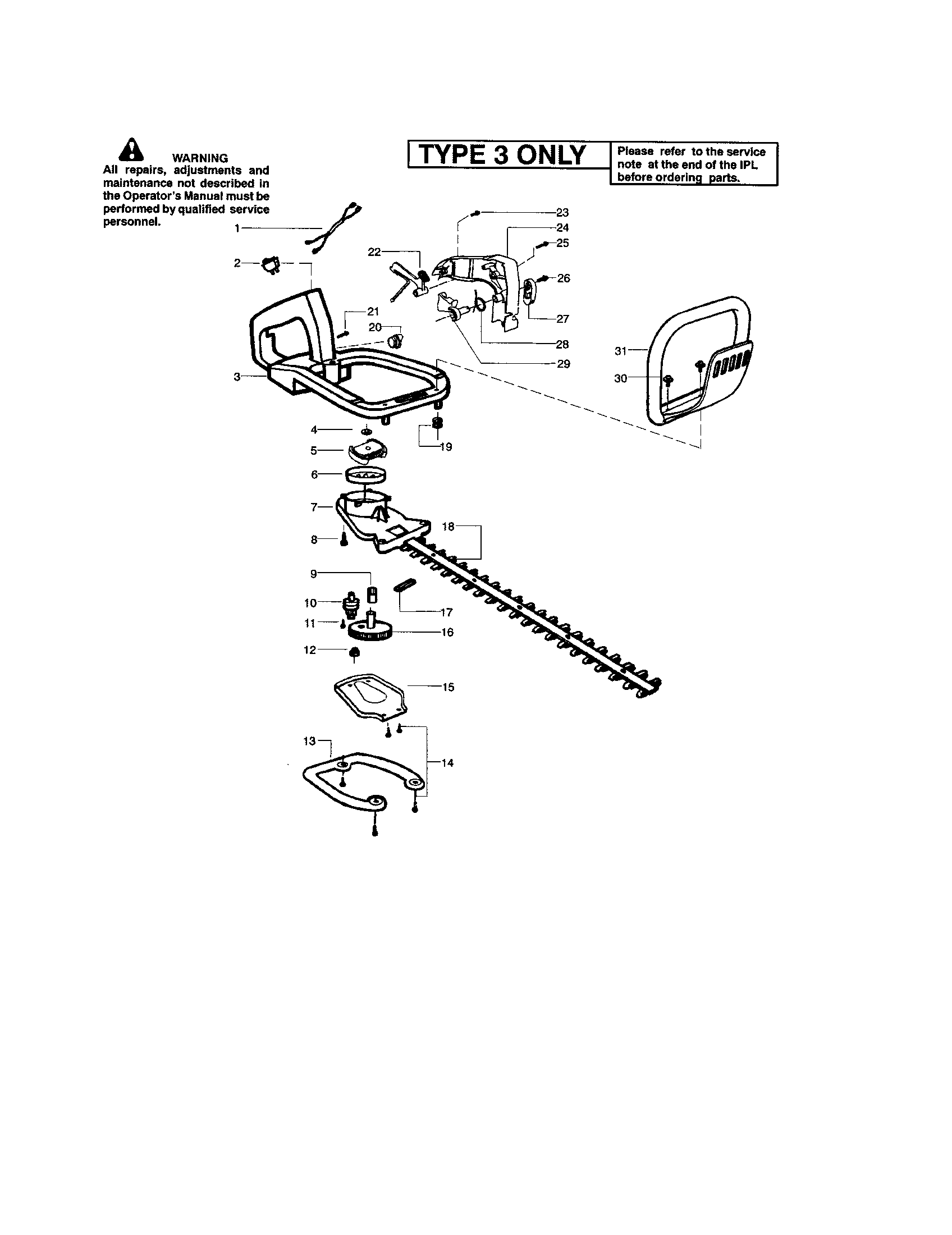

Blade/handle/clutch diagram

Fuel cap

Part #530036965

Replaced by #577858601

?
Manufacturer substitution
This part replaces 530036965. Substitute parts can look different from the original.
This item is not returnable
$5.39 |
16% OFF Phone Price : $6.39
In Stock
Piston Kit 530071357
#30

Crankcase/cylinder/crankshaft diagram

Piston kit

Part #530071357

Replaced by #530071833

?
Manufacturer substitution
This part replaces 530071357. Substitute parts can look different from the original.
$24.19 |
17% OFF Phone Price : $29.19
In Stock
Lawn & Garden Equipment Screw 530015805
#11

Blade/handle/clutch diagram

Lawn & garden equipment screw

Part #530015805

This item is not returnable
$3.43
In Stock
Hedge Trimmer Fuel Filter 530095992
#49

Crankcase/cylinder/crankshaft diagram

Hedge trimmer fuel filter

Part #530095992

This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Accy We Spar 952030249
#45

Crankcase/cylinder/crankshaft diagram

Accy we spar

Part #952030249

Replaced by #530030180

?
Manufacturer substitution
This part replaces 952030249. Substitute parts can look different from the original.
This item is not returnable
$4.09 |
21% OFF MSRP : $5.20
In Stock
Line Trimmer Engine Piston Pin 530015162
#31

Crankcase/cylinder/crankshaft diagram

Line trimmer engine piston pin

Part #530015162

This item is not returnable
$3.73
In Stock
