Model # 137287100 Official Craftsman shaper/router

Here are the diagrams and repair parts for Official Craftsman 137287100 shaper/router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 74 parts |

#60

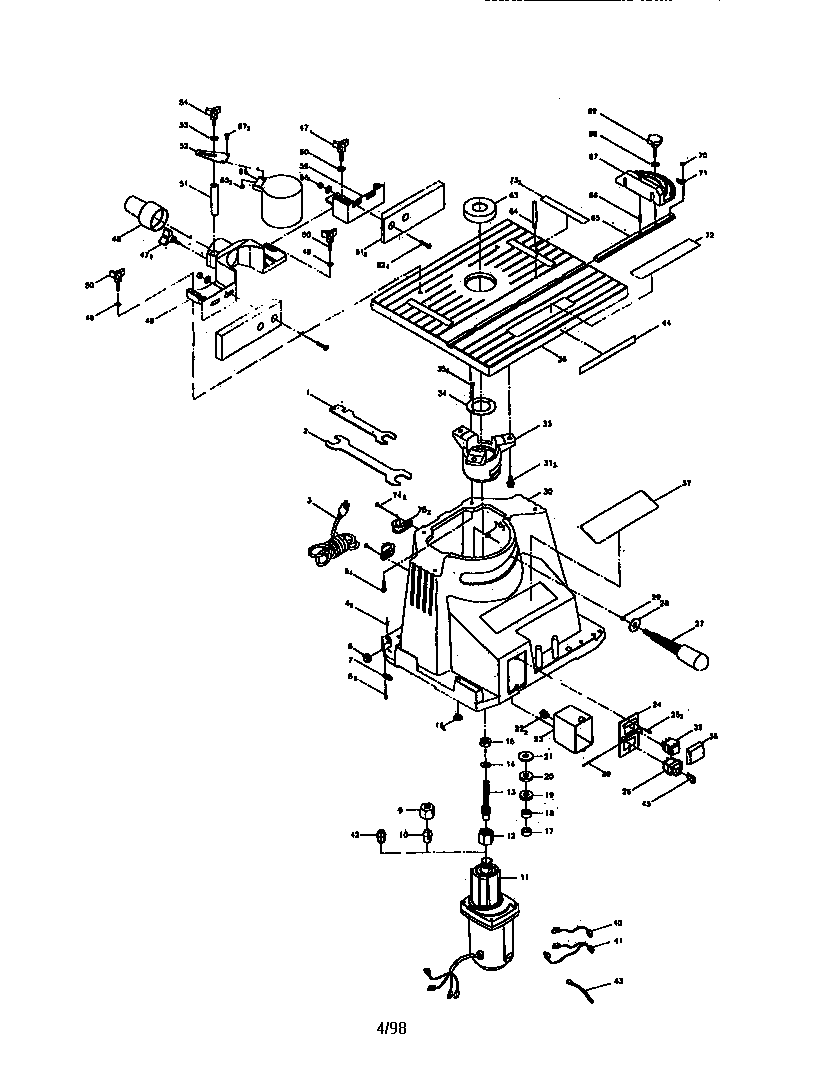

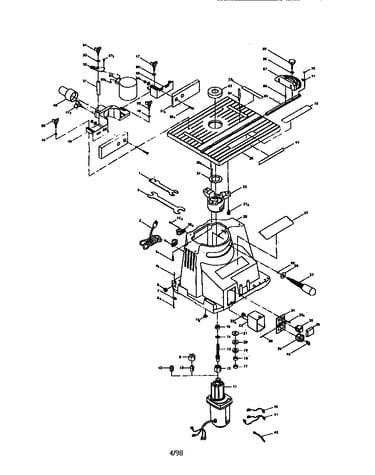

Craftsman shaper/router diagram

Washer

Part #2501NBDN10

The manufacturer no longer makes this part, and there's no substitute part

Washer

Part #2501NBDN25

The manufacturer no longer makes this part, and there's no substitute part

#11

Craftsman shaper/router diagram

Motor (black)

Part #8381028204

The manufacturer no longer makes this part, and there's no substitute part

#71

Craftsman shaper/router diagram

Sander gauge indicator

Part #14606001

The manufacturer no longer makes this part, and there's no substitute part

#59

Craftsman shaper/router diagram

Bracket

Part #18311501

The manufacturer no longer makes this part, and there's no substitute part

#67

Craftsman shaper/router diagram

Sander miter gauge

Part #14607802

The manufacturer no longer makes this part, and there's no substitute part

#61

Craftsman shaper/router diagram

Fence board

Part #18311801

The manufacturer no longer makes this part, and there's no substitute part

#64

Craftsman shaper/router diagram

Part #18312001

The manufacturer no longer makes this part, and there's no substitute part

#38

Craftsman shaper/router diagram

Cover

Part #18304001

The manufacturer no longer makes this part, and there's no substitute part

#13

Craftsman shaper/router diagram

Spindle

Part #18301401

The manufacturer no longer makes this part, and there's no substitute part
