Model # 345 Official Wagner power painter

Here are the diagrams and repair parts for Official Wagner 345 power painter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 24 parts |

#12

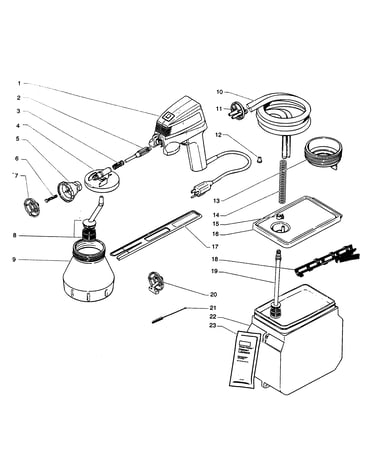

Power painter diagram

Adapter

Part #0272341

The manufacturer no longer makes this part, and there's no substitute part

Power painter diagram

Paint sprayer suction tube

Part #0272109

The manufacturer no longer makes this part, and there's no substitute part

#17

Power painter diagram

Stir stick

Part #0154559

The manufacturer no longer makes this part, and there's no substitute part

Power painter diagram

Valve assembly

Part #0272116

The manufacturer no longer makes this part, and there's no substitute part

#13

Power painter diagram

Ring

Part #0285351

The manufacturer no longer makes this part, and there's no substitute part

#20

Power painter diagram

Tip,wide angle

Part #0272223

The manufacturer no longer makes this part, and there's no substitute part

Power painter diagram

Nut locking

Part #0272300

The manufacturer no longer makes this part, and there's no substitute part

#22

Power painter diagram

Backpack

Part #0272375

The manufacturer no longer makes this part, and there's no substitute part

#23

Power painter diagram

Cleaner

Part #0280113

The manufacturer no longer makes this part, and there's no substitute part

Power painter diagram

Paint sprayer piston spring

Part #0016101

The manufacturer no longer makes this part, and there's no substitute part
