Kenmore
Wine & Beverage Cooler

Model # 40599269 Official Kenmore wine cooler

Here are the diagrams and repair parts for Official Kenmore 40599269 wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Shelf 502901060052
#8

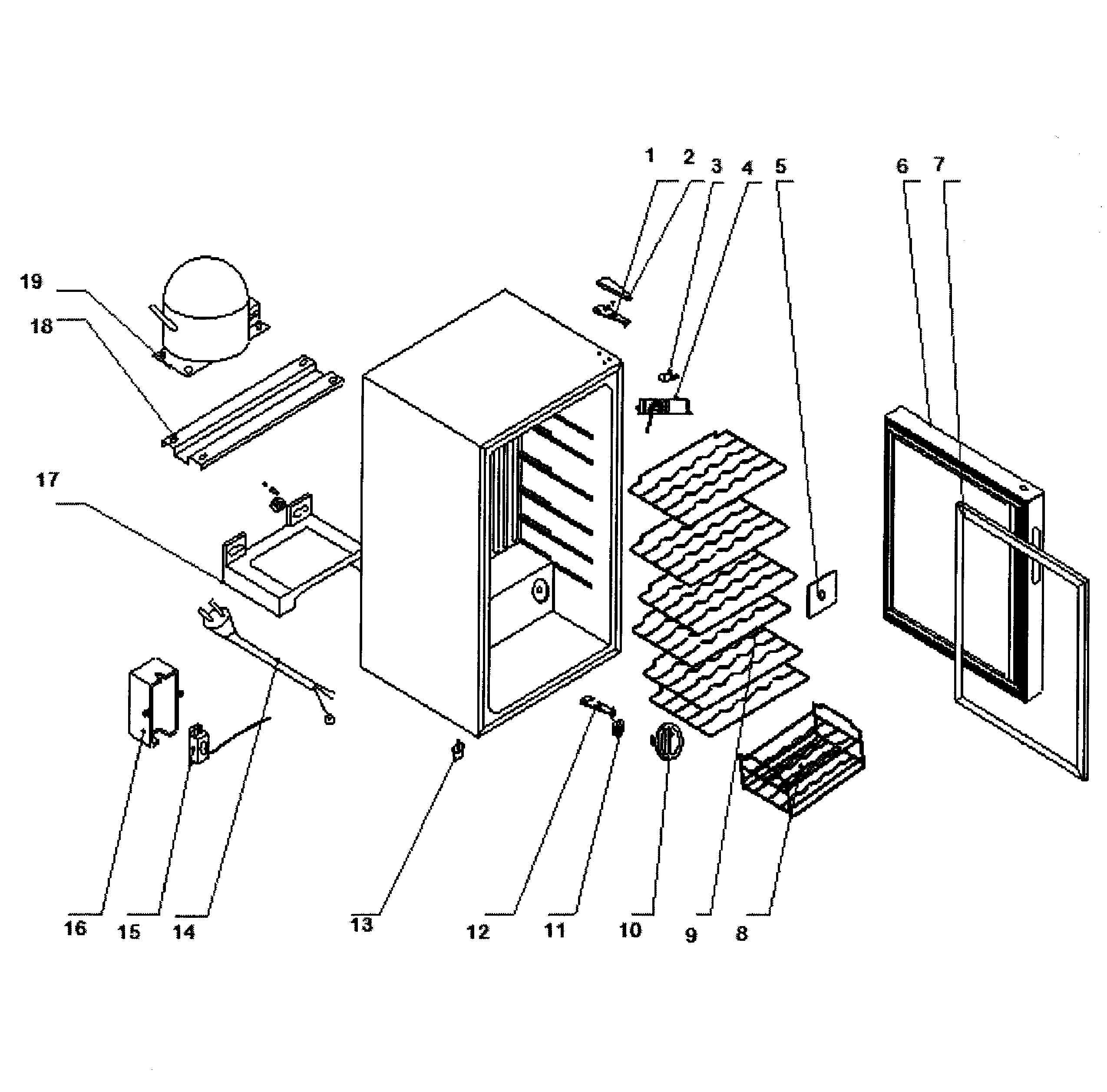

Cooler assy diagram

Shelf

Part #502901060052

$27.99
In Stock
Base 500705040002
#18

Cooler assy diagram

Base

Part #500705040002

$75.99
In Stock
Knob 501107260027
#10

Cooler assy diagram

Knob

Part #501107260027

This item is not returnable
$6.99
In Stock
Wine Cooler Leveling Leg 501106840006
#11

Cooler assy diagram

Wine cooler leveling leg

Part #501106840006

This item is not returnable
$6.49
In Stock
Hinge 50290504000D
#1

Cooler assy diagram

Hinge

Part #50290504000D

$24.49
In Stock
Control Box 50111106000A
#16

Cooler assy diagram

Control box

Part #50111106000A

$33.49
In Stock
Power Cord 502401050018
#14

Cooler assy diagram

Power cord

Part #502401050018

$51.99
In Stock
Shelf 502901060029
#9

Cooler assy diagram

Shelf

Part #502901060029

$27.99
In Stock
Clip 501111210029
#5

Cooler assy diagram

Clip

Part #501111210029

This item is not returnable
$6.99
In Stock
Wine Cooler Leveling Leg 501105040029
#13

Cooler assy diagram

Wine cooler leveling leg

Part #501105040029

The manufacturer no longer makes this part, and there's no substitute part
