Model # DSC-HX20V/T Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX20V-T digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Assembly X25829321
#101

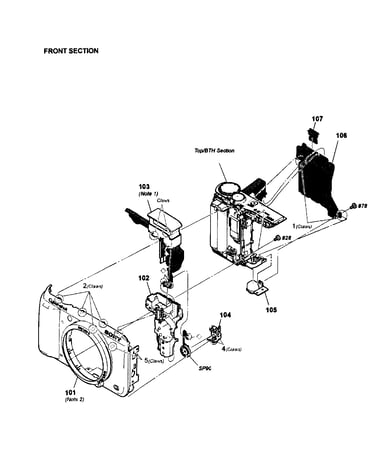

Front assy diagram

Assembly

Part #X25829321

$93.86
In Stock
Bth Assy,brown X25829341
#151

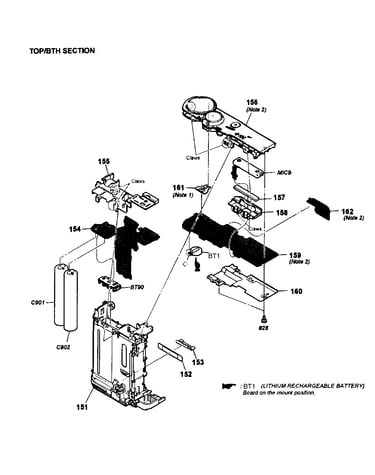

Top/bth assy diagram

Bth assy,brown

Part #X25829341

$30.16
In Stock
Usb Cable 183966611
#NI

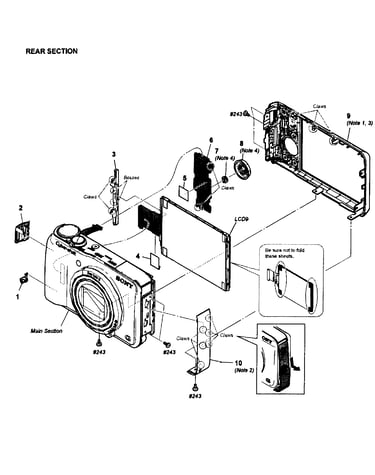

Rear assy diagram

Usb cable

Part #183966611

$27.66
In Stock
Frame Main 442062601
#57

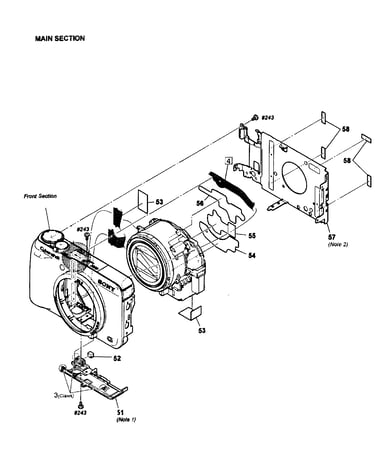

Main assy diagram

Frame main

Part #442062601

$15.21
In Stock
Assembly X25829361
#156

Top/bth assy diagram

Assembly

Part #X25829361

$62.91
In Stock
Rotary Plate 441659901
#161

Top/bth assy diagram

Rotary plate

Part #441659901

This item is not returnable
$2.65
In Stock
Lcd Panel A1872487A
#LCD1

Rear assy diagram

Lcd panel

Part #A1872487A

$107.61
In Stock
Pcb Bt-077 A1870789A
#154

Top/bth assy diagram

Pcb bt-077

Part #A1870789A

$47.38
In Stock
Lcd Retain 442062901
#3

Rear assy diagram

Lcd retain

Part #442062901

$8.03
In Stock
Gear,narut 442472001
#210

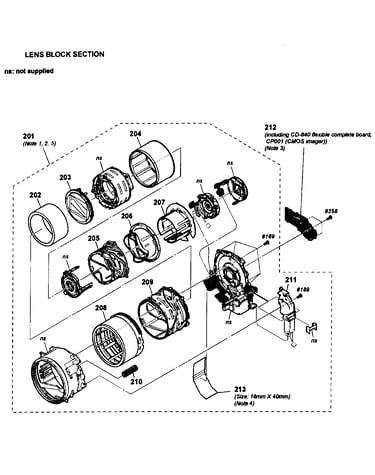

Lens assy diagram

Gear,narut

Part #442472001

$55.52
In Stock
