Model # 165671300 Official Kenmore 4 to 8-cup percolator

Here are the diagrams and repair parts for Official Kenmore 165671300 4 to 8-cup percolator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Gasket P32GA005
#5

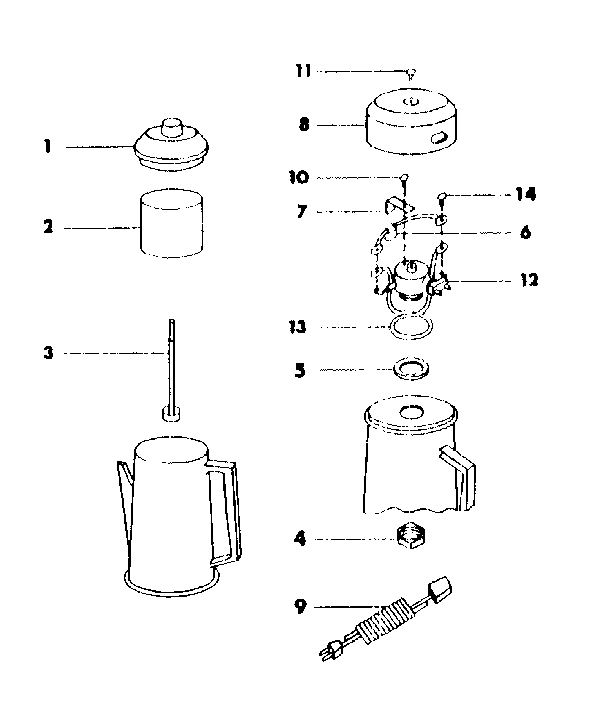

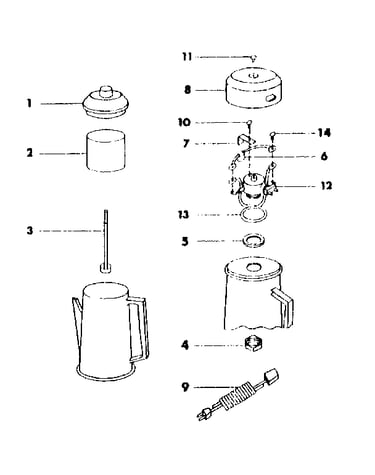

Replacement parts diagram

Gasket

Part #P32GA005

The manufacturer no longer makes this part, and there's no substitute part

Base P44PB102BR
#8

Replacement parts diagram

Base

Part #P44PB102BR

The manufacturer no longer makes this part, and there's no substitute part

Lw Ht Elmnt P27HE052
#13

Replacement parts diagram

Lw ht elmnt

Part #P27HE052

The manufacturer no longer makes this part, and there's no substitute part

Cover - White (avocado & Gold Covers Are No Longer Available.) P53PCO20BR
#1

Replacement parts diagram

Cover - white (avocado & gold covers are no longer available.)

Part #P53PCO20BR

The manufacturer no longer makes this part, and there's no substitute part

Spring P23ST017
#7

Replacement parts diagram

Spring

Part #P23ST017

The manufacturer no longer makes this part, and there's no substitute part

Nut P13NT120
#4

Replacement parts diagram

Nut

Part #P13NT120

The manufacturer no longer makes this part, and there's no substitute part

Basket P53BK005BR
#2

Replacement parts diagram

Basket

Part #P53BK005BR

The manufacturer no longer makes this part, and there's no substitute part

Element A27HE074AS
#12

Replacement parts diagram

Element

Part #A27HE074AS

The manufacturer no longer makes this part, and there's no substitute part

Screw P13MS179
#14

Replacement parts diagram

Screw

Part #P13MS179

The manufacturer no longer makes this part, and there's no substitute part

Pump M11PSO84
#3

Replacement parts diagram

Pump

Part #M11PSO84

The manufacturer no longer makes this part, and there's no substitute part
