Model # DCR-SX44L Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-SX44L digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

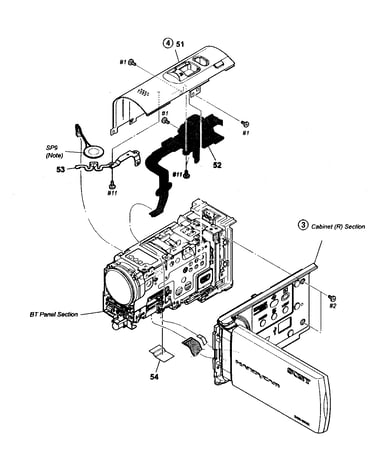

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Rechrg Bat A1738740A
#NI

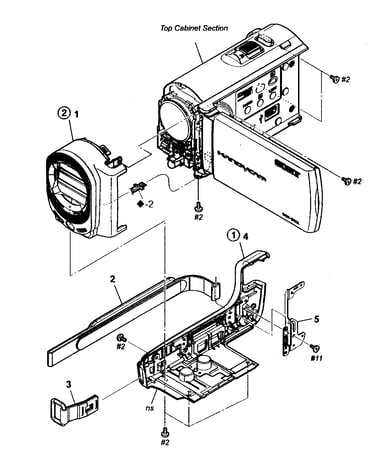

Left cabinet diagram

Rechrg bat

Part #A1738740A

The manufacturer no longer makes this part, and there's no substitute part

Gasket 416644201
#103

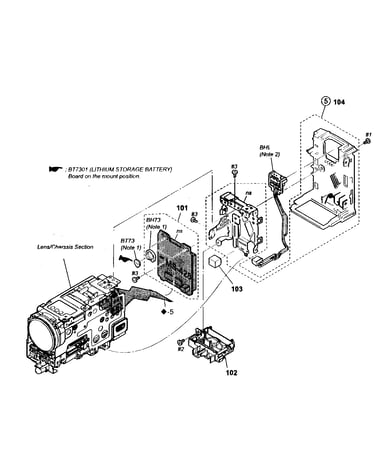

Back cabinet diagram

Gasket

Part #416644201

Replaced by #416644201

?
Manufacturer substitution
This part replaces 416644201. Substitute parts can look different from the original.
$9.09
In Stock
Insl.sheet 416644701
#203

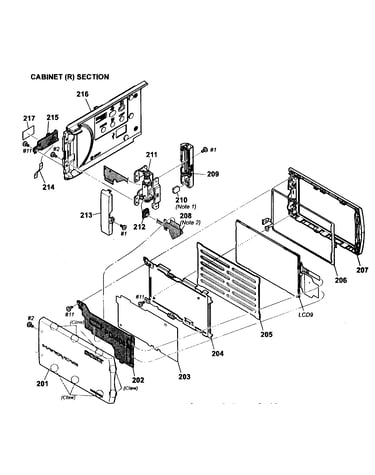

Right cabinet diagram

Insl.sheet

Part #416644701

Replaced by #416644701

?
Manufacturer substitution
This part replaces 416644701. Substitute parts can look different from the original.
$14.61
In Stock
Fp1169 Pcb 188015111
#208

Right cabinet diagram

Fp1169 pcb

Part #188015111

The manufacturer no longer makes this part, and there's no substitute part

Plate 416639401
#5

Left cabinet diagram

Plate

Part #416639401

Replaced by #416639401

?
Manufacturer substitution
This part replaces 416639401. Substitute parts can look different from the original.
$19.66
In Stock
Holder Usb 416637701
#151

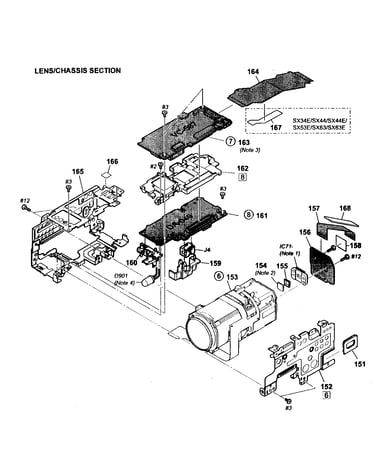

Lens assy diagram

Holder usb

Part #416637701

Replaced by #416637701

?
Manufacturer substitution
This part replaces 416637701. Substitute parts can look different from the original.
$15.95
In Stock
Harness 178082011
#BH9

Back cabinet diagram

Harness

Part #178082011

Replaced by #178082011

?
Manufacturer substitution
This part replaces 178082011. Substitute parts can look different from the original.
$19.64
In Stock
Frame Assembly X25415651
#165

Lens assy diagram

Frame assembly

Part #X25415651

Replaced by #X25415651

?
Manufacturer substitution
This part replaces X25415651. Substitute parts can look different from the original.
$21.63
In Stock
Lcd Plate 416644801
#204

Right cabinet diagram

Lcd plate

Part #416644801

Replaced by #416644801

?
Manufacturer substitution
This part replaces 416644801. Substitute parts can look different from the original.
$15.95
In Stock
Cabinet Assembly A1759824A
#4

Left cabinet diagram

Cabinet assembly

Part #A1759824A

Replaced by #A1759824A

?
Manufacturer substitution
This part replaces A1759824A. Substitute parts can look different from the original.
$51.54
In Stock
