RotoZip
Rotary Tool

Model # SCS01 TYPE 1 Official RotoZip rotary tool

Here are the diagrams and repair parts for Official RotoZip SCS01-TYPE-1 rotary tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Ac Cord SC707
#5

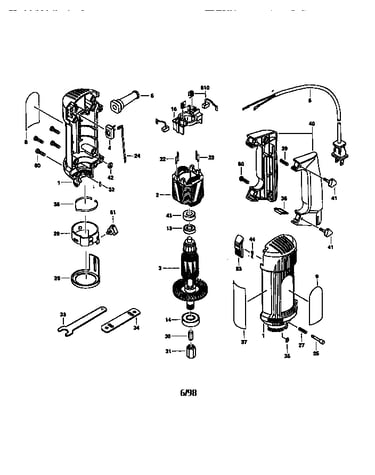

Unit parts diagram

Ac cord

Part #SC707

The manufacturer no longer makes this part, and there's no substitute part

Holder SC704
#16

Unit parts diagram

Holder

Part #SC704

The manufacturer no longer makes this part, and there's no substitute part

Guide Kit SCBASE

#NI

All parts diagram

Guide kit

Part #SCBASE

The manufacturer no longer makes this part, and there's no substitute part

Stator/fie SC712
#2

Unit parts diagram

Stator/fie

Part #SC712

The manufacturer no longer makes this part, and there's no substitute part

Knob SC708
#61

Unit parts diagram

Knob

Part #SC708

The manufacturer no longer makes this part, and there's no substitute part

Rubber Pin SC733
#32

Unit parts diagram

Rubber pin

Part #SC733

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut SC701
#31

Unit parts diagram

Collet nut

Part #SC701

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief RTM727
#6

Unit parts diagram

Strain relief

Part #RTM727

The manufacturer no longer makes this part, and there's no substitute part

Holder SC715
#34

Unit parts diagram

Holder

Part #SC715

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring SC732
#35

Unit parts diagram

Retaining ring

Part #SC732

The manufacturer no longer makes this part, and there's no substitute part
